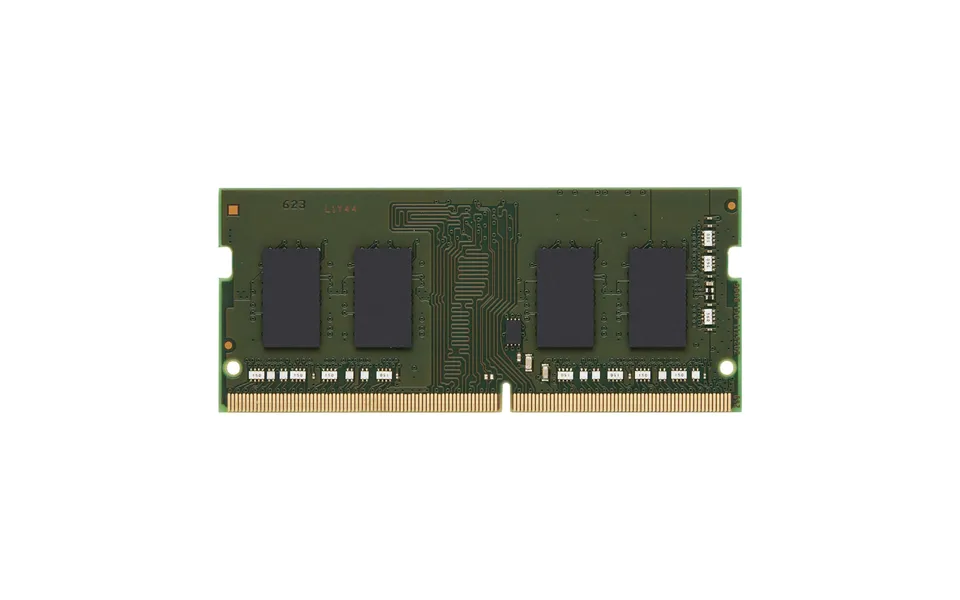

Power supply: vdd 1.2V typical vddq 1.2V typical vpp 2.5V typical vddspd 2.2V to 3.6V nominal and dynamic on-die termination odt for data, strobe, and mask signals low-power auto self refresh lpasr data bus inversion dbi for data bus on-die vrefdq generation and calibration single-rank on-board i2 serial presence-detect spd eeprom 16 internal banks 4 groups of 4 banks each fixed burst chop bc of 4 and burst length bl of 8 via the mode register set mrs selectable bc4 or bl8 on-the-fly otf fly-by topology terminated control command and address bus pcb: height 1.18 30.00Mm rohs compliant and halogen-free valueram's kvr32s22s8 16 is a 2g x 64-bit 16gb ddr4-3200 cl22 sdram synchronous dram , 1rx8, non-ecc, memory module, based on eight 2g x 8-bit fbga components. The spd is programmed to jedec standard latency ddr4-3200 timing of 22-22-22 at 1.2V. This 260-pin dimm uses gold contact fingers. Features country of origin taiwan memory data transfer rate 3200 mt s cas latency 22 ecc no memory form factor 260-pin so-dimm component for laptop internal memory type ddr4 memory layout modules x size 1 x 16 gb internal memory 16 gb buffered memory type unregistered unbuffered general product family valueram weight & dimensions height 30 mm width 69.6 Mm logistics data harmonized system hs code 84733020 leaflet
Brand: Kingston Technology
Power supply: vdd 1.2V typical vddq 1.2V typical vpp 2.5V typical vddspd 2.2V to 3.6V nominal and dynamic on-die termination odt for data, strobe, and
