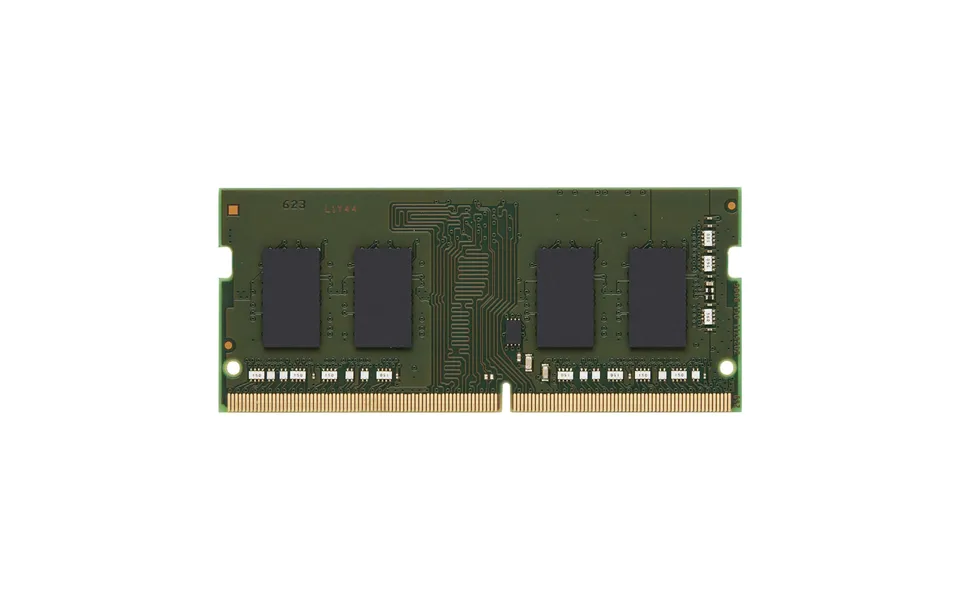

Nominal and dynamic on-die termination odt for data, strobe, and mask signals low-power auto self refresh lpasr data bus inversion dbi for data bus on-die vrefdq generation and calibration dual-rank on-board i2 serial presence-detect spd eeprom fixed burst chop bc of 4 and burst length bl of 8 via the mode register set mrs selectable bc4 or bl8 on-the-fly otf terminated control command and address bus valueram, kingston’s industry standard memory, delivers award-winning performance and legendary kingston reliability. When you know what you want, you want valueram. Features jedec standard yes country of origin taiwan programming power voltage vpp 2.5 V row active time 32 ns refresh row cycle time 350 ns row cycle time 45.75 Ns memory voltage 1.2 V memory data transfer rate 3200 mt s cas latency 22 ecc no memory form factor 260-pin so-dimm component for laptop internal memory type ddr4 memory layout modules x size 1 x 32 gb internal memory 32 gb buffered memory type unregistered unbuffered operational conditions storage temperature t-t -55
100 C operating temperature t-t 0
85 C general product family valueram technical details compliance certificates rohs sustainability doesn't contain halogen weight & dimensions height 30 mm depth 3.7 Mm width 69.6 Mm logistics data harmonized system hs code 84733020 leaflet
Brand: Kingston Technology
Nominal and dynamic on-die termination odt for data, strobe, and mask signals low-power auto self refresh lpasr data bus inversion dbi for data bus on-die
