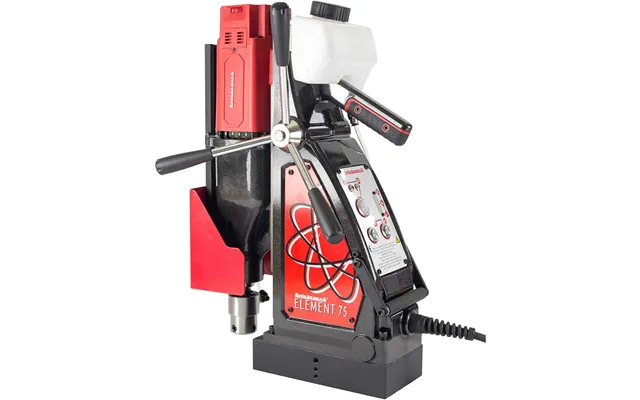

Designed for heavy duty operations, the element 75 is nonetheless a compact and portable machine when compared to other mag drills in its class. A dual motor protection helps to ensure a long operational life and protects against excessive wear, while the intuitive control panel means that even inexperienced mag drill operators will be able to maintain optimum working conditions while using the tool. The element 75 has two gears and forward reverse functionality, along with an integrated coolant supply system. Features and benefits suitable for drilling up to 75mm diameter holes to a depth of 75mm left- or right-hand rotation smaller and more portable than other machines in its class dual motor protection system for longer lifetime cutsmart
Primary motor protection variable speed
Secondary motor protection powerful 1800w motor high performance 2 speed gearbox internal motor cable ergonomic carry handle quick release capstan arm 3 morse taper arbor high powered 18,500n magnet optional swivel base mounted coolant bottle intuitive control panel specifications voltage: 240v motor specification: 1800w no load rpm low gear: 70 -180 rpm no load rpm high gear: 200-500 rpm max hole cutting capacity: 75 x 75mm deep 26mm with mt drill magnetic adhesion: 18,500n magnet size: 220mm x 114mm safety features: cutsmart technology fixed guard magnetic detection mechanical clutch machine weight: 23kg contents rotabroach element 75 magnetic drilling machine internal coolant system arbor as...
Brand: Rotabroach
