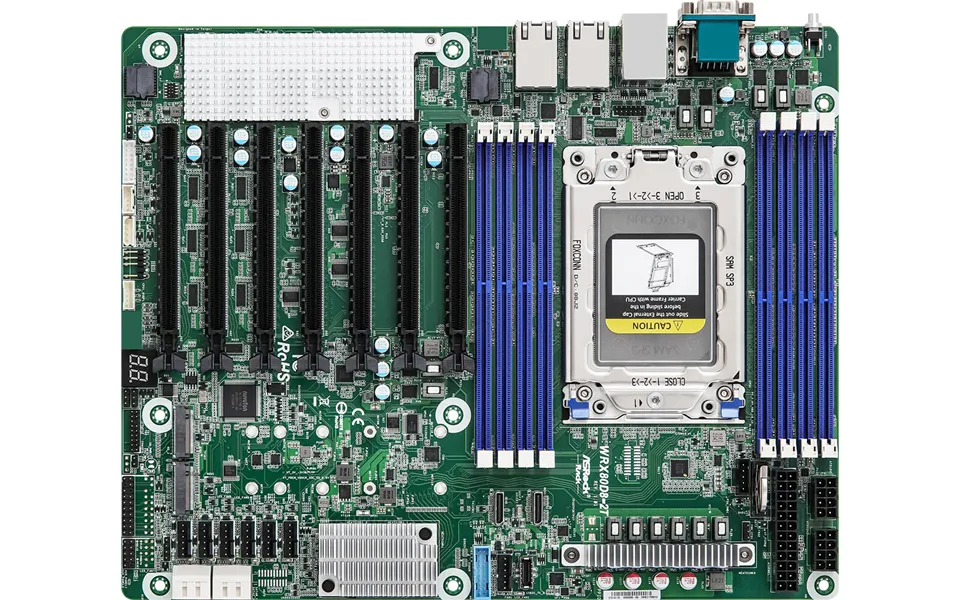

Atx 12 x 9.6 Supports amd ryzen threadripper pro 5000wx 3000wx 8 dimm slots 1dpc , supports ecc non-ecc udimm, rdimm, lrdimm, rdimm-3ds 7 pcie4.0 X16 2 oculink pcie4.0 X4 or 4 sata 6gb s supports 2 m.2 Pcie4.0 X4 12 sata 6gb s 2 rj45 10gbe by intel x710-at2 remote management ipmi specifications physical status form factor atx dimensions 12' x 9.6' 305 Mm x 244 mm processor system cpu supports amd ryzen threadripper pro 5000wx 3000wx socket single socket swrx8 lga4094 chipset amd wrx80 system memory supported dimm quantity 8 dimm slots 1dpc supported type supports ddr4 288-pin ecc non-ecc udimm, rdimm, lrdimm, rdimm-3ds max. Capacity per dimm ecc non-ecc udimm, rdimm, lrdimm: up to 128gbrdimm-3ds*: up to 256gb*rdimm-3ds max. Memory capacity is to be validated max. Dimm frequency ecc non-ecc udimm, rdimm, lrdimm, rdimm-3ds*: max. 3200Mhz*rdimm-3ds max. Memory frequency is to be validated voltage 1.2V pcie expansion slots slot7 close to cpu pcie x 16 slot7: pcie4.0 X16 cpu slot6: pcie4.0 X16 cpu slot5: pcie4.0 X16 cpu slot4: pcie4.0 X16 cpu slot3: pcie4.0 X16 cpu slot2: pcie4.0 X16 cpu slot1: pcie4.0 X16 cpu other pcie expansion connectors m.2 Slot 2 m-key pcie4.0 X4 , supports 22110 2280 2260 2242 2230 form factor fch oculink 2 oculink pcie4.0 X4 or 4 sata 6gb s fch sata sas storage pch built-in storage amd wrx80 12 sata 6gb s :2 oculink, 4 sata 7-pin ethernet additional gbe controller intel x710-at2: 2 rj45 10gbe server management bmc controller aspeed ast2500 ipmi dedicat...
