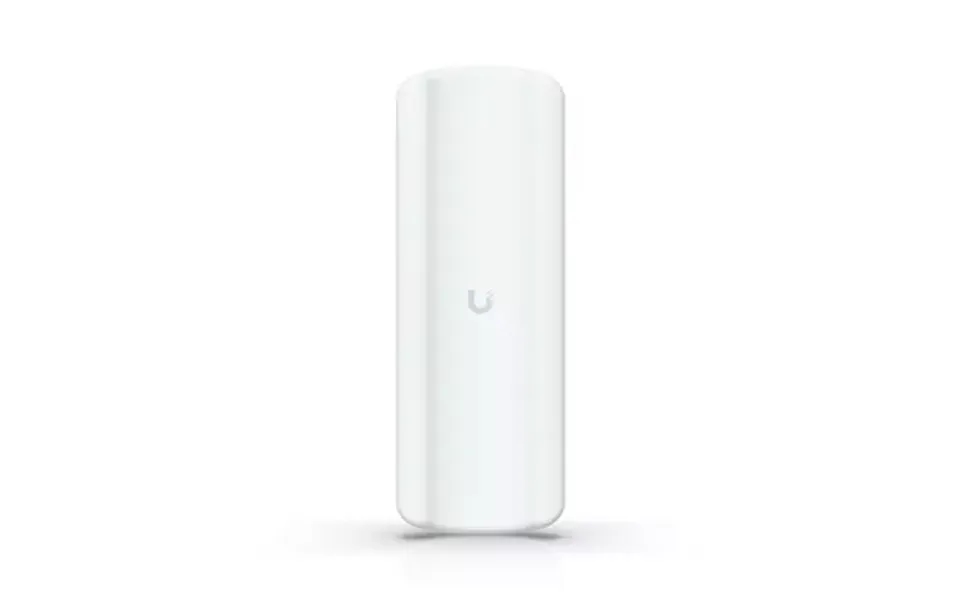

Device bridge pro sector
5 Ghz point-to-multipoint access point that wirelessly bridges 40 device bridge pro clients at 5 km distances.
Overview
Dimensions
360.9 X 129.6 C 71.4 Mm
14.2 X 5.1 X 2.8
Wifi standard
Wifi 5
Spatial streams
2
Coverage area
5 Km 3.1 Mi
Mounting locations
Pole
Weatherproofing
Ipx6
Power method
Poe
Performance
Mimo
5 Ghz
2 X 2
Max. Data rate
5 Ghz
400 Mbps bw40
Antenna gain
5 Ghz
17 Dbi
Max. Tx power
5 Ghz
25 Dbm
Max. Conducted tx power
25 Dbm combined
Supported data rates
802.11Ac wifi 5
6.5 Mbps to 400 mbps mcs0
Mcs9 nss1 2 vht 20 40
802.11N
6.5 Mbps to 300 mbps mcs0
Mcs15 ht 20 40
802.11A
6 9 12 18 24 36 48 54 Mbps
Wireless security
Wpa2 aes
Hardware
Max. Power consumption
6W
Supported voltage range
42.5 57V dc
Networking interface
1 Gbe rj45 port
Antennas
Internal
Management
Ethernet
Wifi
Channel bandwidth
20 40 Mhz
Wind loading
128.2N at 200 km h
Weight
Device: 782 g 1.7 Lb
With mount: 835 g 1.8 Lb
Enclosure material
Uv-stabilized polycarbonate
Mount material
Uv-stabilized polycarbonate stainless steel
Pole mount diameter
0.9 2.4 24 60 Mm
Button
1 Factory-reset
Leds
System
Power ethernet
Ndaa compliant
Yes
Certifications
Ce fcc ic
Ambient operating temperature
-40 To 60c -40 to 140f
Ambient operating humidity
5 To 95% noncondensing
