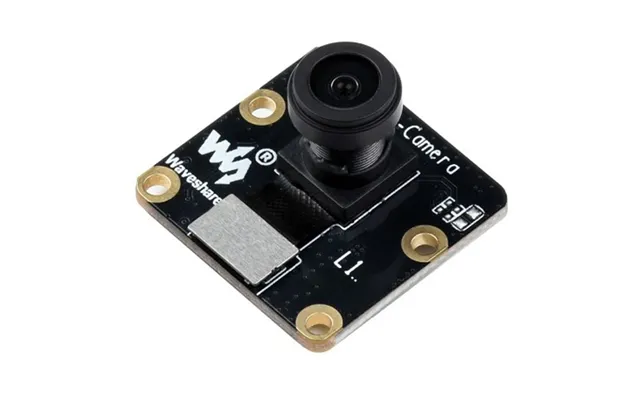

Waveshare Ov9281-120 1mp Mono Camera Module For Raspberry Pi, Global Shutter, Ov9281-120 Module - Ov9281-120 Module

1. 1Mp, global shutter, 120 degree fov, ov9281-120 mono camera, compatible with raspberry pi series boards 2. The global shutter eliminates jello-effect while shooting fast moving objects, more suitable for high frame rate capturing 3. Working with raspberry pi, direct connect to raspberry pi different variants including 4b 3b 3a 3b 2b b a , extra fpc cable is equired for zero zero 2 w series specifications: 1. Sensor: ov9281 2. Cmos size: 1 4 inch 3. Camera type: mono 4. Pixels: 1mp 1280 x 800 5. Shutter: global shutter 6. Aperture: f2.5 7. Distortion: less than 7.5% 8. Field of vies: 120 degree 9. Focal length: 3.15Mm 10. Focusing: fixed focus package list: 1. Ov9281-120 camera x 1 2. 15-Pin ffc opposite sides contact x 1specification: package weight one package weight 0.07Kgs 0.16Lb one package size 15cm * 12cm * 2cm 5.91Inch * 4.72Inch * 0.79Inch qty per carton 200 carton weight 14.00Kgs 30.86Lb carton size 42cm * 32cm * 32cm 16.54Inch * 12.6Inch * 12.6Inch loading container 20gp: 620 cartons * 200 pcs 124000 pcs40hq: 1439 cartons * 200 pcs 287800 pcs

1. 1Mp, global shutter, 120 degree fov, ov9281-120 mono camera, compatible with raspberry pi series boards 2. The global shutter eliminates jello-effect while shooting fast
