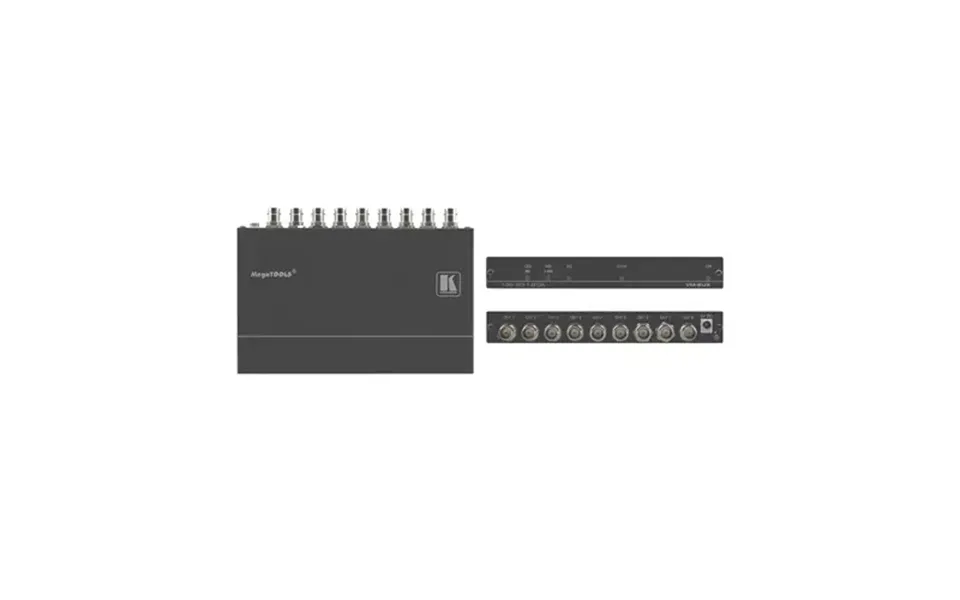

1:8 12G sdi distribution amplifier blk vm 8ux is a compact and high performance 1:8 4k distributor for standard broadcast grade sdi signals of up to 12g transmitted data rate. It auto adapts to data rate of one sdi input signal equalizes and re clocks the signal to improve transmitted signal reach and distributes the signal to eight identical sdi outputs.
Reliable wire connectivity coaxial broadcast grade cables are reliably connected via lockable bnc connectors preventing unintentional wire disconnections to gain fast and highly professional uncompressed sdi signals distribution deployments.
Extended reach input extension input signal equalization and output signals reclocking to gain extended reach signal extension. Using kramer high quality coaxial sdi cables supports extension of up to 300m 984ft for sd signals 200m 656ft for 1.5G hd signals 100m 328ft for 3g and 6g hd signals 80m 260ft for 12g 4k signals.
Note: reach depends on signal resolution and quality of copper cable used. Reach extension performance may vary while using non kramer coaxial cables.
Transmitted data rate auto adapting from 270mbps to 12gbps data rates.
Compliance complies with smpte 259m sd sdi 292m hd sdi 344m ed sdi 424m 3g hd sdi st 2081 6g sdi and st 2082 12g sdi standards.
Max. Resolution 4k 60hz 4:2:2 30bpp.
Sdi signal transmission sdi hd sdi 3g hd sdi 6g and 12g sdi compliant signals supporting pass through of standard embedded audio channels with ancillary id and metadata information.
Led...
