Adaptec 82885t Internal 12000 Mbit S

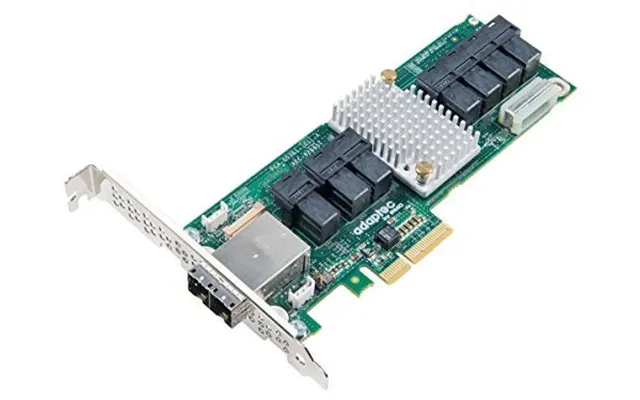

Wired pci express 12000 mbit s internal the 12gb s adaptec 82885t sas expander card offers a scalable connectivity fan-out option for additional drives when used in conjunction with a sas raid adapter or sas hba. The 82885t sas expander card offers 36 ports in a low-profile md2 form factor with 28 internal ports for connection to a sas adapter and or sas or sata drives and 8 external ports for optional connections to external jbods or a sas adapter.Lexibility of configurationthe 82885t mounts internally to any available pcie slot, away from the backplane, and features mini-sas hd connectors out the top for added cabling flexibility in dense server environments. The 82885t enables a low cost drive expansion solution when mated with a raid adapter or hba. The expander draws power from the pcie slot requires 4 or more lanes , but there is no data transfer to the slot. Alternatively, power can also be supplied to the expander card through a standard 4-pin auxiliary power connector.Enclosure management supportthe 82885t supports sgpio and ses2 enclosure management, allowing enclosure information to be routed from all daisy-chained 82885t cards to the hba or raid adapter. All device and slot mapping information is provided to the hba or raid adapter by the last 82885t card in the chain.Universal compatibility with existing storage infrastructurethe 82885t is fully compatible with adaptec series 8, series 7 and series 6 12gb s and 6gb s raid adapters and hbas, allowing for a sea...
