Lenovo 4xc1d51447 Network Card Internal Wwan 600 Mbit S

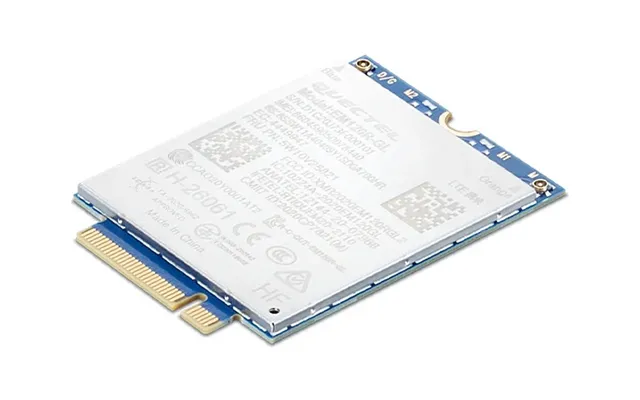

Size: 42*30*2.3Mm weight: approx. 6.8 G pci express m.2 Interface main and rx-diversity gnss antenna connectors 2 × 2 mimo in dl direction data rate: up to 600 mbps downlink 150 mbps uplink thinkpad quectel sdx24 em120r-gl cat12 wwan module i is a wireless communication module with receive diversity. It helps provide data connectivity and network with standard pci express m.2 Interface. With downlink speed of up to 600 mbps and uplink speed of up to 150 mbps, the cat12 wwan module enhances the network reliability and availability of your thinkpad, and provides a great cellular solution for travelers to sustain mobility while using pc devices. Ports & interfaces interface wwan host interface m.2 Connectivity technology wired network maximum data transfer rate 600 mbit s design certification ce,fcc,anatel,telec&jate,rcm sdoc,kc,ncc,ic, icasa, ifetel component for laptop internal yes operational conditions operating relative humidity h-h 5 95% Operating temperature t-t -25 75 C weight & dimensions weight 6.8 G height 2.3 Mm depth 30 mm width 42 mm packaging data package weight 70 g package height 177 mm package depth 144 mm package width 53 mm logistics data harmonized system hs code 85176990

Size: 42*30*2.3Mm weight: approx. 6.8 G pci express m.2 Interface main and rx-diversity gnss antenna connectors 2 × 2 mimo in dl direction data rate:
