Lenovo 4xc1q24434 Network Card Internal Wwan

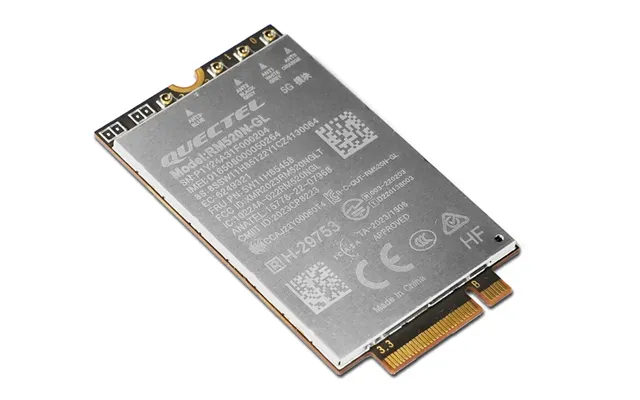

A 5g nr lte-fdd lte-tdd umts hspa wireless communication module with receive diversity supports embedded operating systems, such as windows, linux and android provides gnss function and optional esim function pci express m.2 Interface compliant with iso iec 7816-3 and mipi, etc dimension: 30 mm x 52 mm x 1.5 Mm weight: approx. 8.7 G thinkpad quectel rm520n-gl 5g m.2 Wwan module for x1 carbon gen 12 t14 gen 5 is a 5g nr lte-fdd lte-tdd umts hspa wireless communication module with receive diversity. It provides data connectivity on 5g nr sa and nsa, lte-fdd, lte-tdd, dc-hsdpa, hspa , hsdpa, hsupa and wcdma networks. Rm520n-gl is a standard m.2 Key-b wwan module. Ports & interfaces connectivity technology wireless host interface m.2 Interface wwan network mobile network generation 5g design internal yes component for laptop antenna design internal certification ncc anatel srrc nal ccc ce fcc ic rcm ptcrb gcf kc jate telec nbtc imda icasa compatible products thinkpad p14 series-p14s amd g5thinkpad t14 series-t14 amd g5thinkpad t14 series-t14 g5thinkpad x1 series-x1 carbon g12 system requirements windows operating systems supported windows 10, windows 11 operational conditions operating temperature t-t -40 75 C storage temperature t-t -40 90 C operating relative humidity h-h 5 95% Weight & dimensions width 52 mm depth 30 mm height 2.3 Mm weight 8.7 G packaging data package width 53 mm package depth 144 mm package height 177 mm package weight 30 g

A 5g nr lte-fdd lte-tdd umts hspa wireless communication module with receive diversity supports embedded operating systems, such as windows, linux and android provides gnss
