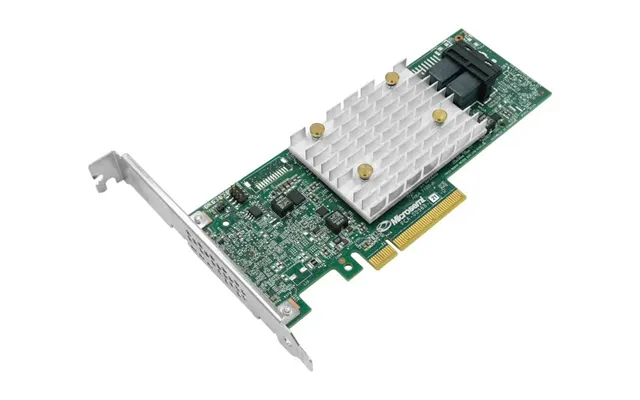

Microchip Technology Hba 1100-8i Interface Cards Adapter Internal Mini-sas Hd

Internal host interface: pcie output interface: mini-sas hd the 12 gbps adaptec hba 1100-8i host bus adapter has 8 internal sas sata ports in a x8 pcie gen 3 low-profile, md2 form factor. Quality and reliability are assured through the unified hardened smart storage stack, now deployed to over 30 million servers. Built on the microchip smartioc 2100 sas sata protocol controller, hba 1100-8i adapters can aggregate the performance of devices to the limits of the pcie gen 3 host bus at 6.6 Gbps, and achieve up to 1.5M iops without additional overhead or latency. The hba 1100 adapters also have 40 percent power savings compared to previous generations, and significant power advantages versus competing solutions. The hba 1100, with its broad operating system support and ecosystem compatibility, is easy to implement and scale, and the unified maxview management tools and drivers across the microchip hba, raid, and expander solutions enable easy manageability across the entire product line. Hba 1100 adapters are ideal solutions that support sas sata hdds, tape devices, and ssds.Visit adaptec support for firmare, drivers, and documentation. Ports & interfaces internal mini-sas hd ports 2 expansion card standard pci 3.0 Expansion card form factor low-profile output interface mini-sas hd host interface pcie design certification ce, fcc, ul, c-tick, vcci, kcc, cns hot-plug support yes mean time between failures mtbf 1360000 h internal yes features native command queuing ncq yes buil...
