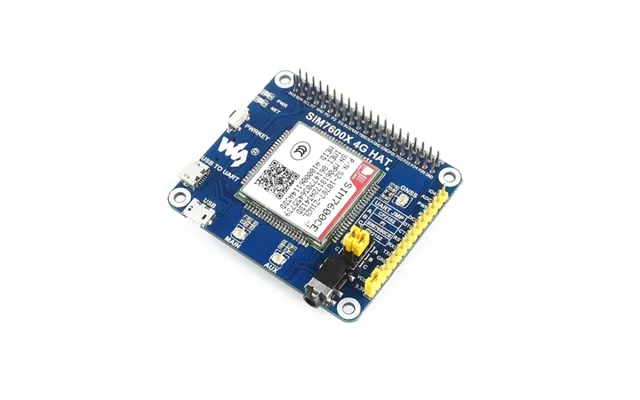

Overview1. The sim7600a-h 4g hat is a 4g communication and gnss positioning module, which supports lte cat4 up to 150mbps for downlink data transfer. It is pretty low power consumption. 2. You can connect this 4g module with computer to surf the internet, or attach it onto raspberry pi to enable functions like 4g high speed connection, wireless communication, making telephone call, sending sms, global positioning, etc.Applicable region1. Sim7600a-h is mainly applicable in north america us, ca, mx , sim7600e-h is mainly applicable in southeast asia, west asia, europe, africa, sim7600ce-t is mainly applicable in china. 2. Please check the supported bands according to your local service provider, select the proper one when placing order.Features1. Raspberry pi connectivity, compatible with raspberry pi zero zero w zero wh 2b 3b 3b 2. Support dial-up, telephone call, sms, mms, mail, tcp, udp, dtmf, http, ftp, etc. 3. Support gps, beidou, glonass, lbs base station positioning 4. Onboard usb interface, to test at commands, get gps positioning data, and so on 5. Onboard cp2102 usb to uart converter, for serial debugging 6. Breakout uart control pins, to connect with host boards like arduino stm32 7. Sim card slot, supports 1.8V 3v sim card 8. Onboard audio jack and audio decoder for making telephone call 9. 2X led indicators, easy to monitor the working status 10. Onboard voltage translator, operating voltage can be configured to 3.3V or 5v via jumper 11. Baudrate: 30...
InStock.netWebDelivery 1-4 days£ 48.99
