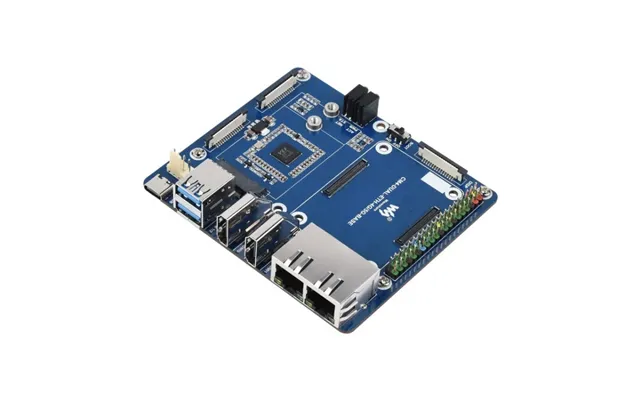

Waveshare Dual Gigabit Ethernet 5g 4g Base Board For Raspberry Pi Cm4

Specifications1. Cm4 socket: suitable for all variants of compute module 4 2. Network: Ethernet: dual gigabit ethernet rj45 M.2 B key, for connecting 5g 4g module Nano-sim card slot, supports standard nano-sim card for 5g 4g 3g 2g communication 3. Usb 3.2 Gen1 x 2 4. Pin header: raspberry pi 40pin gpio headerx 1 5. Display: mipi dsi port 15pin 1.0Mm fpc connector 6. Camera: mipi csi-2 port x 2 15pin 1.0Mm fpc connector 7. Video: hdmi x 2, supports 4k 30fps output 8. Rtc: real-time clock with battery socket and ability to wake compute module 4 9. Storage: microsd card socket for compute module 4 lite without emmc variants 10. Fan header: 5v 12v 12v by default , allows speed adjustment and measurement 11. Power input: 5v 2.5A 12. Size: 99.6 X 87.0Mmspecification: package weight one package weight 0.09Kgs 0.21Lb one package size 15cm * 12cm * 2cm 5.91Inch * 4.72Inch * 0.79Inch qty per carton 200 carton weight 17.80Kgs 39.24Lb carton size 46cm * 32cm * 32cm 18.11Inch * 12.6Inch * 12.6Inch loading container 20gp: 566 cartons * 200 pcs 113200 pcs40hq: 1314 cartons * 200 pcs 262800 pcs
