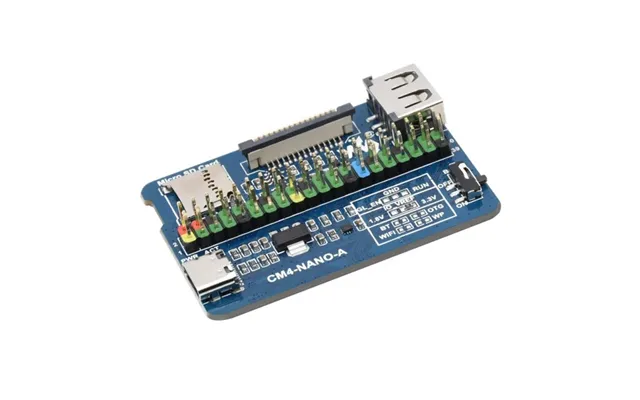

Waveshare Nano Base Board A For Raspberry Pi Cm4, Nano Base Board A - Nano Base Board A

1. Base board for compute module 4 lite emmc 2. Standard cm4 socket, with multiple peripheral interfaces, suitable for narrow application environment specifications: 1. Cm4 socket: suitable for all variants of compute module 4 2. Connector: raspberry pi 40pin gpio interface x 1 3. Usb: usb 2.0 Type a interface x 1 4. Camera: mipi csi-2 port x 1 15pin 1.0Mm fpc connector 5. Storage: micro sd card socket for compute module 4 lite without emmc variants 6. Power: 5v 7. Size: 55 x 40mm package list 1. Cm4-nano-a x1 2. 2 X 20pin color-coded straight pinheader x 2specification: package weight one package weight 0.03Kgs 0.07Lb one package size 15cm * 12cm * 1cm 5.91Inch * 4.72Inch * 0.39Inch qty per carton 300 carton weight 7.00Kgs 15.43Lb carton size 42cm * 32cm * 32cm 16.54Inch * 12.6Inch * 12.6Inch loading container 20gp: 620 cartons * 300 pcs 186000 pcs40hq: 1439 cartons * 300 pcs 431700 pcs
