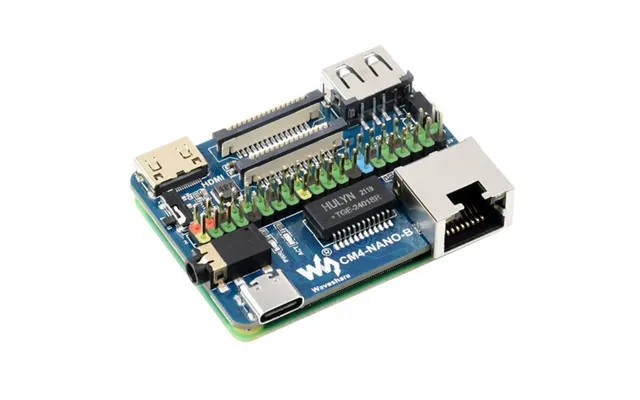

Waveshare Nano Base Board B For Raspberry Pi Cm4, Nano Base Board B - Nano Base Board B

1. Suitable for evaluating the raspberry pi cm4 or being integrated into end products 2. Standard cm4 socket, 40pin gpio, gigabit ethernet, usb2.0, Dsi, csi, 3.5Mm audio jack... 3. All in the compact body just as the size of cm4 specifications: 1. Cm4 socket: suitable for all variants of compute module 4 2. Networking: gigabit ethernet rj45 connector 3. Connector: raspberry pi 40pin gpio header x 1 4. Usb: usb 2.0 Type a connector x 1 5. Display: mipi dsi port x 1 15pin 1.0Mm fpc connector 6. Camera: mipi csi-2 port x 1 15pin 1.0Mm fpc connector 7. Video: mini hdmi port x 1, supports 4k 30fps output 8. Audio: 3.5Mm jack 9. Storage: micro sd card socket for compute module 4 lite without emmc variants 10. Power input: 5v 11. Dimension: 56 x 41mm package list: 1. Cm4-nano-b x 1 3. 2*20Pin color-coded straight pinheader x 1specification: package weight one package weight 0.04Kgs 0.09Lb one package size 15cm * 12cm * 2cm 5.91Inch * 4.72Inch * 0.79Inch qty per carton 300 carton weight 8.00Kgs 17.64Lb carton size 42cm * 32cm * 32cm 16.54Inch * 12.6Inch * 12.6Inch loading container 20gp: 620 cartons * 300 pcs 186000 pcs40hq: 1439 cartons * 300 pcs 431700 pcs
