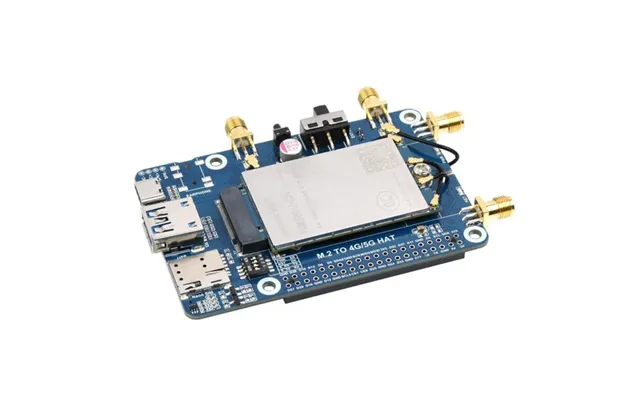

Features1. Comes with rm500u-cn core module, supports 5g and lte-a multi network types, supports 5g nsa and sa networking 2. Integrates extensive network protocols, with multi drivers and software support, compatible with different os including windows linux android 3. Usb 3.1 Port usb 2.0 Compatible for connecting to pc, raspberry pi, or jetson nano host board to enable high speed 5g communication 4. Standard m.2 B key slot, compatible with different 5g modules: rm500u-cn rm500q-cn rm500q-gl series 5. Onboard uart, pwr, and rst control pin, built-in voltage level translator, enabled via dip switch, for use with hosts like raspberry pi or arduino 6. Onboard usb-c connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply 7. Onboard power supply on off switch, reset button and led indicator, easy to turn on off the module or monitor the operating status 8. 2X sim card slot, dual card single standby, switchable via at command 9. High efficiency power supply circuit, up to 3a output currentspecificationsfrequency band: 1. 5G:
5G nr: 3gpp release 15 nsa sa operation, sub-6 ghz
5G nr nsa: n41, n78, n79
5G nr sa: n1, n28, n41, n77, n78, n79
Downlink: 4 x 4 mimo n1, n41, n77, n78, n79 2. Lte:
Lte category: downlink cat 12, uplink cat 13
Lte-fdd: b1, b2, b3, b5, b7, b8, b20, b28
Lte-tdd: b34, b38, b39, b40, b41
Downlink 2 x 2 mimo: b1, b2, b3, b5, b7, b8, b20, b28, b34, b38, b39, b40, b41 3. Um...
InStock.netWebDelivery 1-4 days | Cost: £ 4£ 145.99
