Kingston Technology 32gb 5600mt S Ddr5 Ecc Reg Cl46 Dimm 2rx8 Micron H

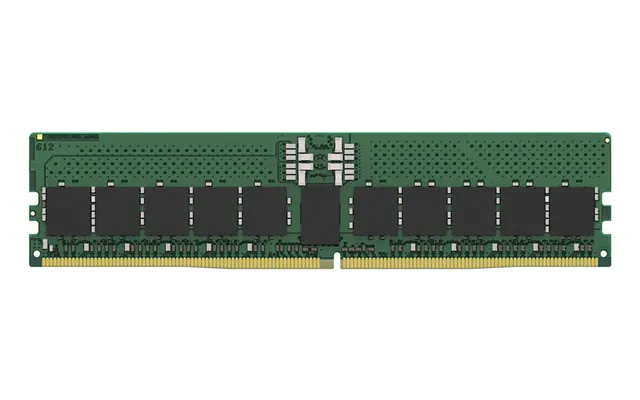

Server 32 gb ddr5 5600 mt s 288-pin dimm 1 x 32 gb cas latency: 46 1.1 V ecc kingston's ksm56r46bd8-32mh is a 4g x 80-bit 32gb ddr5-5600 cl46 sdram synchronous dram , 2rx8, ecc, memory module, based on twenty 2g x 8-bit fbga components.The spd is programmed to jedec standard latency ddr5-5600 timing of 46-45-45 at 1.1V. Each 288-pin dimm uses gold contact fingers. Features buffered memory type registered buffered internal memory 32 gb memory layout modules x size 1 x 32 gb internal memory type ddr5 component for server memory form factor 288-pin dimm ecc yes on-die ecc yes cas latency 46 memory data transfer rate 5600 mt s memory ranking 2 memory voltage 1.1 V module configuration 4096m x 80 row cycle time 48 ns refresh row cycle time 295 ns row active time 32 ns row precharge time trp 16 spd profile yes jedec standard yes operational conditions operating temperature t-t 0 95 C storage temperature t-t -55 100 C technical details compliance certificates rohs weight & dimensions width 133.3 Mm height 31.2 Mm leaflet
