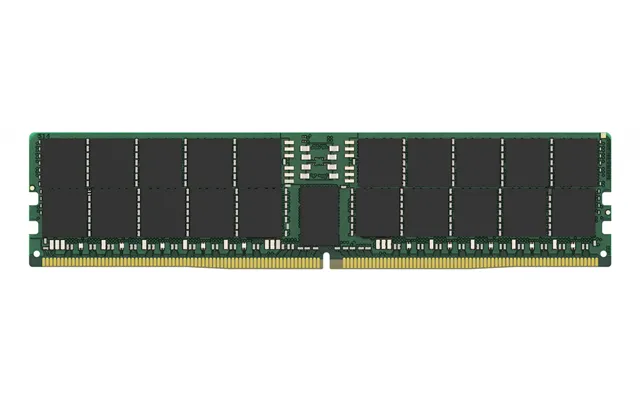

Kingston Technology 64gb Ddr5 6400mt S Ecc Registered Dimm

Power supply: vdd 1.1V typical vddq 1.1V typical vpp 1.8V typical vddspd 1.8V to 2.0V on-die ecc x80 ecc x40, 2 independent i o sub channels 32 internal banks hard soft post package repair sideband access with i3c i2c pcb: height 1.23 31.25Mm rohs compliant and halogen-free kingston's ksm64r52bd4-64md is a 8g x 80-bit 64gb ddr5-6400 cl52 sdram synchronous dram , 2rx4, ecc, memory module, based on forty 4g x 4-bit fbga components. The spd is programmed to jedec standard latency ddr5-6400 timing of 52-52-52 at 1.1V. Each 288-pin dimm uses gold contact fingers. Features jedec standard yes lead plating gold spd profile yes programming power voltage vpp 1.8 V row precharge time trp 16 row active time 32 ns refresh row cycle time 295 ns row cycle time 48 ns memory voltage 1.1 V memory ranking 1 memory data transfer rate 6400 mt s cas latency 52 on-die ecc no ecc yes memory form factor 288-pin dimm component for server internal memory type ddr5 memory layout modules x size 1 x 16 gb internal memory 16 gb buffered memory type registered buffered operational conditions storage temperature t-t -55 100 C operating temperature t-t 0 95 C technical details compliance certificates rohs sustainability doesn't contain halogen weight & dimensions height 31.2 Mm width 133.3 Mm other features chips organisation 1rx8
