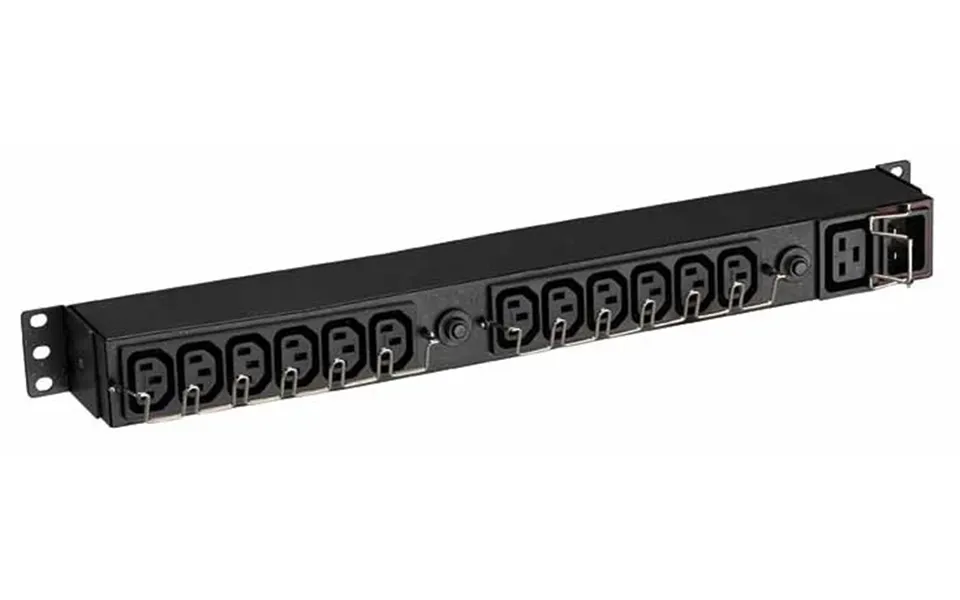

Single-phase basic 1u black 13 ac outlet s c13 coupler 3000 w these basic rack pdus are versatile, flexible power strips intended to provide more connection options when using rackmount upss. The flexpdu series is compatible with any ups below 3 kva and is the perfect power distribution option for the evolution, ex and m series while the high voltage pdus are compatible with the ex rt ups series. These pdus offer multiple mounting options for rack enclosures, wall mounting or connection at the rear of the ups. Design cable colour black product colour black mounting horizontal vertical rack capacity 1u rack mounting yes form factor rackmount type single-phase pdu types basic ports & interfaces output connections 12 x c13 & 1 x c19 ac outlet types c13 coupler power plug c20 coupler ac outlets quantity 13 ac outlet s power maximum power 3000 w maximum input current per phase 13 a load capacity 3000 va nominal output voltage 230 v maximum current 13 a ac input frequency 50
60 Hz nominal input voltage 230 v certificates certification ce compliance certificates rohs operational conditions operating temperature t-t 0
45 C weight & dimensions size imperial 48.3 Cm 19 weight 1.7 Kg height 43.4 Mm depth 58.5 Mm width 439 mm packaging content rack mount kit yes packaging data package height 58 mm package depth 448 mm package width 180 mm package weight 9.5 Kg leaflet manual pdf
