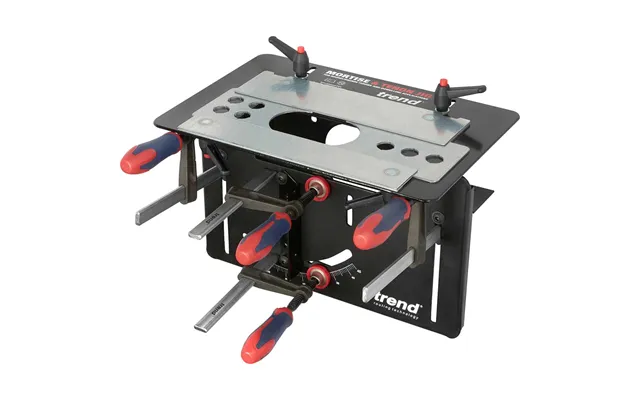

Trend Mortise And Tenon Jig

Enables mortise & tenons and dowel joints to be cut with a router. Ideal for cabinet, chair and table. Cnc precision manufactured plates and body. One set-up for both mortise and tenon giving perfectly fitting joints. Fully adjustable for compound angle joints up to 45 degree. Reversible templates to produce round and square end tenons. Templates can be used for accurate dowelling applications. Cuts mortise & tenon sizes of 1 4 inch 6.35Mm to 5 8 inch 15.9Mm . Guide bushes are included but cutters are required. A unibase may be required for certain makes & models of router. All tenons are cut with a 5 8 inch diameter straight cutter ref. C026 . The width of the tenon is adjusted by using different guide bush diameters. International pct appl no. Pct gb02 00253. Jig requires: a portable plunge router with 6.35 Mm 1 4 inch shank capacity. Contents: 5 x plastic guide bushes 15.9Mm, 22.2Mm, 28.6Mm, 30.2Mm & 31.8Mm 1 x metal guide bush 25.4Mm 4 x clamps 1 x guide bush collar 25.4Mm to 54mm 1 x set-up bar imperial scale
