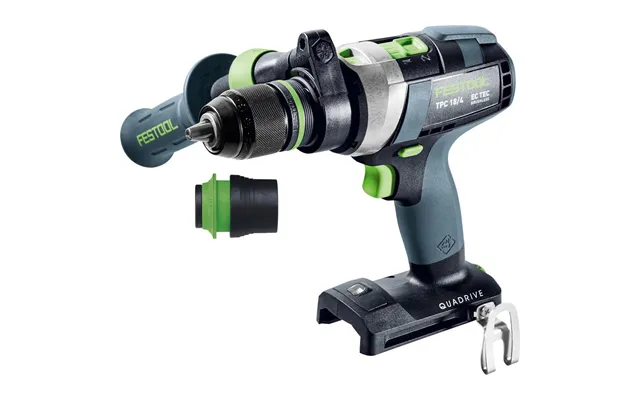

Powerful. Versatile. Designed for every application with four gears that provide exceptional control and performance. The festool tpc 18 4 quadrive takes drilling to the next level, featuring the most intuitive switching concept you have ever operated. Whether you’re working on wood, metal, or masonry, the switchable axial impact function delivers extra force when you need it most. Main applications production of wooden substructures, frame structures installation of doors and windows drilling and screwdriving in wood, metal and plastic drive screws into wood up to 10x300 mm drilling in wood up to 70 mm with forstner drill bits drilling with impact in brickwork or masonry specifications battery voltage rated voltage : 18v battery type: li-ion gears: 4 idling speed, 1st gear 2nd gear: 0
500 0
800 Min&sup-1 idling speed, 3rd 4th gear: 0
2350 0
3600 Min&sup-1 max. Number of strokes: 57,600.00 Min&sup-1 drilling diameter, wood steel: 70 13 mm drilling diameter in brickwork: 10.00 Mm torque adjustment 1st 2nd gear: 2
20 2
20 Nm max. Torque, wood steel: 50 75 nm chuck range: 1.5
13 Mm product weight without accessories: 1.2Kg transport weight incl. Accessories: 4.22Kg contents 1x festool tpc 18 4 quadrive 18v cordless brushless combi drill no battery no charger 1x systainer sys3 m 187 case 1x additional side-mounted hand grip 1x belt clip 1x pz2 drill bit 1x centrotec bh 60 ce imp magnetic bit holder 1x fastfix keyless chuck 13mm kc 13-1 2-mmfp wh-ce centrotec tool chuck
