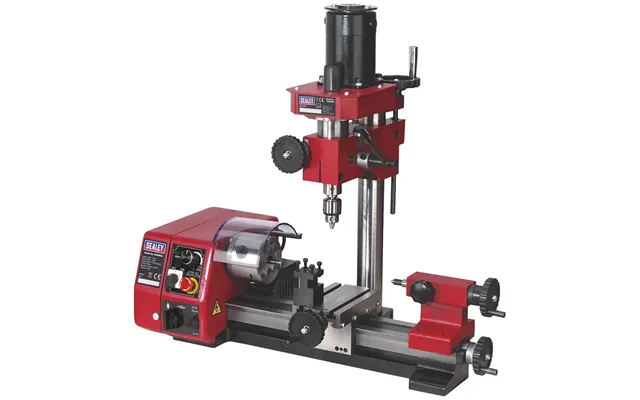

The sealey sm2503 is a bench-mounting multifunction machine combining mini lathe, milling and drilling capabilities in a single compact unit, designed for precision metalworking in workshops where space efficiency is essential. This versatile machine tool features variable speed control to accommodate different materials and operations, making it suitable for model engineers, toolmakers and maintenance workshops requiring multiple machining processes. Equipped with two separate 150w motors, the sm2503 operates the drill mill function independently from the lathe, allowing for dedicated power delivery to each machining operation. The lathe cutting feed offers both power-driven and manual advancement options, providing precise control for different turning applications. With metric graduated scales and all necessary setting tools included, this machine arrives ready for accurate workshop use. The drilling and milling head delivers spindle speeds from 100-1300rpm with 30mm travel and 10mm maximum capacity, whilst the lathe section provides 100-2000rpm spindle speed with 140mm swing over bed and 250mm between centres. Thread cutting capability is available with the optional thread cutting kit, covering five metric pitches from 0.5-1.25Mm. An optional stand model no. Sm3002st is available for operators preferring floor-mounted positioning. Features and benefits: dual 150w motor configuration for independent drill mill and lathe operation variable speed control on both function...
