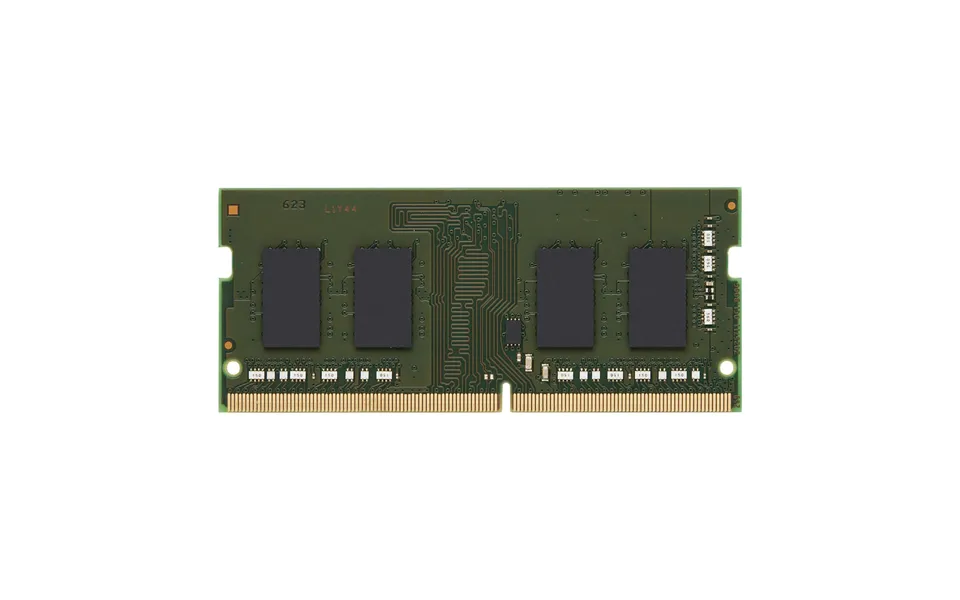

Power supply: vdd 1.2V typical. Vddq 1.2V typical. Vpp 2.5V typical. Vddspd 2.2V to 3.6V. Nominal and dynamic on-die termination odt for. Data, strobe, and mask signals. Low-power auto self refresh lpasr . Data bus inversion dbi for data bus. On-die vrefdq generation and calibration. Single-rank. On-board i2 serial presence-detect spd eeprom. 16 Internal banks 4 groups of 4 banks each. Fixed burst chop bc of 4 and burst length bl of 8. Via the mode register set mrs . Selectable bc4 or bl8 on-the-fly otf . Fly-by topology. Terminated control command and address bus. Pcb: height 1.18 30.00Mm . Rohs compliant and halogen-free. Valueram's kvr32s22s8 16 is a 2g x 64-bit 16gb ddr4-3200 cl22 sdram synchronous dram , 1rx8, non-ecc, memory module, based on eight 2g x 8-bit fbga components. The spd is programmed to jedec standard latency ddr4-3200 timing of 22-22-22 at 1.2V. This 260-pin dimm uses gold contact fingers.. Features. Country of origin. Taiwan. Memory data transfer rate. 3200 Mt s. Cas latency. 22. Ecc. No. Memory form factor. 260-Pin so-dimm. Component for. Laptop. Internal memory type. Ddr4. Memory layout modules x size . 1 X 16 gb. Internal memory. 16 Gb. Buffered memory type. Unregistered unbuffered . General. Product family. Valueram. Weight & dimensions. Height. 30 Mm. Width. 69.6 Mm. Logistics data. Harmonized system hs code. 84733020. Leaflet
Brand: Kingston Technology
Type: Memory Modules
Shipping Cost: DKK 0.00
Delivery Time: 3-5 working days
