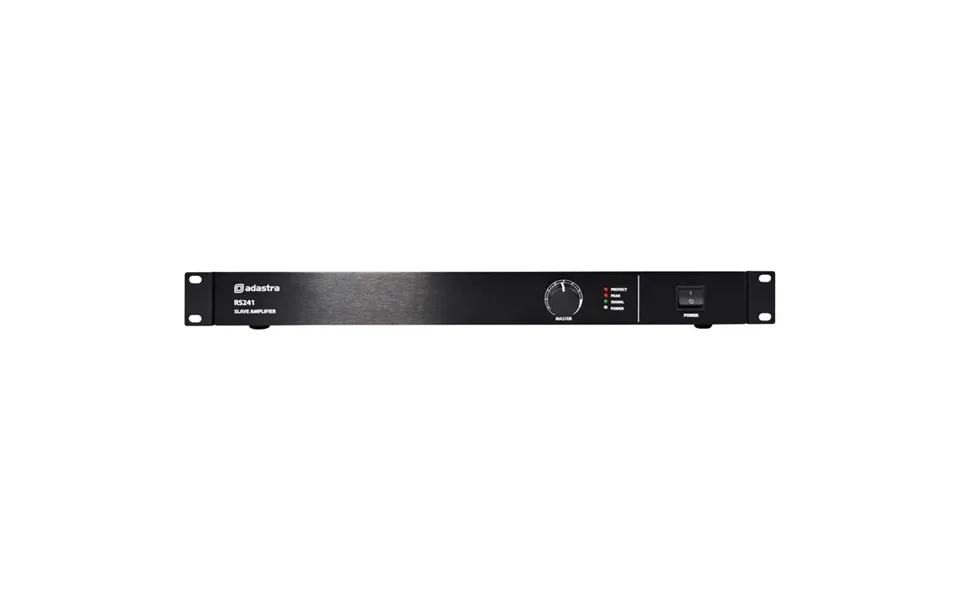

Adastra Rs241 Slave Amplifier 100v

Rs series 100v line slave amplifiershigh power class-d 100v line slave amplifiers in a rack-mountable housing. Slave inputs accept standard line level audio from a mixer or rm series mixer amplifier. Slave outputs can be cascaded onto further rs slaves to build larger systems. All line level inputs are connectable via rca sockets or hard-wired via removable screw terminals. A further removable screw terminal is provided for 100v input, which enables the rs series slave amplifier to extend an existing 100v installation by connecting directly to the 100v speaker feed, or indeed from a long distance 100v feed using standard double-insulated cable. A 24v terminal is provided for connection to a security or alert panel to mute the output if required during alarm triggering. Speaker outputs are either 100v or low impedance switchable on rs121 and rs241 which is stable down to 2 ohms, enabling multiple low impedance speakers to be connected if preferred. Designed to power medium to large installations from a mixer output or to expand existing systems.Details19 rack-mountable 1u 120w, 240w or 2u 360w, 480w efficient and lightweight class-d amplifiersline in and out on rca or euroblock terminals24v mute contacts for alarm panel muting100v signal input for extending existing speaker runsspecificationspower supply 175-264vac 50hz iec input signal slave line in rca screw terminal , 100v in screw terminal output : signal slave line out rca screw terminal outputs : speaker 100v or 2 oh... Brand: Adastra
