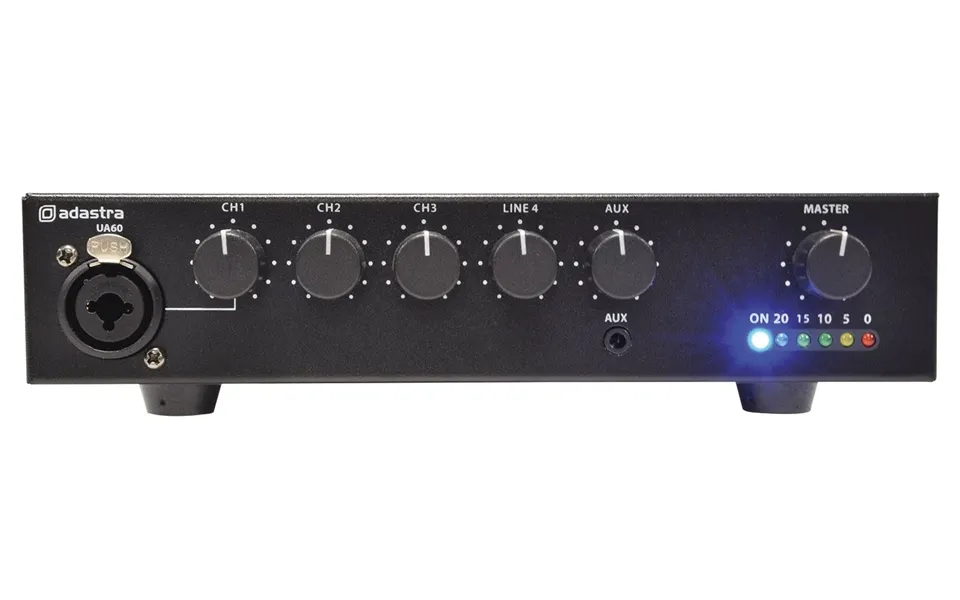

Adastra Ua60 Compact 5ch 100v Mixeramp

Ua series compact 100v mixer-amplifiers100v mixer-amplifiers with a 5-input mixer in a half width 1u housing. 3 Switchable mic line inputs, an rca line input and a 3.5Mm aux input are governed by front panel volume controls and a master output control. Mono output to either 100v line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium pa installations.Details24v fire alarm mute contactssupplied with hardware for rack-mounting 2 units5 input channels100v line or 8 ohms operationswitchable 20v phantom power ch1global 2-band eq on 120w and 240w modelsspecificationsamplifier : construction class d transformer outputinputs mic line combo , 2 x mic line 6.3Mm , line rca , aux 3.5Mm line output 2 x rca mono speaker output euroblock terminals: 100v 8 ohms commute 24v relay contactsthd 0.4% 1Khzinput impedance 1k ohms mic line input sensitivity -10db line , -45db mic snr 80db line , 75db mic frequency response 100hz 18Khzphantom power 20v ch1 xlr or rear terminals Brand: Adastra
