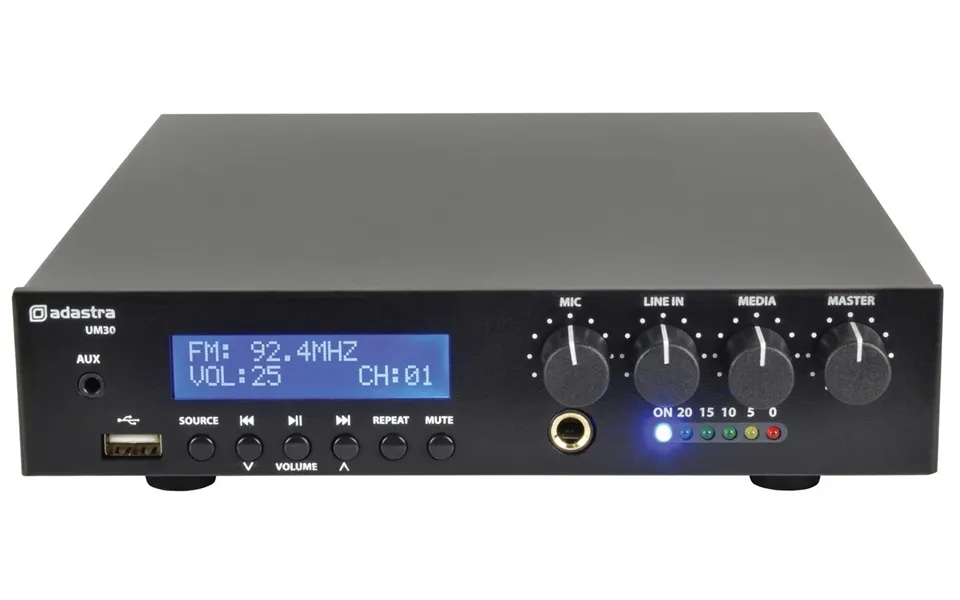

Um series ultra compact mixer-amplifiers 100v compact um30 mixer-amplifiers has bluetooth connectivity, a usb audio player & an fm radio tuner. Microphone and aux in are also an option. All controlled from the front panel & media player. Mono output to either 100v line or 8 ohms speaker load is connected via screw terminals on the rear panel. Supplied with hardware for mounting 2 units side by side in a 1u 19 rack space. Designed as a versatile solution for small to medium pa installations. Product features: ultra compact form factor efficient class d amplifier design internal usb fm bt audio player 100v line or 8 ohms operation specification: specification : common power supply170-264vac, 50hz iec amplifier : constructionclass d transformer output audio sourceinternal usb fm bt player inputs1 x mic 6.3Mm , 1 x line 2 x rca , 1 x aux 3.5Mm line output2 x rca mono speaker outputsscrew terminals
100V 8 ohms com dc power24vdc screw terminals mute24v relay contacts thd 0.4% 1Khz input impedance1k ohms mic line input sensitivity-10db line , -45db mic snr80db line , 75db mic frequency response100hz
18Khz output power : rms 30w alarm output n a dimensions 249 x 210 x 44mm weight 2.35Kg
Brand: Adastra
