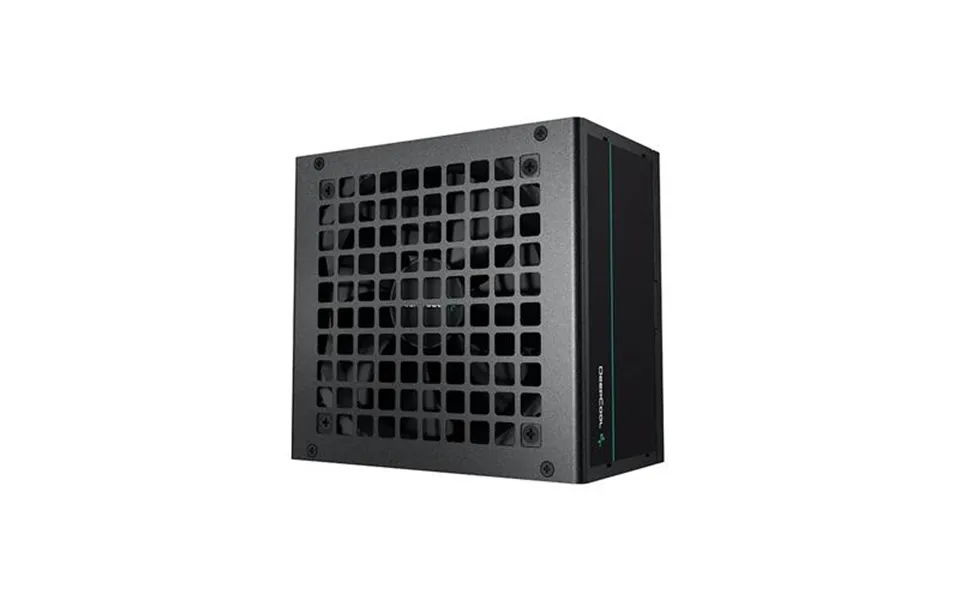

Pf500
80 Plus standard power supply
The deepcool pf series power supply unit offers safe and stable power performance with reliable 80 plus standard efficiency and affordable pricing.
To higher standards
Certified for 80 plus 230v eu standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.
Silent hydraulic bearing fan
Optimally balanced for low-noise performance the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.
Flat black cables
Stealthy and flexible the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.
Reliable protection
Shield against potential risk and damage with overpower over voltage and short circuit power protection.
Opp
Over power protection
Ovp
Over voltage protection
Scp
Short circuit protection
Uvp
Under voltage protection
Type
Atx 12v v2.4
80 Plus certifications
White
Fan size
120Mm
Fan bearing
Hydro bearing
Topology
Active pfc double tube forward
Capacitors
Taiwan bulk capacitor
Power good signal
100-500Ms
Hold up time
16Ms 75% load
Efficiency
85% Under typical load 50% loading
Protection
Opp ovp scp uvp
Operation temperature
0-40C
Regulatory
Cb ccc ce ukca eac rcm bis
Regulation
Erp 2010
Mtbf
100000 Hours
Connections
1 X main power connector 24-pin 20 4
1 X eps 12v connector 8-pin 4 4
2 X pcie 6 2 pin x1
6 X sata x2
2 X 4-pin...
Brand: Deepcool
Delivery Time: Next Day
