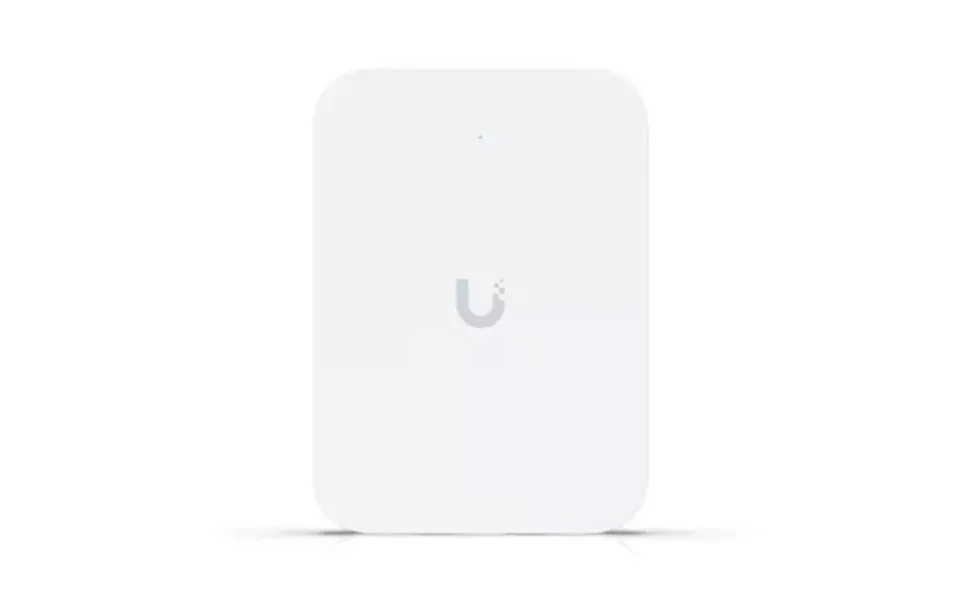

Wall-mounted wifi 7 ap with 4 spatial streams and an integrated 2.5 Gbe poe switch designed for hospitality environments.
Note. Poe input required for single-port poe output.
Dimensions
137 X 98.7 X 30.2 Mm
5.4 X 3.9 X 1.2
Wifi standard
Wifi 7
Spatial streams
4
Coverage area
115 M2 1250 ft2
Max. Client count
200
Uplink
2.5 Gbe
Mounting
Wall
Metal wall mount included
Power method
Poe
Poe required for poe output
Mimo
5 Ghz
2 X 2 dl ul mu-mimo
2.4 Ghz
2 X 2 dl ul mu-mimo
Max. Data rate
5 Ghz
4.3 Gbps bw240
2.4 Ghz
688 Mbps bw40
Antenna gain
5 Ghz
8 Dbi
2.4 Ghz
4 Dbi
Max. Tx power
5 Ghz
24 Dbm
2.4 Ghz
23 Dbm
Max. Bssids
8 Per radio
Supported data rates
802.11Be wifi 7
7.3 Mbps to 4.3 Gbps mcs0
Mcs13 nss1 2 eht 20 40 80 160 240
802.11Ax wifi 6
7.3 Mbps to 2.4 Gbps mcs0
Mcs11 nss1 2 he 20 40 80 160
802.11Ac wifi 5
6.5 Mbps to 1.7Gbps mcs0
Mcs9 nss1 2 vht 20 40 80 160
802.11N
6.5 Mbps to 300 mbps mcs0
Mcs15 ht 20 40
Wireless meshing
Yes
Band steering
Yes
802.11V bss transition management
Yes
802.11R fast roaming
Yes
802.11K radio resource management rrm
Yes
Advanced radio management
Yes
Passpoint hotspot 2.0
Yes
Captive hotspot portal
Yes
Private pre-shared key ppsk
Yes
Wifi speed limiting
Yes
Client device isolation
Yes
Wifi schedules
Yes
Radius over tls radsec
Yes
Dynamic radius-assigned vlan
Yes
Max. Power consumption
13W excluding poe output
Supported voltage range
42.5 57V dc
Networking interface
3 2.5 Gbe rj45 ports
Weight
400 G 14.1 Oz
Management
Ethernet
Built-in swi...
