What’s the difference between a snatch block and a standard pulley?

A snatch block opens at the side so you can drop the rope or wire in without threading the entire line through. It’s faster for rigging changes and recovery work. A standard pulley (or closed block) requires you to feed the line end through, which can be slower but often offers a more enclosed, robust build for heavy duty use.

How big should my sheave be for 3/8 in rope?

As a general guideline, larger sheaves are kinder to rope. For 3/8 in wire rope, many pros choose sheaves in the 5–8 in range to reduce bending fatigue. For 3/8 in synthetic rope, the same or slightly larger diameters help extend life. Always check the manufacturer’s recommendations for your rope type and construction.

Can I mix synthetic rope with a sheave designed for wire rope?

It’s not ideal. Wire-rope sheaves often have harder, narrower grooves that can pinch or abrade synthetic rope. For best results, pick a sheave with a groove profile and finish designed for synthetic fiber, and ensure the diameter in inches is appropriate for your rope size.

How much mechanical advantage will I actually get from a 3:1 system?

The theoretical advantage is 3:1, but friction reduces it. With well-maintained, low-friction sheaves, you might see an effective advantage around 2.5:1 to 2.7:1. Dirty or poorly lubricated systems drop lower. Quality bearings and proper alignment help you reclaim lost efficiency.

When should I replace my block or sheave instead of repairing it?

Replace it if you see cracks in side plates, bent axles, deformed hooks, elongated pin holes, or sharp, gouged grooves. Also retire gear with excessive corrosion or persistent rough bearings that don’t improve with cleaning and lubrication. Safety comes first—if in doubt, swap it out.

Unleash Savings on Industrial Tools in the UK!

Pulleys, Blocks & Sheaves	Price
Gt2 Timing Belt Pulley 20tooth 6mm 5mm Bore	£2.99
Gt2 Timing Belt Idler 20tooth 6mm 5mm Bore	£3.10
Gt2 Timing Belt Pulley 16tooth 6mm 5mm Bore	£3.12
Gt2 Timing Belt Idler 20tooth 10mm 5mm Bore	£3.15
Gt2 Timing Belt Pulley 20tooth 10mm 5mm Bore	£3.27
Gt2 Timing Belt Pulley 60tooth 6mm 5mm Bore	£4.09
Gt2 Timing Belt Pulley 80 Tooth 6mm 5mm Bore	£8.45
Barton Single Fixed Eye Block Plain Sheave	£11.50
Vevor Gear Puller Set - 7.6 Cm And 17.8 Cm Puller Kit	£37.90

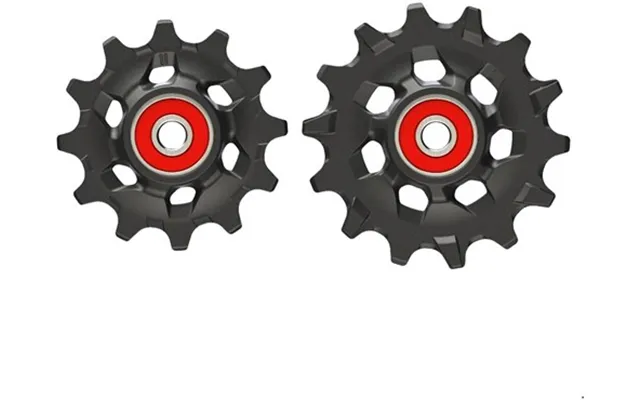

Sram Xx1 X01 Eagle Rear Derailleur Pulleys X-sync 2 12 Speed	£65.95

Pulleys, Blocks & Sheaves: A Complete Buyer’s Guide to Smarter Lifting, Better Prices, and Safer Rigging in the UK

Why Pulleys, Blocks & Sheaves Matter More Than You Think

If you lift, move, or position heavy loads, pulleys, blocks, and sheaves are the quiet heroes making the job safer and easier. They boost mechanical advantage, reduce strain on winches and hoists, protect rope and wire, and help you control the direction of a pull with finesse. Whether you work in construction, marine, utilities, off‑road recovery, or a workshop, choosing the right setup can feel like a maze of specs. The good news? With a little guidance and smart price comparison, you can land top gear at great UK prices without overspending.

What’s in it for your bottom line?

Every percentage point of efficiency and every extra year of service life saves money. That’s where matching the right pulley or block to the job pays off. And by shopping through a comparison site like ZoneOffer, you can scan popular offers, weigh features fast, and pin down a Pulleys, Blocks & Sheaves price list that actually makes sense for your needs and budget.

Pulleys vs. Blocks vs. Sheaves: Quick Definitions

To keep things simple: a sheave is the grooved wheel the rope runs over; a pulley is the assembly built around a sheave; and a block usually means a robust, enclosed pulley used for heavier duty lifting or rigging. You’ll often see combinations—single, double, or triple sheaves inside a block—used to multiply pulling power. Need more force with the same winch? Add sheaves and watch the load “get lighter.” It’s a classic case of working smarter, not harder.

Where each shines in real life

Use a basic pulley when you just need to redirect a line. Reach for a snatch block when you want to reeve rope quickly without having to thread the whole line. Choose multi-sheave blocks if you need serious mechanical advantage. The right choice lowers line tension, reduces motor strain, and increases control.

Common Types You’ll See When Comparing Offers

Not all pulleys and blocks are built the same. As you compare prices and features, you’ll notice a few types popping up consistently. Fixed pulleys redirect force, movable pulleys share load and create leverage, and compound systems combine both for even more advantage. You can mix and match based on your project’s demands.

Snatch blocks, swivel blocks, and more

Snatch blocks open at the side so you can drop rope or wire in fast—perfect for recovery or quick rig changes. Swivel blocks rotate under load, helping prevent line twist. Some blocks include a becket, a small attachment point at the bottom to secure the dead end of your rope for multi-part reeving. These small details make a big difference in ease of use and safety.

Rope and Sheave Compatibility: Get the Fit Right

Pairing your sheave to your rope or wire is crucial. Sheaves come with a groove profile designed for either fiber/synthetic rope or wire rope. The diameter of the sheave matters too: too small, and you’ll fatigue the line; too large, and you’ll carry unnecessary weight and cost. The sweet spot depends on rope diameter and construction.

The D/d rule of thumb

A helpful guideline is the D/d ratio: sheave diameter (D) divided by rope diameter (d). For wire rope, larger ratios reduce bending fatigue and extend rope life. For example, if you use 3/8 in wire rope, a larger sheave—say 5 in to 8 in—usually treats the rope more kindly than a tiny wheel. Always check the manufacturer’s recommended ratios for your specific line.

Load Ratings: WLL, Breaking Strength, and Safety Factors

Here’s where spec sheets matter. Working Load Limit (WLL) is the safe working load a pulley or block is rated to handle. Breaking strength is the load at which it fails. The safety factor is the margin between WLL and failure. Smart buyers match WLL to the real load, then add a margin for dynamic forces, angles, and friction. It’s about controlling risk, not courting it.

Example sizing made simple

If your max lift is 1 ton, don’t buy a block that tops out at exactly 1 ton. Aim higher—1.5 ton or 2 ton WLL—especially if you plan multi-part reeving or have sharp line angles. For a 2 ton lift with occasional shock loading, stepping to a 3 ton WLL block can save gear and prevent downtime.

Bearings, Bushings, and Efficiency: What’s Inside Counts

The innards of a sheave define how smoothly it runs and how much energy you lose to friction. Bronze bushings are rugged and cost-effective but can add drag. Needle bearings roll efficiently under load, while sealed ball bearings offer very smooth operation and help resist contamination.

Efficiency is more than a feel-good metric

Friction steals pulling power. A 3:1 system with high-friction sheaves might behave like a 2.2:1 in the real world. Upgrading to better bearings returns power to your line, reduces heat, and can extend the life of rope and winches. Over time, that difference pays for itself.

Materials and Build Quality: Steel, Iron, Aluminum, Stainless

Blocks and sheaves are typically made from forged steel, ductile iron, aluminum, or stainless steel. Forged steel excels for heavy duty. Ductile iron balances cost and strength. Aluminum cuts weight for portable setups. Stainless earns its keep in marine or corrosive environments.

Coatings, seals, and fasteners

Look for galvanizing, e-coat, or durable paint for corrosion resistance. Sealed bearings keep grit out when you’re working in sand, salt, or dust. Quality fasteners and tight tolerances signal a block that won’t loosen up after a few hard pulls.

Add‑On Gear That Complements Your Block and Sheave System

A great block still needs the right supporting cast. Shackles, hooks, swivels, soft shackles, thimbles, and fairleads all play their parts. Slings (chain, wire rope, or synthetic) connect your system safely to anchors and loads, while winches and hoists provide the muscle.

What to compare alongside

As you line up offers, compare rated shackles, forged hooks with latches, corrosion-resistant swivels, and proper thimbles for rope protection. If you’re using a trolley or beam clamp, match its WLL to your system and make sure the flange width fits your beam, typically measured in inches.

Applications: Match Gear to the Job

Construction lifts demand robust blocks with high WLL and strong hooks or shackles. Utilities might prefer swivel blocks for fine positioning. Workshops often need compact, efficient pulleys for overhead lines. Off‑road recovery thrives on snatch blocks and synthetic rope-friendly sheaves.

Marine and wet environments

Saltwater is unforgiving. Stainless or well-coated steel, sealed bearings, and marine-grade hardware make a real difference. Rinse gear after use and apply suitable protectants. A block that resists corrosion saves you money and headaches season after season.

Off‑road and recovery work

When you’re winching a 5,000 lb vehicle up a muddy bank, a snatch block can halve the load on your winch and reduce motor heat. Choose a block sized for your line—say 3/8 in synthetic rope—and ensure the WLL comfortably exceeds the vehicle weight plus a margin for stuck-in-the-mud resistance.

Budgeting and Finding the Best Deal

Price tags can vary widely for pulleys, blocks, and sheaves. Instead of guessing, use a comparison site like ZoneOffer to scan popular offers, filter by WLL, material, bearing type, and price, and avoid overpaying. The more you know your specs, the easier it is to spot a genuine bargain.

Don’t overbuy—buy right

It’s tempting to choose the biggest block on the page. But oversized gear adds cost and weight you may not need. Strike a balance: choose adequate WLL with room to spare, proper sheave diameter for your rope, and features that match your environment. That’s how you get value without compromise.

Maintenance and Inspection: Keep It Working Like New

Routine checks catch small problems before they become failures. Spin the sheave by hand—feel for roughness or binding. Inspect grooves for wear or sharp edges. Check side plates for cracks, warping, and corrosion. Confirm that hooks latch securely and shackles are straight and tight.

Lubrication and storage

Follow the manufacturer’s guidance for greasing bushings or bearings. Keep gear clean and dry when stored. If your worksite is full of salt or abrasive dust, rinse and dry gear at the end of the day. Small habits dramatically prolong service life.

Installation Tips for Safer, Smoother Pulls

Anchor to a structure that can actually take the load—an eye rated for thousands of pounds, a beam with verified capacity, or a tree protected with a wide sling. Align the block with the line of pull to avoid side loading. Misalignment reduces capacity and can damage side plates.

Mind your angles

Sharp line angles increase tension dramatically. Keep reeving clean and parallel where possible. Avoid rope rubbing on edges or hardware not designed as a fairlead. Use a swivel to reduce twisting, especially with multi-part line systems.

Common Mistakes to Avoid

Undersizing is risky. Overlooking sheave diameter kills rope life. Ignoring bearing type wastes pulling power. Mixing incompatible metals in salty environments invites galvanic corrosion. Skipping inspection invites surprises—and not the good kind.

The hidden cost of cheap gear

A bargain block that fails prematurely isn’t a bargain. Consider lifecycle cost: durability, efficiency, maintenance, and the value of avoiding downtime. Sometimes paying a little more for forged parts, sealed bearings, and a reputable rating is the cheapest path overall.

Mechanical Advantage: Turning One Pull Into Many

Mechanical advantage (MA) is what makes blocks magical. A 2:1 setup cuts line tension in half. A 3:1 can make heavy lifts manageable with modest input. But friction steals some of that advantage. If each sheave costs you a bit of efficiency, your real-world MA will be lower than the simple math suggests.

Quick math on site

As a rough guide, in a clean, well-lubricated system, you might see around 85–90% efficiency per sheave. In a gritty, poorly lubricated setup, that drops. So a theoretical 4:1 might act more like 3:1 under load. The fix? Quality bearings, correct rope-to-sheave pairing, and regular maintenance.

Choosing Between Wire Rope and Synthetic Rope

Wire rope is rugged, abrasion-resistant, and heat tolerant, but it’s heavy and can kink. Synthetic rope is light, easier to handle, and safer if it snaps, but it’s sensitive to heat, UV, and sharp edges. Your sheave must match the rope type—groove profile and finish matter a lot for longevity and safety.

Practical tip for longevity

For synthetic rope, a smooth, wide groove and generous sheave diameter in inches will extend rope life. For wire, a hard, well-machined groove is key, and a larger D/d ratio pays for itself in fewer replacements.

Compliance, Markings, and Traceability

Professional jobs often require documented ratings and traceable batches. Look for permanent markings indicating WLL, size, and manufacturer. Keep records of inspections and replacements. When in doubt, default to equipment with clear documentation and conservative ratings.

Documentation makes work faster

When a safety officer or client asks for specs, having labeled hardware and a neat file of datasheets speeds approvals and keeps projects moving. Clear markings also help field teams grab the right gear the first time.

When to Repair, When to Replace

Minor issues like sticky bearings can sometimes be fixed with cleaning and lubrication. But cracked side plates, deformed hooks, scored or razor‑edged grooves, and bent axles are hard-stop signs. Retire compromised equipment. Your team’s safety and your reputation are worth far more than one more lift.

End‑of‑life signals

Excessive play in the sheave, heavy corrosion, elongation in shackle pin holes, and repeated hot spots (discoloration from heat) are late-stage warnings. If you’re seeing these, it’s time to shop for new gear and compare offers before the next job.

How to Use Comparison Sites to Your Advantage

Scrolling retailer pages one by one wastes time. A comparison site like ZoneOffer pulls together popular offers so you can filter by WLL (in tons or pounds), sheave diameter (in inches), rope compatibility, bearing type, and price. That way, you can shortlist options, cross-check specs, and lock in a deal with confidence.

Reading between the lines

Look beyond the headline price. Factor in included hardware (hook vs shackle), bearing type, material and finish, and whether the block has a becket. Those details often explain price differences—and they matter in the field.

Conclusion

Choosing the right pulleys, blocks, and sheaves is part science, part strategy. Match WLL and sheave size to your rope, pick bearing types that protect your pulling power, and choose materials that fit the environment. Then use a comparison platform like ZoneOffer to sift through popular offers, read spec details side by side, and find prices that make sense. Do that, and you’ll lift smarter, work safer, and stretch every pound in your budget further than you thought possible.
