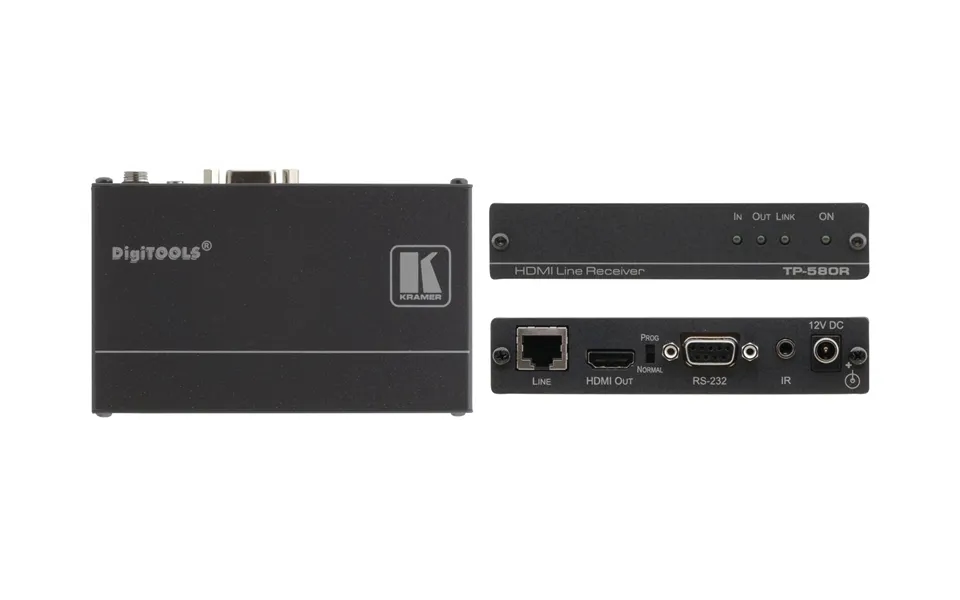

The tp 580r is a high performance. Hdbaset twisted pair receiver for hdmi. Bidirectional rs 232 and ir signals. The tp 580r receives an hdbaset twisted pair signal from the tp 580t and converts it back into hdmi. Rs 232 and ir signals.
Max. Data rate
10.2Gbps 3.4Gbps per graphic channel .
Hdtv compatible.
Hdcp compliance.
Hdbaset technology.
Hdmi support
Deep color. X.V.Color . Lip sync. Hdmi uncompressed audio channels. Dolby truehd. Dts hd. Cec.
3D pass-through.
Edid passthru
Passes edid signals between the source and display.
2K & 4k support.
Bidirectional rs-232 & ir interface.
Commands and data can flow in both directions via the rs 232 interface. Allowing status requests and remote control of the destination unit.
System range
Up to 70m 230ft .
Cable
For optimum range and performance using hdbaset . Use kramer's bc hdkat6a cable. Note that the transmission range depends on the signal resolution. Source and display used. The distance using non kramer cat 6 cable may not reach these ranges.
Indicators
Status leds for input. Output. Link and power.
Compact digitools
3 Units can be rack mounted side by side in a 1u rack space with the optional rk 3t universal rack adapter.
