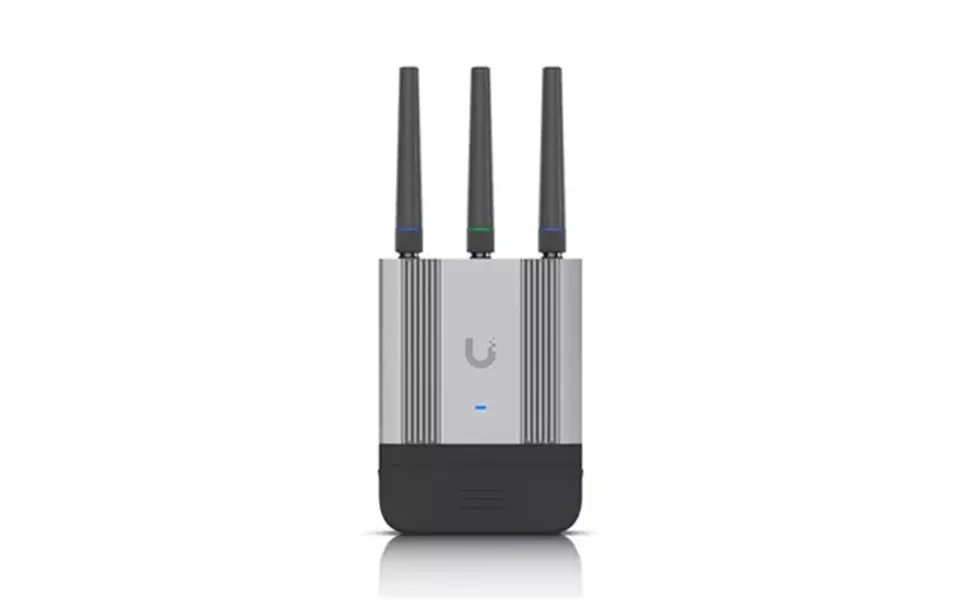

Ubiquiti Umr-industrial Cellular Network Router

Compact ruggedized and carrier unlocked lte cat 4 mobile wifi router designed for indoor outdoor iot applications. Dimensions Without antennas and outdoor cover: 114.5 X 93.6 X 32 mm 4.5 X 3.7 X 1.3 With antennas: 213 x 93.6 X 32 mm 83 x 3.7 X 1.3 With antennas and outdoor cover: 217 x 94 x 32 mm 8.5 X 3.7 X 1.3 Weight Device: 360 g 12.7 Oz Device with outdoor cover: 395 g 13.9 Oz Din rail wall mounts: 25 g 0.9 Oz Enclosure material Polycarbonate aluminum Mount material Wall pole mount: polycarbonate Din rail mount: polycarbonate Pole mount diameter 1 2 On pipe outer diameter Wind loading 38.8 N at 200 km h 8.7 Lbf at 125 mph Weatherproofing Device with outdoor cover: ip66 Management interface Ethernet Wifi Networking interface 2 Gbe rj45 ports Lte category 4 radio Wifi 4 Poe interface 1 Poe input 1 Poe output* max. 10W *Requires a poe switch. Power supply Unifi poe switch 48 54v dc Usb type-c 5v dc 4-Pin atx dc power socket 9 30v dc Max. Power consumption 12.5W Sim Nano-sim 4ff Lte bands B1 b3 b7 b8 b20 b28 3G bands B1 b8 Lte throughput speed Download 150 mbps upload 50 mbps Wifi standards 802.11 B g n wifi 2.4G 20 40 mhz Max. Wifi tx power 22 Dbm Wifi mimo 2X2 Gps Yes Antenna sma ports 1 Mobile 1: sma female connector supports 1tx and 1rx 1 Mobile 2: sma female connector supports 1rx only 1 Gps: sma female connector 2 Wifi: rp-sma female connectors External antennas 2 Mobile lte antennas with sma male connectors 1 Gps antenna with sma male connector 2 Wifi antennas with...
