Patch Panels in the UK: How to Choose, Install, and Save on Pro-Grade Cable Management

What Is a Patch Panel and Why It Matters

Think of a patch panel as the nerve center of your wired network—a tidy, reliable hub that keeps every cable organized, labeled, and easy to manage. Instead of running a spiderweb of Ethernet runs directly into your switch or router, you terminate cables into a patch panel and use short patch cords to connect the exact ports you need. The result? Cleaner racks, faster troubleshooting, and fewer stress points on your expensive hardware. Whether you’re wiring a home lab, a small office, or a larger server room, patch panels are the unsung heroes of structured cabling. They make scaling simple, maintenance painless, and upgrades far less disruptive. If you’re browsing popular offers or a patch panels price list in the UK, you’ll quickly notice a range of sizes, categories, and features. The trick is matching those options to your environment without overspending.

The Heart of Tidy Networks

Ever sorted your closet with labeled boxes? A patch panel does exactly that for your network. Each outlet is numbered and often labeled, so you can trace a connection in seconds. If a phone or access point misbehaves, move a patch cord. Need to expand? Add more cables to spare ports. Because the panel sits at a central point—typically a 19-inch rack or a small wall enclosure—it acts like a control board where everything connects neatly. You avoid yanking on switch ports, you reduce wear and tear, and you keep the entire setup professional. That’s why installers swear by patch panels and why price-savvy buyers in the UK look for deals that bundle panels, cable managers, and patch cords for a complete solution.

Key Types of Patch Panels

Cat5e vs Cat6 vs Cat6a

Choosing the right category matters more than you might think. Cat5e panels are budget-friendly and fine for many homes and small offices. Cat6 adds headroom, better crosstalk performance, and is a sweet spot for most modern networks. Cat6a ups the ante for higher bandwidth and longer runs at top speeds, which can be useful in dense office floors or server rooms. If you’re eyeing long-term value, a Cat6 or Cat6a patch panel is often the smarter buy, even if your current gear is Cat5e. You don’t have to rip and replace later—your infrastructure will be ready when you upgrade switches and endpoints.

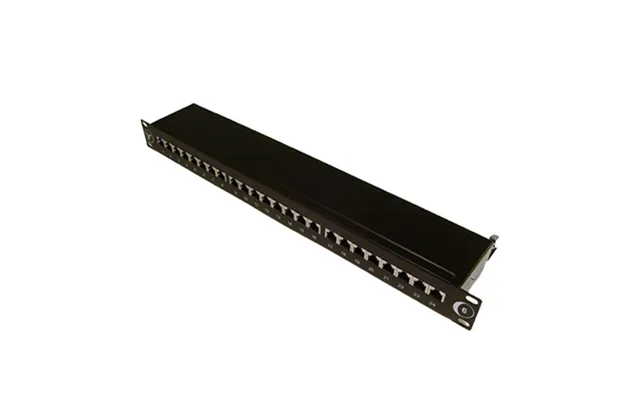

Shielded vs Unshielded

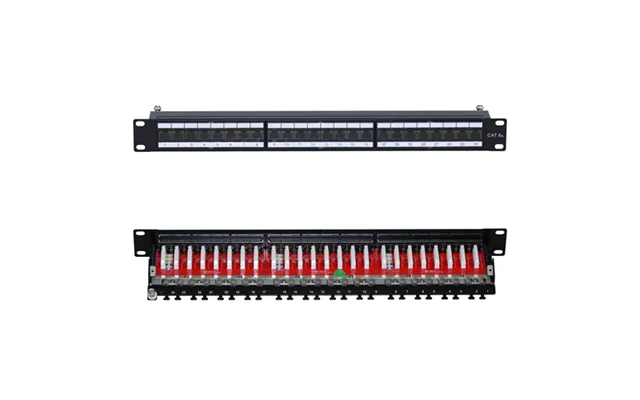

Shielded (STP/FTP) patch panels help reject interference, great near heavy machinery, elevator motors, or packed racks with lots of power runs. Unshielded (UTP) panels are more common, typically cheaper, and work perfectly in many homes and offices. Not sure? Start with unshielded unless you know you have interference issues or you’re deploying high-power PoE and dense cabling. Going shielded from end to end—jacks, couplers, patch cords, and the panel—only pays off if the whole chain is shielded and properly grounded.

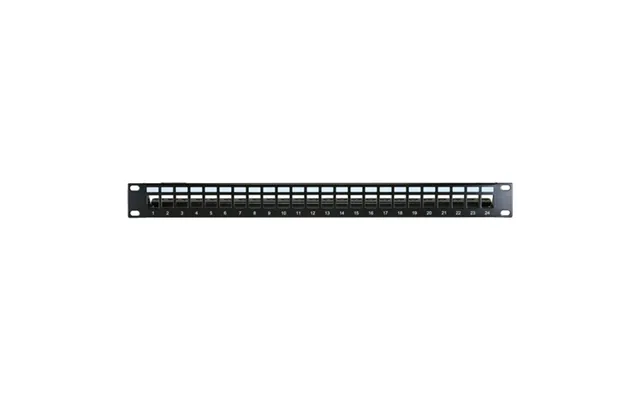

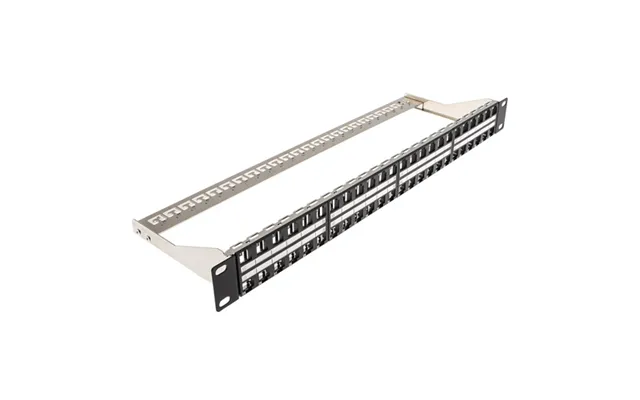

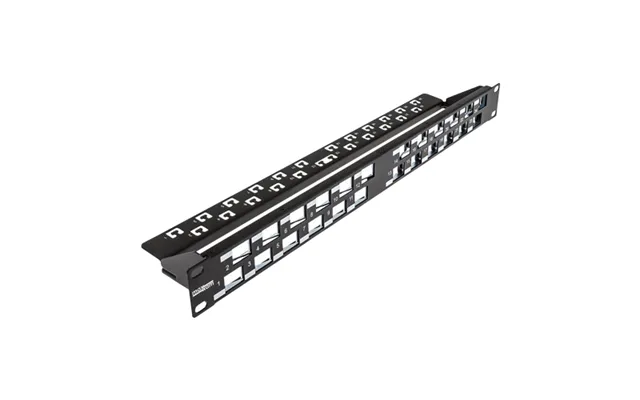

Keystone vs Fixed

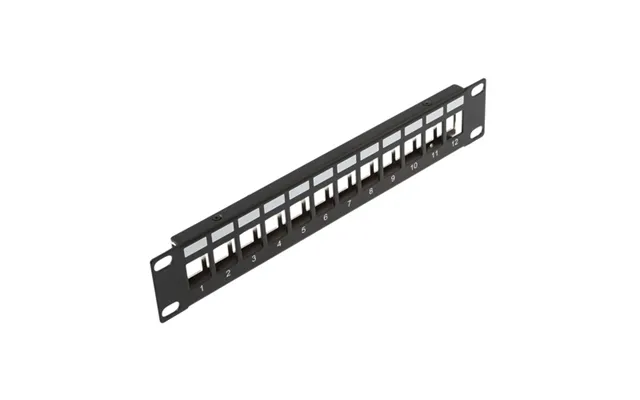

Keystone patch panels accept individual keystone jacks, so you can mix and match Cat6, Cat6a, or even fiber keystones in one frame. They’re modular and easy to reconfigure. Fixed (pre-populated) panels have built-in ports and usually cost less per port, but they’re not as flexible. If you anticipate mixed media or frequent changes, keystone is a dream. If you want a straightforward, economical setup with minimal fuss, fixed might be your best friend.

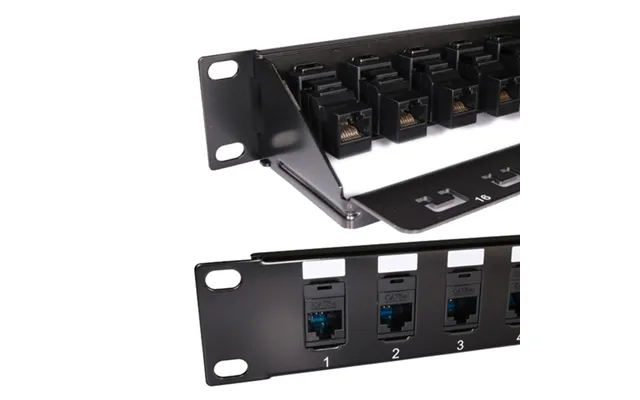

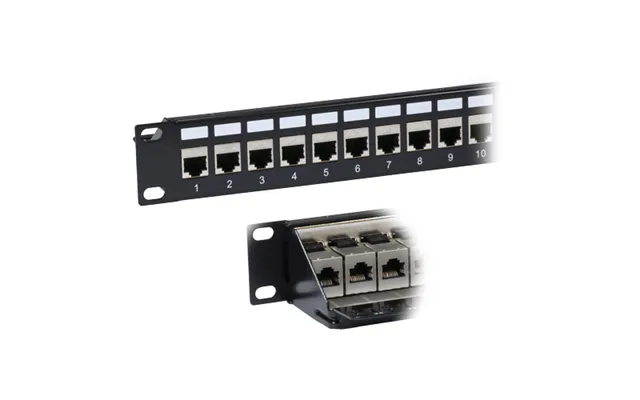

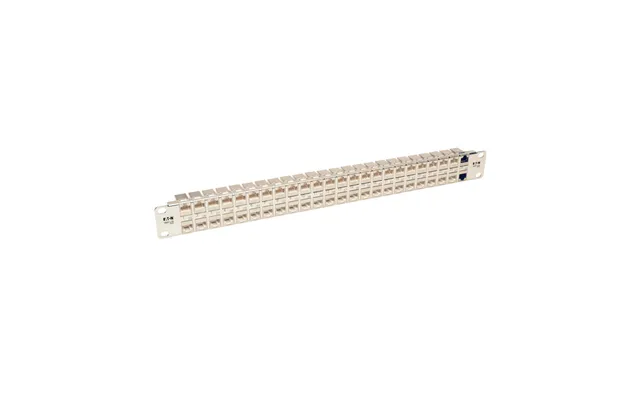

Punch-Down vs Feed-Through

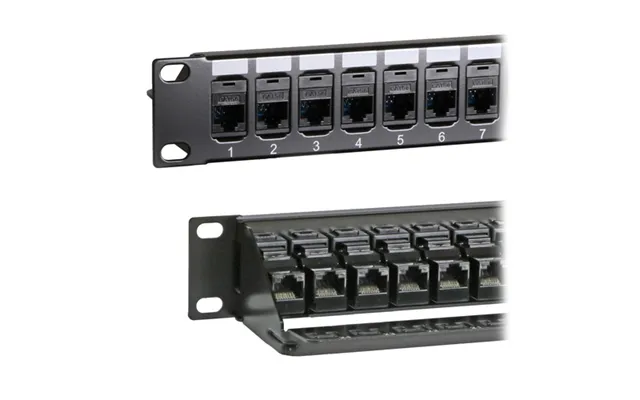

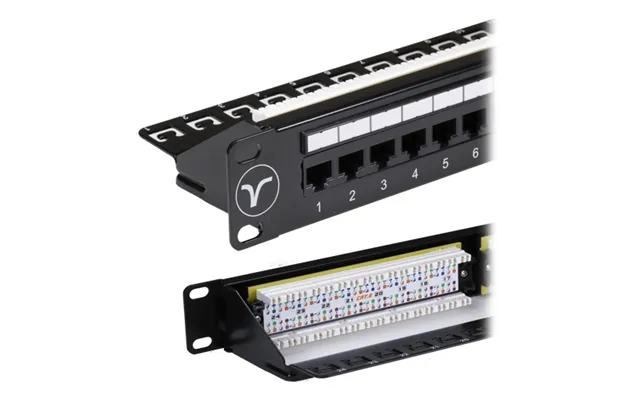

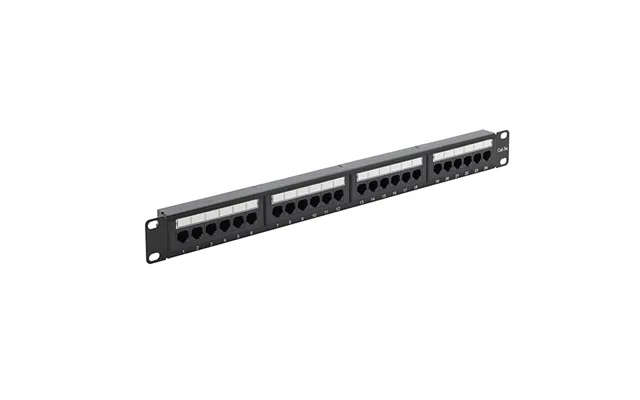

Punch-down panels require you to terminate each cable on the rear IDC blocks using a punch-down tool. It’s secure and permanent. Feed-through panels have RJ45 jacks on both sides, so you simply plug pre-terminated cables into the back and short patch cords on the front—fast and neat, especially for quick turnarounds. Punch-down costs less and looks more professional for larger builds. Feed-through trades cost for speed and flexibility.

Angled vs Flat

Angled patch panels guide cords to the sides, reducing the need for separate horizontal managers and keeping slack tidy. Flat panels are classic and work with standard cable management bars above and below. If you’re tight on rack space and want a clean look with fewer accessories, angled panels are worth a look. If you already own managers or prefer a traditional layout, flat panels do the job beautifully.

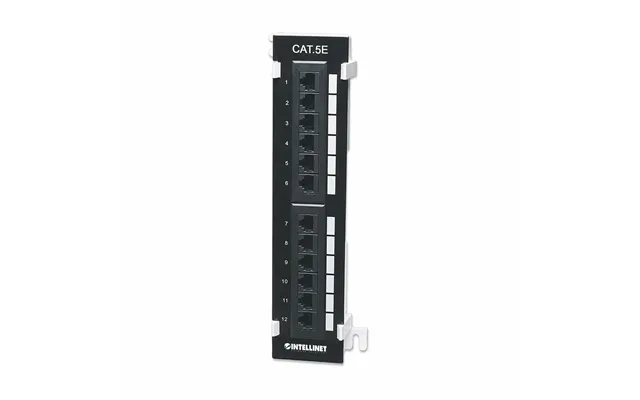

Rack-Mount vs Wall-Mount

Most enterprise setups use 19-inch rack-mount panels, typically 1U or 2U in height. Wall-mount panels and mini enclosures shine in small closets, home setups, or satellite offices. Need just a handful of drops for a smart home hub or retail till area? A compact wall-mount frame can be neater and cheaper than a full rack, while still giving you the organization and labeling benefits.

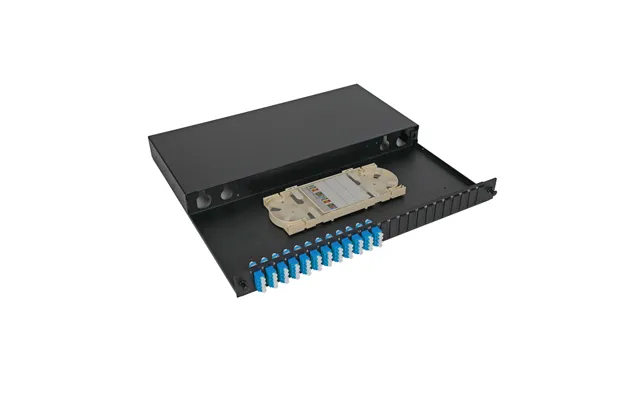

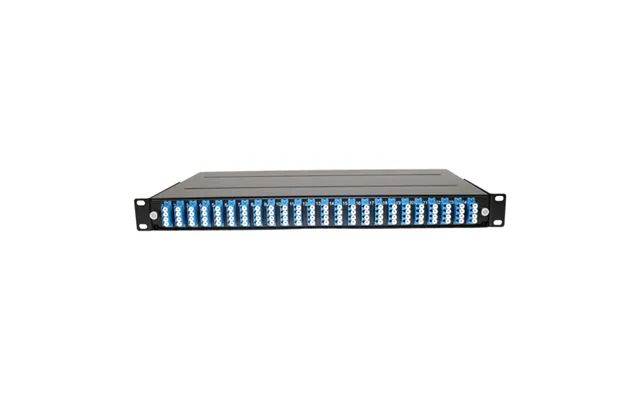

Copper vs Fiber Patch Panels

Ethernet copper patch panels (RJ45) handle most office and home networking. Fiber patch panels or enclosures manage LC or SC connections for high-speed backbones, inter-rack links, or long-distance runs. Many sites blend both: copper for end devices, fiber for uplinks. Keystone frames make that hybrid easy—pop in a few fiber keystones alongside copper and you’re set. Just remember fiber routing and protection are more delicate; plan your cable managers accordingly.

Port Counts and Form Factors

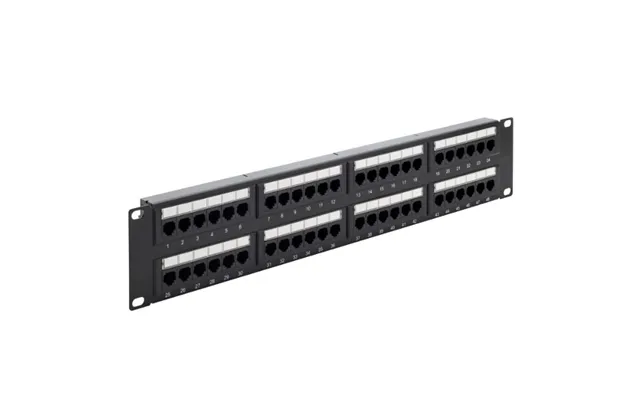

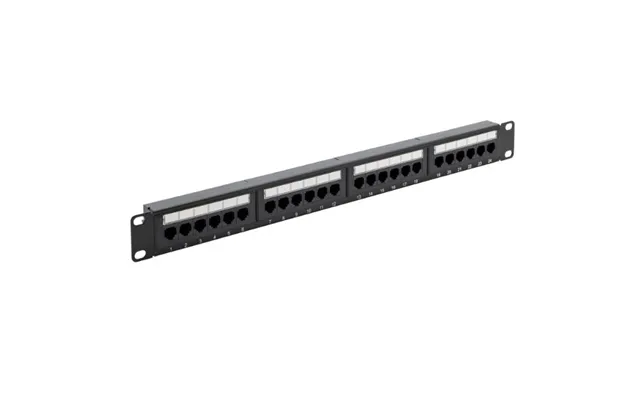

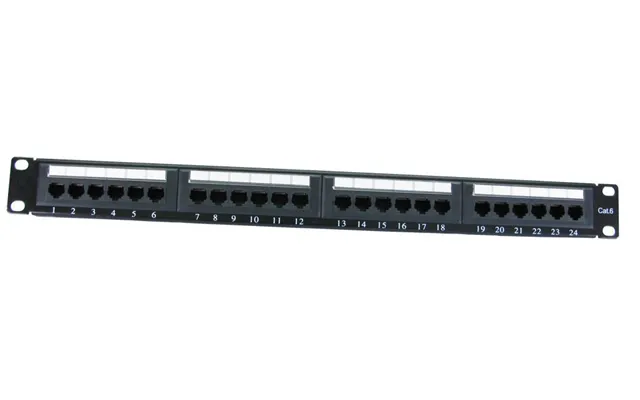

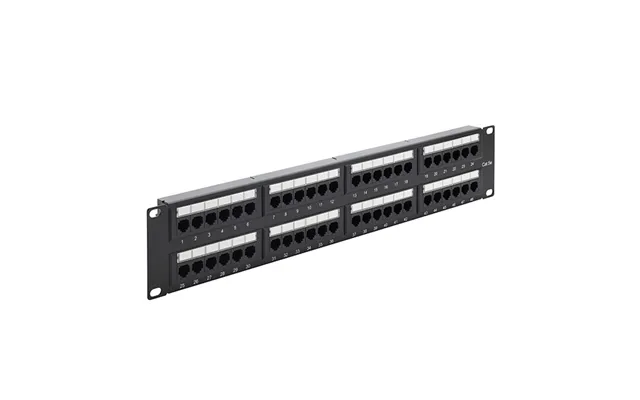

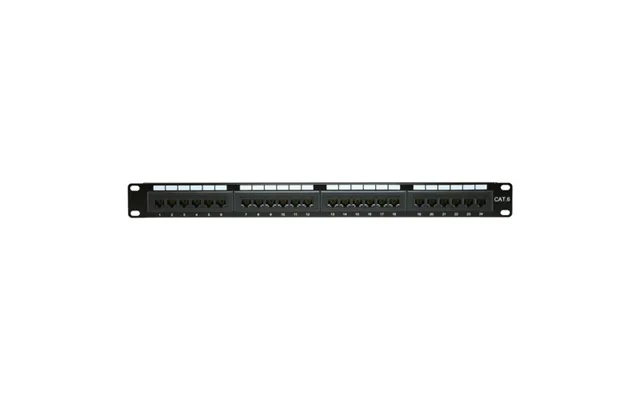

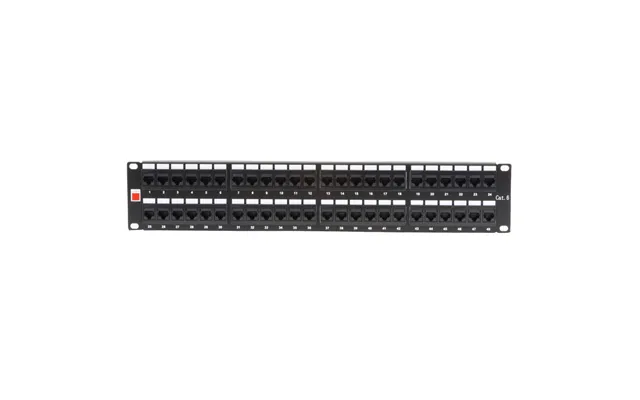

12-Port, 24-Port, and 48-Port Panels

Port count is a balancing act between current needs and future growth. A 12-port panel is perfect for a home lab or a small retail counter. The ubiquitous 24-port panel hits the sweet spot for many small and mid-sized offices. Need scale? 48-port panels maximize density and minimize rack space, especially in data closets. When comparing offers, check whether the panel includes a rear cable management bar or labels—those extras save money and time on install day.

1U vs 2U and Beyond

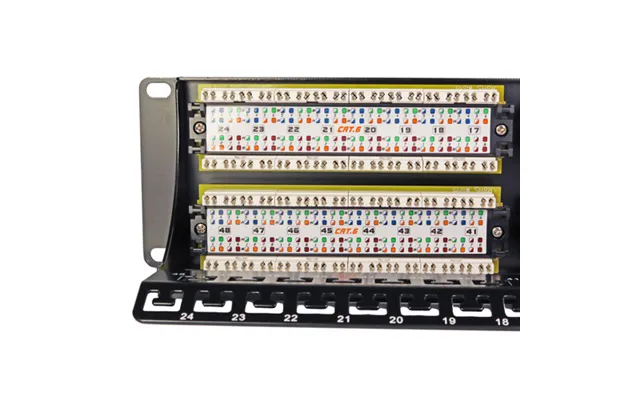

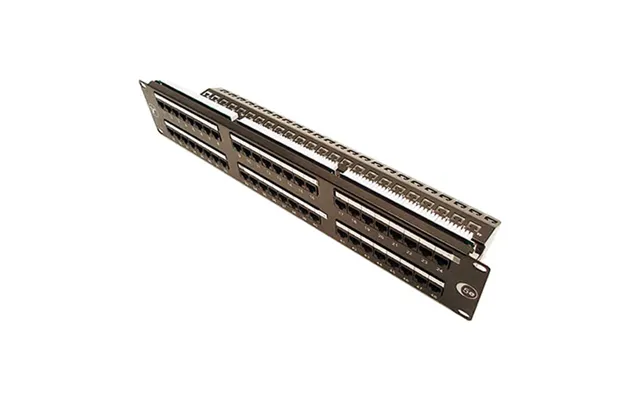

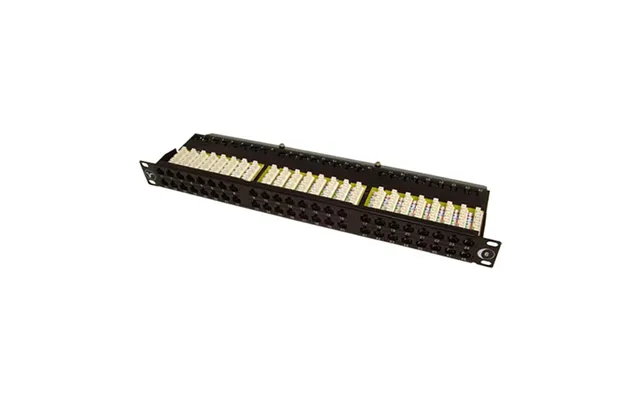

Most 24-port panels fit in 1U, while 48-port models sometimes stretch to 2U for easier termination. Don’t underestimate the value of space. If your rack is crowded, 1U density can be a lifesaver, but punch-down work gets tighter. A 2U panel gives you finger room, reduces accidental cross-termination, and can improve airflow around cables. It’s the same footprint trade-off you make with switches: density versus comfort. Choose based on your team’s experience and the number of cables you’ll be terminating.

Features That Make Life Easier

Labeling and Color Coding

Clear labeling turns chaos into control. Look for panels with label windows, number strips, and space for a legend. Combine with colored patch cords to mark VLANs, departments, or device types. A simple scheme—blue for workstations, yellow for cameras, red for uplinks—cuts your troubleshooting time dramatically. It also helps anyone new to the rack understand what’s what without guesswork.

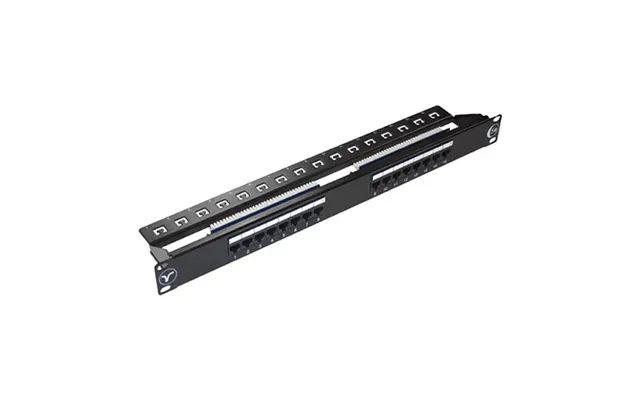

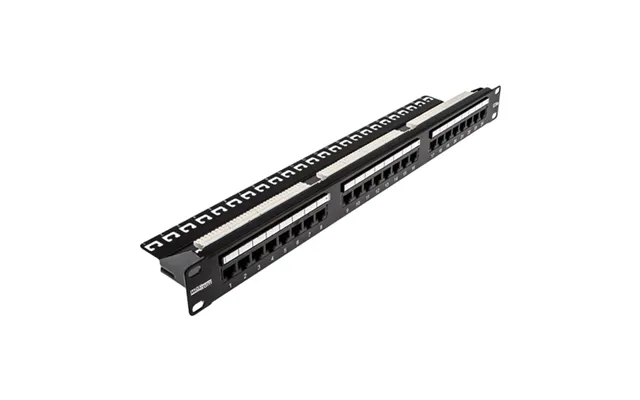

Cable Management Bars and Brush Panels

A rear cable management bar supports terminated cables so weight doesn’t pull on the IDC blocks. Brush panels help pass cables between rack spaces while keeping dust out and the front face tidy. Together with horizontal and vertical managers, they give you clean cable arcs, proper strain relief, and a rack that looks as good as it performs. Many high-value kits include these accessories—worth seeking when you scan patch panel price lists.

Numbered Ports and Snap-In Icons

Numbered ports are standard, but snap-in icons and blank inserts can add visual cues. Use them to flag voice lines, PoE ports, or security devices at a glance. In large environments, this tiny detail saves hours over a year. If you’re documenting in software, match the panel numbering to your rack plan for perfect one-to-one mapping.

PoE and High-Wattage Considerations

Power over Ethernet is everywhere—from access points to cameras and phones. If you’re pushing higher wattage (up to 90W per port on modern switches), pay attention to heat and bundle sizes. Choose panels and cable managers that allow airflow, and avoid over-tight bundling. Shielded Cat6a, properly grounded, can help in electrically noisy environments and when running many PoE lines side by side.

Buying Guide: How to Pick the Right Patch Panel

Match the Panel to Your Cabling

If your in-wall runs are Cat6, buy a Cat6 panel. Mixing higher-grade panels with lower-grade cabling won’t unlock extra performance; the chain is only as strong as the weakest link. For shielded cable, choose a shielded panel and jacks, and confirm there’s a solid grounding point. This keeps your performance predictable and standards-compliant.

Think Ahead for Upgrades

Even if you only need 16 ports today, a 24-port panel gives you headroom without much extra cost. Considering multi-gig in a year or two? Step up to Cat6a now. Expect fiber uplinks later? A keystone frame lets you snap in fiber modules when the time comes. Future-proofing is about spending a little more today to avoid rework tomorrow.

Compatibility With 19-Inch Racks

Most enterprise patch panels are designed for standard 19-inch racks. Double-check the mounting holes, include cage nuts if needed, and confirm you have enough depth to manage the cable bend radius (around 1 inch for typical Cat6 runs). If you’re wall-mounting, ensure the bracket or enclosure supports the panel’s width and the cable entry path.

Budget vs Premium: What You Actually Get

Premium panels often include sturdier steel, better labeling, cable bars, and smoother IDC blocks that make punch-down faster and more reliable. Budget panels still work, but consider the extra time spent during installation and the durability over years of moves, adds, and changes. When comparing popular offers in the UK, weigh the total package—panel, managers, labels, and any included keystones—against the price per port.

Installation Tips from the Field

Planning the Rack Layout

Start with a simple map. Put patch panels at the top or middle of the rack, switches directly above or below for short patch cords, and managers between them. Keep power gear—like PDUs and UPS units—segregated to the side or lower in the rack to reduce electrical noise and simplify cord routing. Leave at least one spare 1U space for future growth or airflow.

Punch-Down Technique 101

For punch-down panels, strip just enough jacket to seat each pair without untwisting more than necessary. Follow T568B or T568A consistently on every termination. Use a quality punch-down tool with a cutting blade to trim excess cleanly. Seat each conductor firmly—no copper showing—and give a gentle tug to confirm a solid connection. Add a zip tie or Velcro on the bar behind the panel to relieve strain on the terminations.

Testing and Certification

Even in small installs, a basic cable tester is a lifesaver. Test each run for continuity, correct pair mapping, and length. For business-critical networks, consider certifying your runs with a higher-end tester to verify performance. Label the port only after it passes the test, and record results in your documentation. It’s faster to fix now than after devices are in place.

Bend Radius and Strain Relief

Ethernet doesn’t like tight turns. Aim for gentle arcs and keep bend radius around 1 inch for common Cat6 cable. Over-tight bends introduce crosstalk and signal loss you can’t see—until devices start dropping. Use managers, bars, and Velcro to guide the path, and avoid hard plastic ties that can pinch cable jackets. Treat cables like guitar strings: too tight, and you’ll hear the discord.

Label Once, Cry Never

Label both ends of every run—at the patch panel and at the outlet or faceplate. Use a printed labeler for clarity and consistency. Then update a simple spreadsheet or documentation tool with port numbers, locations, and device roles. Ten minutes of labeling today will save hours of hunting later when a camera goes offline or a desk moves.

Essential Accessories to Complete the Job

Patch Cords in the Right Lengths

Short, neat patch cords make your rack look pro and keep airflow healthy. Stock a variety of lengths—1 ft, 3 ft, 5 ft, 7 ft, and 10 ft—so you can avoid loops and tangles. Choose snagless boots for tight racks, and consider color-coding to match your labeling scheme. For PoE, look for robust strain relief and, if you’re using shielded infrastructure, shielded patch cords to maintain continuity.

Horizontal and Vertical Managers

Horizontal managers sit between your panel and switch to guide cords cleanly, while vertical managers run the height of the rack to route bundles up or down. Finger ducts and D-rings are popular choices. Brush strips are great for pass-throughs without visual clutter. These inexpensive add-ons are the secret sauce behind Instagram-worthy rack photos—and they genuinely improve serviceability.

Trays, Shelves, and PDUs

Even with perfect cable discipline, you need somewhere to place small devices—media converters, modems, or demarc equipment. A vented shelf solves that. Add a reliable PDU with enough outlets and surge protection, and you’re future-ready. Keep power cords and data paths separate to reduce noise and make tracing lines easier.

Surface Boxes and Faceplates

At the room end, clean terminations matter. Use quality wall plates or surface-mount boxes with keystone jacks that match your panel’s category. Label them clearly to match the patch panel port. A tidy endpoint is just as important as a tidy rack—users notice both.

Tools You Should Not Skip

Pack a punch-down tool, cable stripper, RJ45 crimper (for field-terminated cords), a toner and probe for tracing, and a cable tester. A headlamp or rack light can save your sanity in dark closets. Velcro strips beat zip ties for rework-friendly bundling. Keep spare keystones, RJ45 ends, and a few blank inserts handy for any last-minute changes.

Best Use Cases: Home, Small Business, and Data Centers

Home Lab and Smart Home

If you’re wiring a home office or lab, a 12-port or 24-port Cat6 panel is perfect. Mount it on a small wall bracket, pair it with a compact switch, and you’ve got a professional-grade setup that supports streaming, gaming, cameras, and smart devices without a cable mess. Keep patch cords short to avoid a spaghetti tangle under the stairs or in the utility closet.

Retail and Offices

Shops and offices depend on stability. A 24-port or 48-port Cat6 patch panel with clean labeling makes moves, adds, and changes painless. Add color-coded patch cords for phones, cameras, and workstations. For PoE-heavy deployments (access points and cameras), consider shielded Cat6a and plan your cable routes to manage heat and interference. Organized racks mean faster fixes when every minute counts.

Server Rooms and Colocation

In denser environments, scalability is king. 48-port panels, angled designs, and vertical managers make the best use of space. Keystone frames let you blend copper and fiber in a single panel, ideal for inter-rack uplinks. Document every port, maintain spare capacity, and standardize patch cord lengths per row to keep everything consistent across racks and sites.

Saving Money on Patch Panels in the UK

Compare Deals the Smart Way

Prices can vary widely, and bundles often deliver the best value. Use comparison platforms—such as ZoneOffer—to scan popular offers and patch panel price lists across multiple retailers before you buy. Look for panels that include rear bars, labels, or even a starter set of keystones. The cost per port drops fast when accessories are bundled in.

Refurbs, Open-Box, and Bulk Buys

If you’re outfitting multiple closets or a new office, bulk buys can save serious cash. Open-box units are another option; many are returns with little to no wear. Just confirm all mounting hardware and label strips are included. For keystones, buying in packs lowers the per-port price and ensures you have spares on hand for future desks or access points.

When to Buy Shielded to Avoid Overspending

Shielded components cost more. Don’t pay for them unless your environment demands it—think heavy EMI, dense PoE bundles, or critical lines near power feeds. In typical homes and offices, unshielded Cat6 is the value champion. Spend the difference on quality patch cords, better managers, or a cable tester—investments that pay off every single day you maintain the network.

Conclusion

Patch panels bring order, reliability, and scalability to any network, from a modest home setup to a bustling office floor. By choosing the right category, port count, and features—and pairing the panel with proper cable management and tools—you create a system that’s a joy to use and simple to grow. As you compare offers in the UK, weigh total value over sticker price: bundled accessories, build quality, and time saved on installation all matter. Get the fundamentals right today, and your network will run cleaner, cooler, and more dependable for years to come.
