How do I identify the correct size for my replacement carbon brushes?

Remove one old brush and measure the width, thickness, and length in inches. If the brush is heavily worn, measure the holder cavity and subtract a hair so the new brush slides freely. Note the face shape (flat or curved) and the lead style (pigtail, spade, ring). Matching these details ensures a smooth drop‑in fit without binding or rewiring.

Can I use a harder or softer brush grade than the original?

You can, but do it thoughtfully. A softer grade wears faster but is gentle on the commutator. A harder grade lasts longer but can increase wear on copper surfaces. If you’re unsure, stick close to the original grade or a well‑documented equivalent for your tool class. The right spring pressure and a clean commutator matter just as much as grade.

Why do new brushes spark at first, and when should I worry?

Light sparking is normal during break‑in as the brush face seats to the commutator. After a short no‑load run, sparking should taper off. If heavy sparking continues—accompanied by heat, noise, or a burning smell—stop and check for wrong brush size, weak or misaligned springs, dirty commutator segments, or incorrect lead installation.

Is it okay to sand a slightly oversized brush to fit?

Light dressing can work in a pinch, but keep it precise and square so the brush glides smoothly. Remove small amounts and test the fit often. Never force a tight brush into the holder; it will stick and arc. If the size is far off, it’s better to select a brush with the correct inch dimensions to begin with.

How long should carbon brushes last in typical use?

Lifespan depends on load, speed, duty cycle, and environment. Power tools used intermittently can go a long time between changes, while high‑duty or dusty environments eat brushes faster. Watch for performance cues—reduced torque, extra sparking, and harder starts. A quick inspection every so often lets you replace brushes before they become a problem.

Discover Premium Carbon Brushes in the UK Now!

Carbon Brushes	Price
Makita Genuine 195026-6 Carbon Brush Cb459	£2.16
Active Carbon Brushes - 1 Pair	£2.70
Makita Genuine 194973-8 Carbon Brush Cb-85 For Makita Hp1631 Mt8 Percussion Drill	£3.36
Dyson Ydk Motor Replacement Carbon Brushes 2 Pack	£3.92

Carbon Brushes in the UK: A Complete Guide to Types, Sizing, Installation, and Smart Price Comparison

Introduction to Carbon Brushes in the UK

Carbon brushes are the small, unassuming blocks that keep countless motors spinning, from your drill and angle grinder to your washing machine and lawn equipment. If a device uses a commutator or slip ring, there’s a good chance carbon brushes are riding along that surface, transferring electricity like tiny messengers at high speed. Hunting for the right replacement in the UK can feel like decoding a secret—sizes, grades, springs, and leads all matter. The good news? Once you know what to look for, it’s straightforward, and you can compare prices and features across different sellers quickly to get the best deal. This guide breaks down how carbon brushes work, the types you’ll see for power tools and appliances, how to measure in inches for an exact fit, and the smart way to compare offers so you spend less and fix faster.

Why Carbon Brushes Still Matter

With modern electronics everywhere, you might wonder, “Are carbon brushes still a thing?” Absolutely. They’re like the shoes on a runner—making contact, taking the wear, and keeping everything moving smoothly. They’re designed to wear down over time instead of the more expensive commutator or slip ring. When performance dips—sparking, sputtering, that hot electrical smell—fresh brushes can make an old tool feel new again. Whether you’re maintaining a workshop full of gear or just keeping a vacuum cleaner in fighting shape, the right brush replacement is one of the cheapest and most effective fixes you can make.

How Carbon Brushes Work Inside Motors and Generators

Carbon brushes are conductive blocks that press against a rotating copper surface (a commutator in many power tools or a slip ring in certain motors and generators). Held in place by a spring-loaded brush holder, each brush carries current into the spinning part of the motor. That steady contact allows the motor to create torque. Over time, friction and heat wear down the brush, and the spring gradually pushes it forward to maintain contact. Eventually, the brush gets too short to make solid contact, and that’s when performance nosedives. Replace the brushes, and you restore steady electrical flow and healthy motor behavior.

Materials and Grades Explained

Not all carbon is the same. Common brush materials include pure graphite, copper–graphite, and silver–graphite. Graphite offers smooth riding and gentle wear on the commutator, making it great for many power tools. Copper–graphite improves conductivity and is often used for higher load applications where the motor pulls more power. Silver–graphite ramps up conductivity even more for specialty uses. Brush “grade” blends ingredients to balance conductivity, hardness, and lubricity. Too soft, and the brush wears out quickly; too hard, and it may chew up the commutator. When in doubt, match the original brush grade or choose a reputable cross-reference that’s proven compatible with your tool or appliance.

Types of Carbon Brushes by Application

While carbon brushes all do the same basic job—carry current through a sliding contact—their shapes, sizes, and lead styles vary widely. Power tools often use compact, rectangular brushes with pigtail leads and spring caps. Appliances might use longer blocks with molded caps that slide into holders. Industrial setups can demand larger brushes designed for heavy-duty service. The trick is to match your use case: high-speed tools need brushes that can handle heat and RPM; appliances need stable, low-spark performance; generators and alternators may call for specific slip ring brushes with a different profile.

Power Tool Brushes (Drills, Grinders, Saws)

Power tool brushes tend to be short and rectangular, with a lead (pigtail) that connects to a spring or terminal. They work in fast-spinning motors where the commutator takes a beating. You’ll see popular patterns designed for brands like Makita, DeWalt, Bosch, and others; many compatible replacements are available if you match the dimensions, lead style, and grade. If your drill sputters when starting, your grinder loses torque, or your circular saw smells hot under load, worn brushes are a prime suspect. A new pair can restore smooth spin-up and cut down on sparking.

Appliance Brushes (Washers, Vacuums, and More)

Appliances often run longer duty cycles, so their brushes may be longer and designed for steady, reliable contact. Think washing machine motors, dryer motors, and vacuum cleaners. Symptoms of worn brushes include intermittent operation, reduced suction in vacuums, or motors that hum without spinning. These replacements often slide into a dedicated holder, making DIY swaps approachable if you’ve got basic tools and patience.

Industrial and Automotive Brushes

Bigger machines—compressors, generators, alternators—can use larger brushes that handle sustained loads. Automotive alternators and older generator systems rely on consistent brush contact for charging systems to behave. In these scenarios, matching the brush grade to the duty is critical. If a brush is too soft, it vanishes quickly under load; too hard, and you risk commutator wear. For heavy-duty setups, consult cross-references, check your motor plate, and aim for proven equivalent grades.

Getting the Size Right: Dimensions, Leads, and Caps

Brushes look like simple carbon blocks, but sizing isn’t guesswork. You’ll need the brick’s width, thickness, and length in inches, plus the lead style and cap details. Even a small mismatch can cause poor contact or jamming in the holder. If you still have the old brush, measure it. If it’s worn, measure the holder’s cavity and allow a hair of clearance so the brush slides freely. A snug fit is good; a bind is bad. Also note the face shape: some brushes have a curved face to match the commutator’s radius, while others are flat and seat themselves during break‑in.

Measuring in Inches and Matching the Holder

Measure the brush body’s width and thickness across the sides—think of it like measuring a tiny brick: width by thickness by length. Common power tool brushes often land in ranges like about 1/4 inch to 1/2 inch on a side, with lengths from roughly 1/2 inch up to about 1 inch or more. If your old brush is uneven or chipped, measure multiple points and use the most consistent values. Double‑check the holder: slides should be clean, and springs should press the brush firmly without binding. If the brush can’t glide in the holder, you’ll get arcing and inconsistent performance.

Terminations: Spade, Pigtail, and Caps

Beyond the carbon block, look at how the brush connects. Pigtail leads are braided wires attached to a terminal, sometimes with a spade, ring, or bullet end. Some brushes include a spring and cap assembly for quick swap‑outs, especially in handheld tools. Match the terminal style so you don’t have to modify wiring. As a rule, avoid bending or crimping leads excessively—sharp kinks can create hot spots. If your original brush used an insulated cap, reuse it if it’s in good shape or choose a replacement set that includes the correct cap style.

Symptoms of Worn or Mismatched Brushes

Worn brushes act like worn shoes—everything wobbles, and the ride’s rough. You may notice harder starts, a burning smell, visible sparking at the vents, or the motor stalling under load. Inconsistent RPM, humming without rotation, or a tool that only runs when you wiggle the cord can all point to brushes nearing the end. If you just replaced brushes and things still behave badly, mismatched size or grade, incorrect spring pressure, or a dirty commutator may be to blame. Fix the root cause, and the new brushes will live longer.

On Power Tools: Sparks, Smell, and Stalling

Power tools are honest; they tell you when brushes are tired. Excessive sparking at the vents, sudden loss of torque, or a tool that heats up quickly are classic signs. Sometimes you’ll see the tool run fine off‑load but bog down during a cut. That’s the brush losing solid contact when amperage demand spikes. Pop the caps, check brush length, and inspect the commutator through any inspection port. If the commutator looks streaky or has dark, uneven bands, plan to clean it during the brush change.

On Home Appliances: Intermittent Power and Noise

For washers, dryers, and vacuums, the story is similar but slower. You may hear chattering or irregular humming, notice the appliance stopping mid‑cycle, or feel reduced suction in a vacuum. If the motor runs after a tap or a restart, brushes could be hanging up. Remove power, open the access panel, and check the brush holders. If the brush is short or the spring has weak tension, it’s time to replace the set and refresh the contact surface.

Choosing the Right Replacement Brush

Choosing wisely means matching three things: size, grade, and connection style. Size ensures smooth travel in the holder. Grade ensures the right balance of conductivity and lubricity for your motor’s load. Connection style ensures a secure hook‑up without re‑engineering the wiring. If you’re cross‑referencing from a brand‑specific brush to a compatible option, verify dimensions in inches, lead type, and recommended applications. When possible, stick to the manufacturer’s spec; when you can’t, pick a proven equivalent for your tool class—like a graphite or copper–graphite grade for high‑RPM power tools.

Grade, Hardness, and Spring Pressure

Brushes wear by design, but they shouldn’t vanish overnight. Grade determines hardness and electrical behavior. Too soft can mean frequent replacements; too hard can mean commutator wear and noisy operation. Spring pressure matters, too—weak pressure leads to arcing; too much pressure creates heat and speeds wear. If your new brushes came with springs, use them unless your holder is designed for a separate spring. When mixing old holders with new brushes, confirm the brush can move freely and that the spring provides firm, even force.

Brand Compatibility Versus Generic Options

Brand‑matched brushes are convenient: they usually drop in with the right lead and cap, and they’re tuned for the motor. Generic or compatible brushes can be excellent value if they match correctly. Look for listings that name specific models or that provide precise dimensions and material information. If a generic option is vague about size or grade, skip it. A good compatible brush states the inch dimensions, lead type, and typical applications clearly so you can compare apples to apples across different offers.

Installation, Seating, and Break‑In

Installing carbon brushes isn’t complicated, but a methodical approach pays off. First, disconnect power. Access the brush holders and note the orientation of the old brushes. Clean the holder channels carefully; any debris can cause sticking. Inspect the commutator or slip ring—if it’s grimy or streaked, plan a gentle clean. Fit the new brushes with the correct face toward the commutator, and confirm the springs press evenly. After reassembly, a short break‑in run at moderate speed helps the brush face conform to the copper surface for a larger contact area and lower sparking.

Safety and Step‑by‑Step Checklist

Safety first: disconnect the plug or battery. Open the brush caps or covers. Remove the old brushes and note length; if they’re down to a short nub, you found your issue. Clean out carbon dust using a soft brush or vacuum attachment—avoid blasting debris deeper into the tool. Inspect the commutator; if you see grooves or heavy pitting, consider professional service. Install the new brushes with correct orientation and ensure the leads aren’t pinched. Reassemble and run the tool with no load for a short cycle to start the seating process before you return to full‑load tasks.

Bedding‑In and First Run Best Practices

New brushes don’t start with a perfect footprint; they seat over the first few minutes of operation. For best results, run the motor at moderate speed with no load, then step up gradually. Listen for smoothness—less crackling and fewer sparks as the contact area grows. If you still see heavy sparking after a short break‑in, stop and recheck the brush fit, spring tension, and commutator cleanliness. A properly seated pair should deliver stable RPM, reduced noise, and a fresher smell—no more hint of burning carbon.

Maintenance Tips to Extend Brush and Motor Life

Good maintenance is simple: keep things clean, cool, and correctly loaded. Carbon dust accumulates; clear it periodically so brushes move freely and the commutator stays tidy. Avoid running tools at stall or near‑stall—nothing cooks brushes faster than sustained overload. Let tools cool between heavy cuts, and don’t push appliances beyond their intended cycles. If a motor lives in a dusty shed or workshop, give it a quick vacuum and visual inspection now and then. Those small habits translate into longer brush life and less commutator wear.

Cleaning the Commutator or Slip Ring

A clean copper surface is the best friend of a new brush. If the commutator looks tarnished or streaky, a careful clean can help. Use a non‑metallic abrasive designed for electrical contacts or a commutator stone, applied gently while rotating by hand if possible. Avoid deep sanding or aggressive scraping, which can create flats and uneven wear. After cleaning, remove all dust before fitting new brushes. The goal isn’t a mirror finish; it’s a smooth, even surface that lets brushes glide and settle in without chatter.

Ventilation, Duty Cycles, and Storage

Heat shortens brush life, so keep vents clear. Blow out dust from intake and exhaust grills on tools and appliances. Respect duty cycles—alternate between work and rest instead of pushing continuously at max load. Store tools in a dry place so moisture doesn’t attack copper surfaces. If a tool sits unused for a long stretch, a light run‑up helps clean the contact surface and restore a healthy patina that aids conductivity and reduces micro‑sparking.

Comparing Prices and Finding Deals in the UK

Once you know your brush’s size, grade, and lead style, it’s time to compare offers. You’ll see everything from genuine brand packs to high‑quality compatible sets. Price varies by material, brand, and whether a kit includes springs, caps, or holders. A comparison site can save time by lining up options side‑by‑side so you can spot value at a glance. Look at the total cost, not just the headline price: factors like set quantity, included hardware, and shipping can tilt the math.

What Drives the Price of Carbon Brushes

Several levers move the price needle: premium grades (like silver–graphite) cost more; name brands carry a surcharge; and bundles with springs, caps, or multiple pairs often offer better per‑pair value. Specialty sizes for niche tools can be pricier than common dimensions. If you need multiple sets for a workshop, multipacks can bring the per‑pair cost down, especially when you factor in the time saved by having spares on hand.

Smart Comparison Tips for Better Value

When comparing, match the inch dimensions first. Next, confirm the lead and cap style—pigtail length, terminal type, and whether springs are included. Scan the product details for compatible models and recommended applications. Choose sellers that clearly state specs and show the brush face and lead in their photos. Finally, consider total value: two pairs with springs and caps might beat a single pair without hardware once you add everything up. A little diligence up front prevents reorders and gets your tool back in action faster.

Final Thoughts

Carbon brushes may be small, but they punch above their weight in keeping motors alive and kicking. If your drill sputters, your vacuum fades, or your washer stalls, worn brushes could be the culprit—and the fix is often quick and affordable. Measure in inches, match the grade and connection style, clean the contact surface, and take a few minutes to seat the new brushes. With the basics sorted, you can confidently compare offers across the UK and pick the best fit for your budget and your machine. The payoff is simple: smoother starts, steadier power, and a longer life for the tools and appliances you rely on.

Carbon Brushes

Carbon Brushes

Dyson Ydk Motor Replacement Carbon Brushes 2 Pack

Active Carbon Brushes - 1 Pair

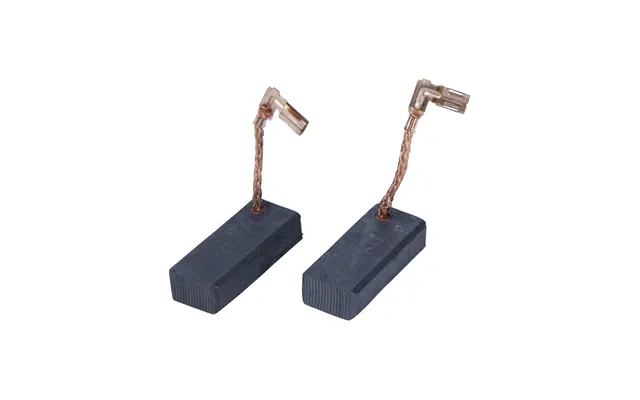

Makita Genuine 194160-9 Carbon Brush Cb350 Set For Makita Hr4001 And Hk1820 Power Scrapers

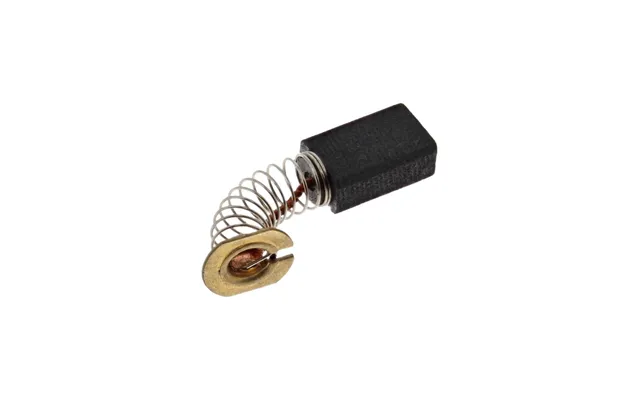

Makita Genuine 194969-9 Carbon Brush Cb65 For Makita 9503b - 9503bh Angle Grinders

Makita Genuine Jm23000123 Carbon Brush Set Mtl100

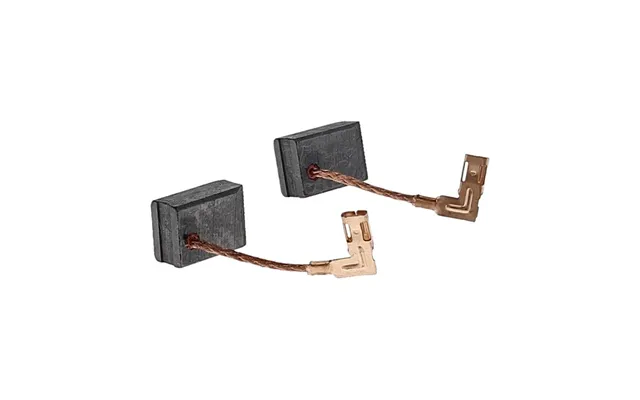

Makita Genuine 195025-8 Carbon Brush Cb458

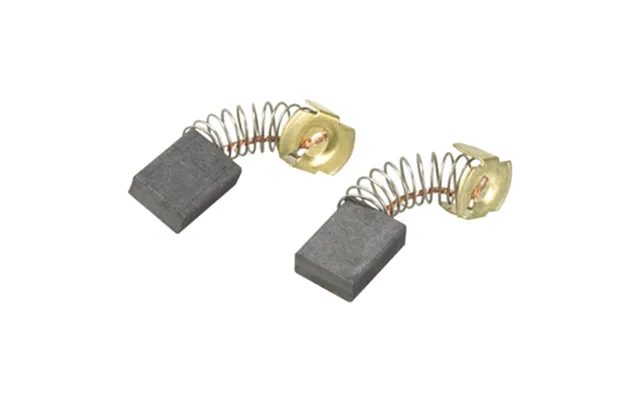

Makita Genuine 194994-0 Carbon Brush Cb253 For Makita Ga5021v Angle Grinder

Makita Genuine 194985-1 Carbon Brush Set Cb153

Makita Genuine 195026-6 Carbon Brush Cb459

Carbon Brush For Makita Bo4553 - Bo4554 Sander

Makita Genuine 194973-8 Carbon Brush Cb-85 For Makita Hp1631 Mt8 Percussion Drill

Makita Genuine 195021-6 Carbon Brush Cb440

Makita Genuine 195489-6 Carbon Brush Set Cb173

Makita Genuine 191d85-2 Carbon Brush Cb258
