The Ultimate Guide to Grinding Wheels & Points: Choose the Right Abrasive for Every Job

Introduction: Why the Right Grinding Wheel Matters

Picking the right grinding wheel or point can feel like choosing the right brush for a masterpiece — one wrong choice and the finish, speed, or safety of the job suffers. Whether you're shaping metal for a fence post, refining a weld, or removing rust from a garden tool, the abrasive you use determines how quickly you’ll get there and how much elbow grease it takes. This guide walks you through the types, uses, and tips for grinding wheels, points, and related accessories so you can tackle projects with confidence and efficiency.

Types of Grinding Wheels and When to Use Them

Not all grinding wheels are created equal. At a high level you'll see bonded abrasive wheels, diamond wheels, and mounted points. Bonded wheels (aluminum oxide or silicon carbide) are the common workhorses — great for general-purpose metal removal and sharpening. Diamond wheels shine when you need precise cutting or long life on hard materials like stone or ceramic. Mounted points, also called grinding points, are small shaped abrasives used on die grinders for fine-detail work in tight spots. Think of them like the fine-tip markers in your toolkit.

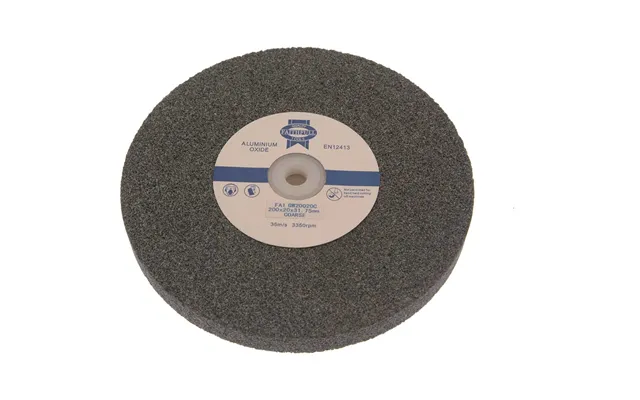

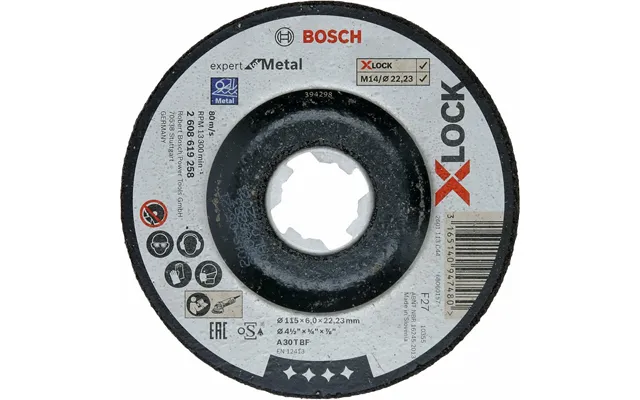

Bonded Abrasive Wheels

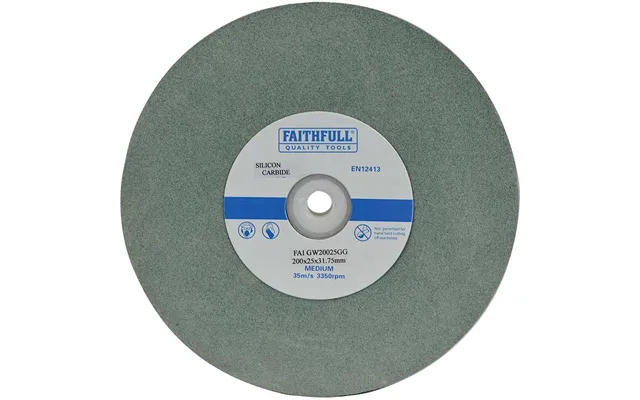

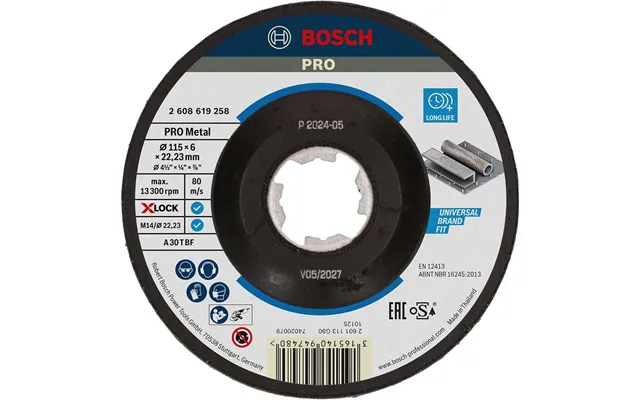

Bonded wheels use abrasive grains held together by a bond (vitrified or resinoid). They come in common sizes like 6", 8", and 12" for bench grinders and as 4", 4-1/2", and 5" for angle grinders. These are the everyday choices for shaping, deburring, and sharpening steel. The grit ranges from coarse (around 36 grit) for fast stock removal to very fine (up to 600 grit) for finishing work.

Diamond and CBN Wheels

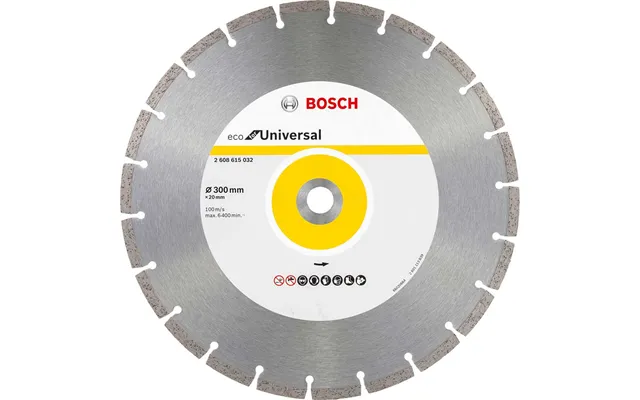

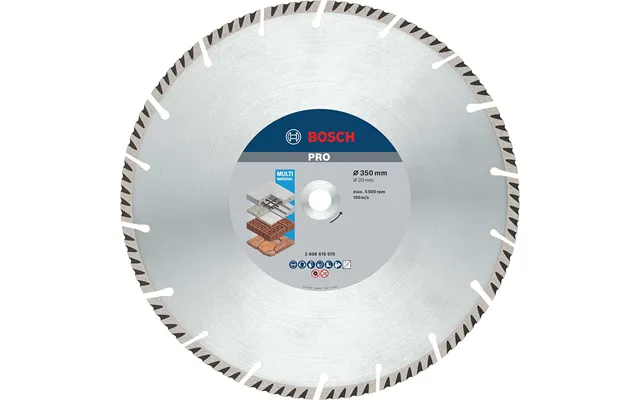

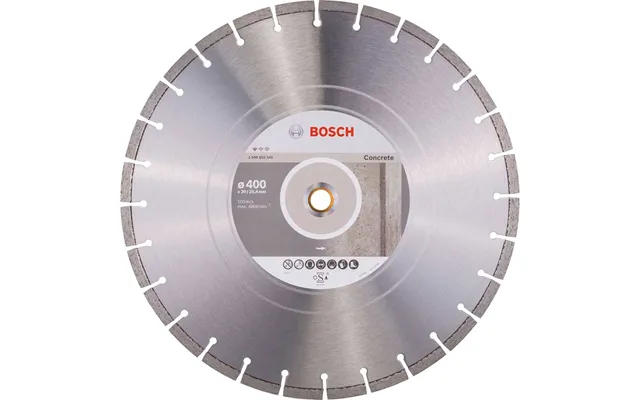

Diamond wheels are your go-to for cutting or finishing hard materials such as concrete, tile, or carbide tools. CBN (cubic boron nitride) wheels excel on high-speed steel and other ferrous metals. They cost more, but they last longer and retain shape under heavy use, which pays off if you grind a lot of the same tough material.

Mounted Points and Grinding Stones

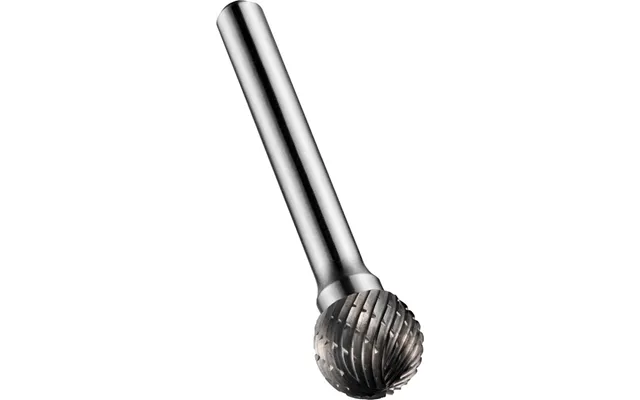

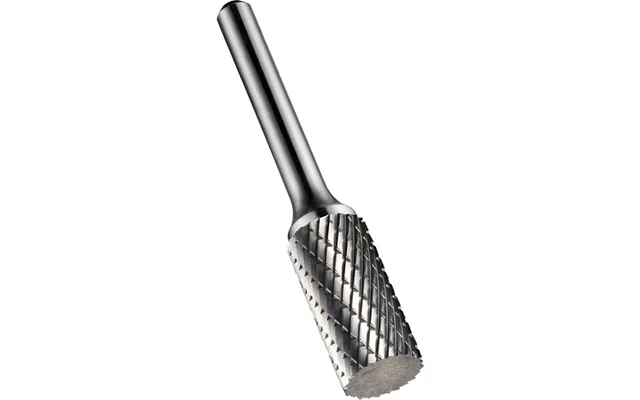

Mounted points are small, usually with a 1/8" to 1/4" shank, and come in a range of shapes: cylindrical, conical, ball, and tapered. They’re ideal for die grinders and flexible shaft tools when you need to grind inside grooves, around welds, or in confined areas. These are precision tools — use them when shaping beats brute force.

Common Accessories: Flap Discs, Wire Wheels, and Cut-Offs

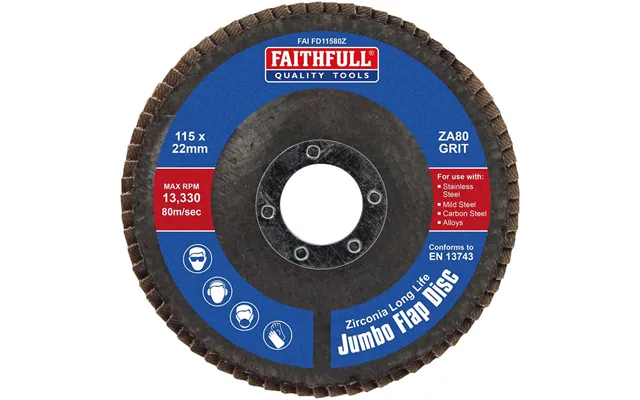

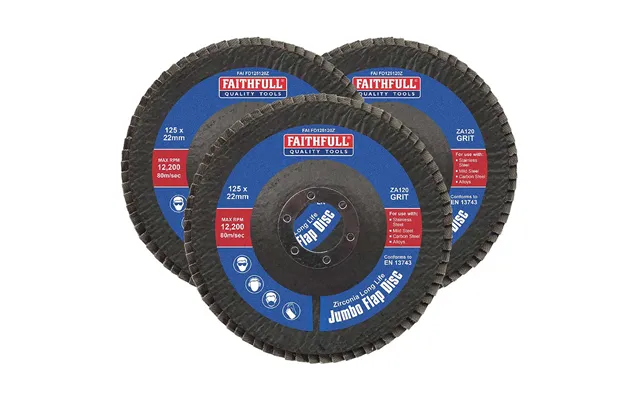

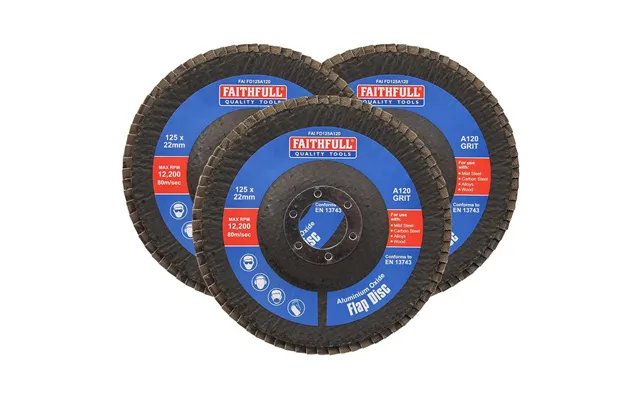

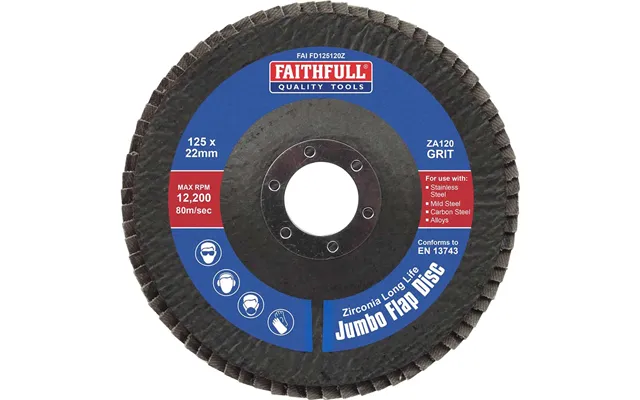

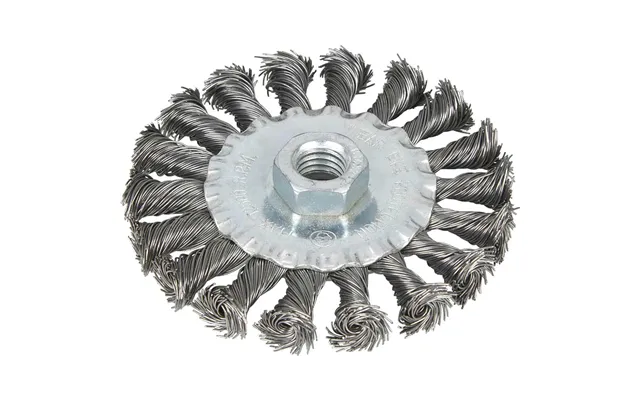

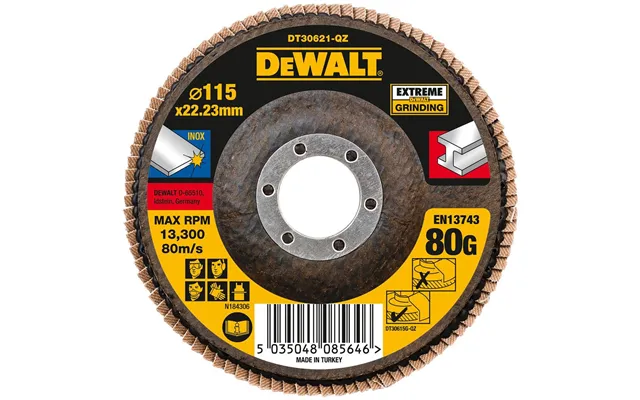

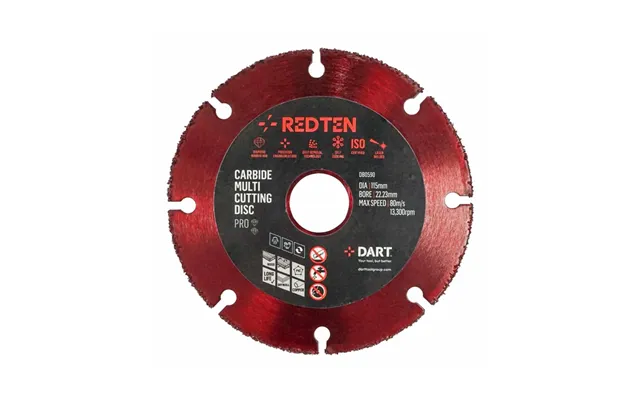

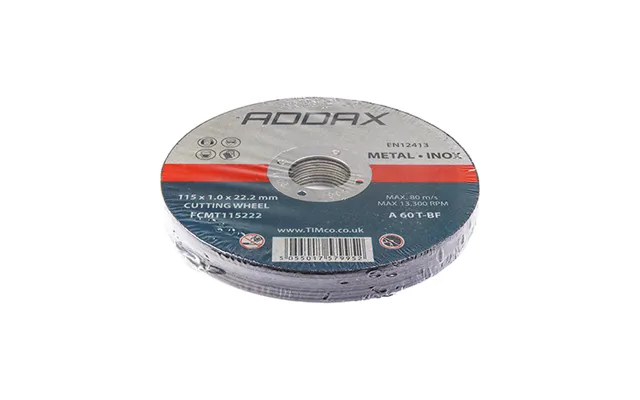

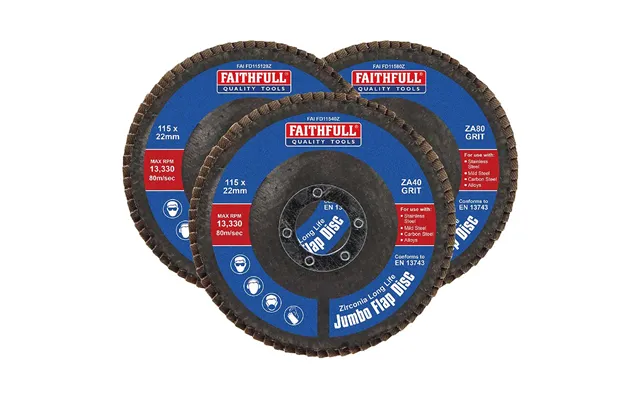

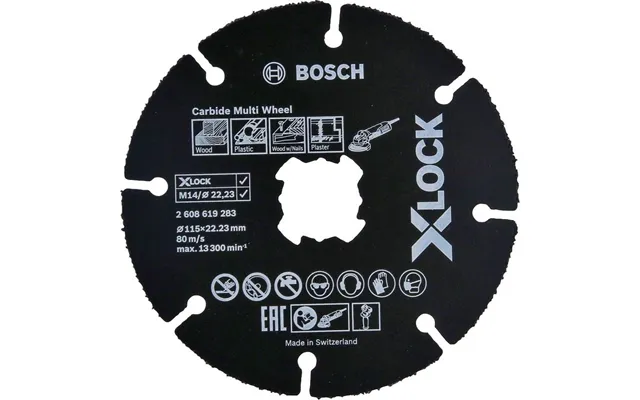

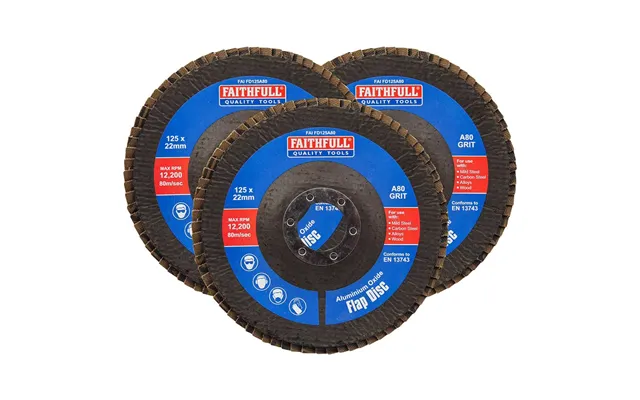

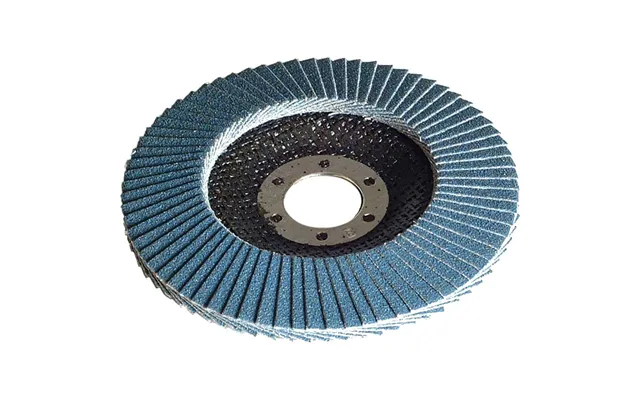

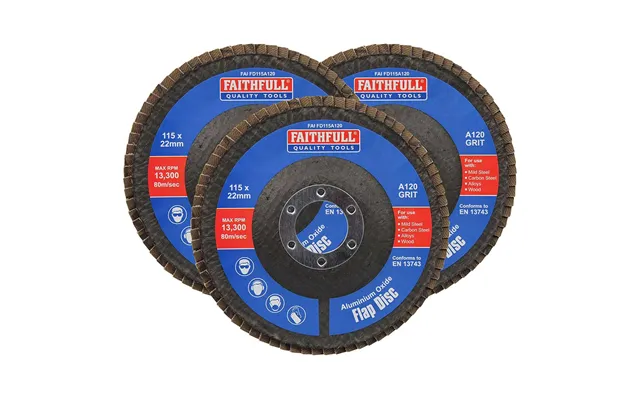

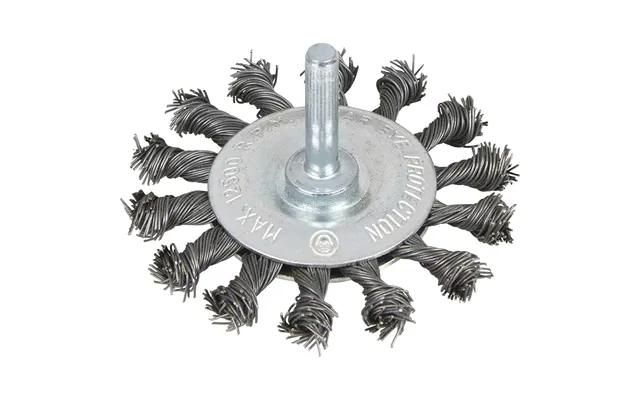

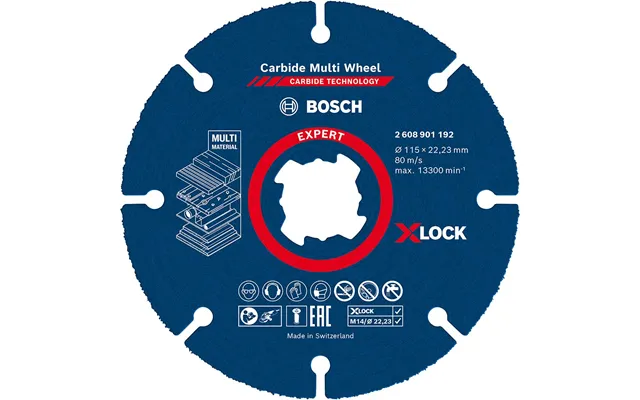

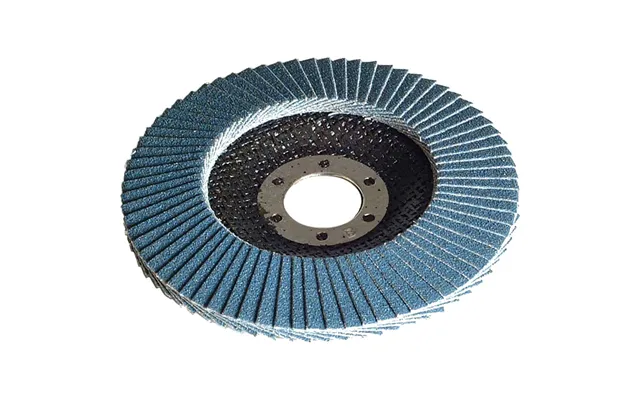

Beyond wheels and points, a few accessories broaden what you can do with your grinder. Flap discs are layered abrasive flaps that combine grinding and finishing; they’re perfect when you want a smooth surface after stock removal. Wire wheels and brushes remove rust, paint, and scale without cutting deep into the base metal. Cut-off wheels are thin and designed to slice through metal quickly — common sizes are 4-1/2" or 7/8" arbor for portable grinders.

Matching Grit, Bond, and Hardness to the Job

Choosing the right grit and bond is like matching shoe size to foot — the correct fit makes all the difference. Coarse grits (36–60) remove material fast but leave a rough finish; medium grits (80–120) balance speed and smoothness; fine grits (180–320 and up) create smooth finishes and prepare surfaces for polishing. Bond types control how the wheel breaks down: soft bonds shed grains quickly to expose fresh abrasive (good for harder metals), while hard bonds hold abrasive longer for softer materials. Don’t forget hardness grade and structure — these influence how aggressively a wheel cuts and how long it lives.

How to Read Wheel Markings

Most wheels carry markings that tell you grit size, hardness grade, abrasive type, and maximum safe speed (in RPM). Always match or exceed the wheel’s max RPM with a tool that runs at or below that speed. For example, a stone rated to 3,600 RPM shouldn’t be mounted on a grinder that spins at 5,000 RPM. If you see numbers like 4", 1/4" x 1/4", that usually refers to diameter, thickness, and arbor size — measured in inches in this guide.

Safety First: PPE, RPM, and Mounting

Grinding is noisy, sparks fly, and fragments can launch at high speed. Personal protective equipment (PPE) is non-negotiable: eye protection (safety goggles or a full face shield), hearing protection, gloves, and a dust mask or respirator for fine particles. Check a wheel’s maximum RPM and your tool’s speed. Never use a wheel with a cracked hub or damaged face. Mount wheels on the correct arbor size (common arbors are 1/2" and 5/8") and use the proper flanges; don’t overtighten — it can introduce cracks.

Wheel Inspection Checklist

Before each use, tap bonded wheels gently with a non-metallic tool — a clear ringing sound suggests integrity, while a dull thud may signal a crack. Inspect for chips, uneven wear, or glazing. With diamond wheels, check the cutting surface for glazing and ensure coolant paths (if wet grinding) are clear. For mounted points, confirm the shank and collet are snug and that the shank length meets the tool’s recommended engagement depth.

Tool Compatibility: Angle Grinder, Bench Grinder, or Die Grinder?

Pick the right tool for the wheel. Angle grinders handle 4" to 9" wheels and are portable powerhouses for cutting, grinding, and flap disc work. Bench grinders use 6" to 8" wheels and excel at tool sharpening and heavier stock removal. Die grinders take mounted points and small abrasive wheels for detail work. Matching tool speed and wheel type is crucial: a 1/4" mounted point is perfect for a die grinder spinning at 20,000 RPM, but it’s useless on a bench grinder that spins at 3,450 RPM.

Arbor and Shank Sizes to Watch

Arbor and shank standards matter. Common angle grinder wheel diameters are 4-1/2" and 5", while bench grinder wheels often measure 6" or 8". Mounted points typically use shanks of 1/8", 1/4", or 3/16". Always verify your tool’s spindle size and pick a wheel or adapter that fits securely without excessive wobble.

Maintenance and Wheel Dressing

Grinding wheels don’t last forever, but a little maintenance stretches their life and performance. Dressing a wheel restores a flat, true surface and unclogs the abrasive to expose fresh grains. Use a dressing stick or diamond dresser; run the dresser across the wheel at low speed with steady pressure. Keep equipment clean — remove buildup from flanges and guards — and store wheels flat in a dry place to prevent warping. If a wheel overheats, it can glaze or lose abrasive efficiency, so moderate your feed rate and consider cooling or switching to a coarser grit for heavy work.

Applications: What to Use for Common Projects

Wondering which wheel to pick for a specific task? For rough metal removal or shaping bolt heads, a 36–60 grit bonded wheel on an angle grinder will chew through material fast. For smoothing welds before painting, a flap disc in the 60–80 grit range gives a neat finish without removing too much metal. Want to sharpen blades or chisels? A fine bonded wheel on a bench grinder (around 120 grit) preserves the edge while forming a precise bevel. For working on masonry or tile, go with a diamond blade designed for wet use to reduce dust and extend life.

Specialty Situations: Stainless Steel and Hardened Materials

Stainless steel and hardened alloys require care. Use wheels and discs rated for stainless steel to avoid overheating and clogging — typically a non-iron abrasive like zirconia or ceramic blends works better. For hardened surfaces, CBN or diamond wheels may be the only practical choice. Keep grinding light, use coolant when possible, and avoid applying aggressive pressure that can alter temper or cause workpiece discoloration.

Shopping Tips: How to Compare Wheels and Save Money

When shopping, don’t be seduced by price alone. Consider the total cost per job: a cheap wheel that wears out fast can be more expensive over time than a premium wheel that lasts longer. Look for clear labeling of grit, bond type, maximum RPM, and material suitability. Read comparisons and reviews from reputable sources and compare similar products by size and intended use. If you buy online, verify return policies and compatibility details; if you shop in person, bring your tool’s specs (diameter, arbor, max RPM) so you pick the right fit.

When to Pay More

Pay extra for specialty wheels when they save time or increase quality — diamond wheels for tile and masonry, CBN wheels for high-speed steel, or high-quality flap discs when the finish matters. For hobbyists doing occasional grinding, mid-range bonded wheels typically provide the best balance of cost and performance.

Top Brands and Product Lines to Consider

Several manufacturers have earned solid reputations for grinding consumables and accessories. Look for brands that clearly mark max RPMs and provide a wide range of grit sizes and bond types. Established names often offer better QC and tighter tolerances, which means fewer balance issues and more consistent performance. If brand names matter to you, seek products with reliable warranties and good user feedback for the specific application you have in mind.

Conclusion

Grinding wheels and points are more than just round discs — they are precision tools that, when matched to the right job, make metalwork faster, safer, and cleaner. From coarse bonded wheels that remove a lot of material quickly to diamond wheels and tiny mounted points for precision shaping, there’s an option for every task. Remember to match grit and bond to the material, respect RPM ratings, use proper PPE, and maintain your wheels with dressing and careful storage. With the right choices, your grinder becomes an extension of your skill rather than a frustrating obstacle.
