Electrical Testing Tools

Best Electrical Testing Tools: A Practical Guide to Voltage Detectors, Clamp Meters and More

Why reliable electrical testing tools matter

When you're working with electricity, the right tool can mean the difference between a quick job and a dangerous mistake. Reliable electrical testing tools give you confidence, speed up diagnosis, and protect you from shocks and costly downtime. Think of them like a flashlight in a dark attic — inexpensive, lightweight, and suddenly everything becomes clear. Whether you're a DIYer, an electrician, or a facilities technician, knowing which electrical testers to carry can save time, money, and sometimes your fingertips.

Non-contact voltage detectors: quick, safe checks

Non-contact voltage detectors (NCVDs) are the pocket-sized scouts of electrical work — they tell you if a conductor is live without touching bare wires. These are perfect for quick checks before you start a job, especially when you want to confirm that a circuit is de-energized. They’re lightweight, require no complicated setup, and most models will fit in a toolbox or even a shirt pocket.

CK Non-Contact Voltage Detector Stick - Visual

The CK visual NCVD is a great entry-level pick for fast checks. With a bright visual indicator, it lets you confirm presence of AC voltage in outlets, sockets, and cables in a matter of seconds. If you value simplicity and visibility, a visual-only stick is like a traffic light on the job — green for safe, red for danger. It’s especially handy in cramped spaces where you don’t want to fumble with leads.

CK Non-Contact Voltage Detector Stick - Visual & Audible

For those times when a light alone isn't enough, the CK visual and audible NCVD adds a beep to the mix. The audible alert is useful on noisy sites or when you’re juggling hands-on tasks and can’t constantly glance at the tip. This model is ideal for quick walkthroughs, pre-checks before switching off breakers, or confirming dead circuits before opening junction boxes.

Kewtech Kewstickduo Dual Sensitive N C Voltage Detector Stick

Kewtech’s Kewstickduo steps up the game with dual sensitivity, which helps when you’re working near bundled cables or in panel situations where induced voltages can fool lesser detectors. Dual sensitivity lets you toggle between high and low ranges so you can isolate the live conductor more reliably — think of it as having both a magnifying glass and a telescope in one tool.

Two-pole and single-pole voltage testers: confirmed contact accuracy

If you need a higher level of certainty than a non-contact detector can offer, two-pole and single-pole voltage testers provide contact-based confirmation. They’re used to positively identify live conductors and to detect polarity. While NCVDs are great for speed, two-pole testers are the forensic tools: they tell you not just that voltage is present, but exactly where and how much.

Kewtech KT1710 & KT1780 two-pole voltage detectors

Kewtech’s KT1710 and KT1780 are two-pole testers designed for precision. The KT1780, for example, features an LED display and can detect up to 690 volts AC, making it suitable for domestic and light commercial work. Two-pole testers are ideal when you need to verify isolation on a conductor and avoid misleading induced voltages — it’s the difference between a quick glance and a fingerprint-level inspection.

Kewtech Single Pole Voltage Tester

Single-pole testers are compact and excellent for tracing live conductors or checking sockets quickly. A Kewtech single-pole tester will often give a clear light or beep when it detects voltage, and it’s especially useful when combined with a non-contact detector: NCVDs for speed, single-pole for confirmation.

CK Mains Tester Screwdriver options

CK mains tester screwdrivers are classic tools in many trade belts. Available in ranges like 120–250 volts AC and VDE-rated 125–250 volts AC, these screwdrivers provide a handy way to test outlets and fuses while doubling as a screwdriver for light work. The VDE-rated versions add insulation and safety that you’ll want when working on energized equipment or in damp environments. For heavy-duty situations, CK’s Mainstester covers 100–500 volts AC for broader voltage checks.

Clamp meters: measure current without breaking the circuit

Clamp meters are the champs for current measurement because they let you measure amperage without disconnecting the circuit. They’re ideal for HVAC, motor diagnostics, and troubleshooting overloaded circuits. Think of them as the stethoscope for electrical systems — they listen to current flow and tell you what’s healthy and what’s strained.

Kewtech Open Jaw Clamp Meter

Kewtech’s open jaw clamp meters are designed for fast work on larger conductors where a standard jaw might struggle. The open jaw design often allows easier access in crowded panels and around busbars, giving you the ability to clamp around conductors from awkward angles. If you work on distribution boards or industrial equipment, an open jaw clamp meter can speed things up significantly.

Kewtech Digital 400–600V AC Clamp Meter and AC/DC versions

Kewtech’s digital clamp meters that cover 400 to 600 volts AC (and AC/DC versions) add voltage measurement to current checks, making them multi-talented. A clamp meter that reads both AC and DC current is particularly useful on equipment with inverters, battery systems, or modern motor drives where DC components are present. With features like auto-ranging, data hold, and backlit displays, these meters are built for both field and bench use.

Choosing the right tester for the job

Picking the right electrical testing tool depends on the task, environment, and level of precision required. Ask yourself: are you making a quick safety check, doing diagnostic work, or performing compliance testing? For quick visual checks use NCVDs; for absolute confirmation use two-pole testers or digital multimeters; for current diagnostics use clamp meters. Also consider whether you need VDE or CAT safety ratings — they’re your insurance when working on live systems.

Complementary electrical testers worth owning

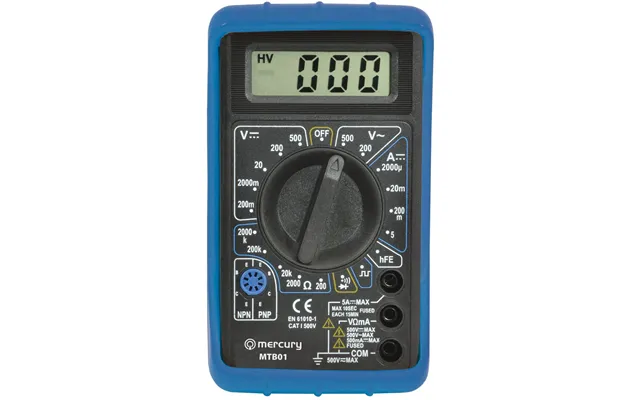

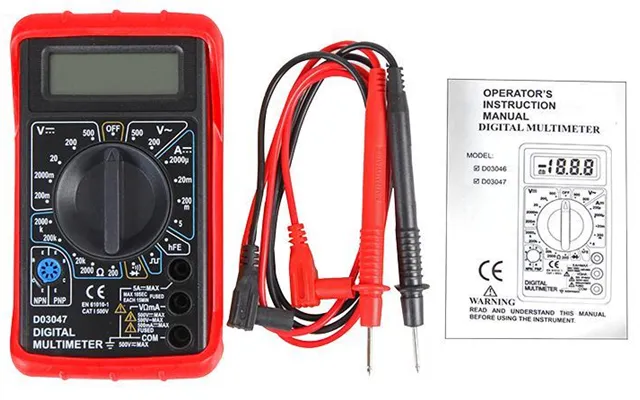

Beyond the products listed, there are several complementary testers that round out a pro’s kit. A true RMS digital multimeter with continuity, capacitance, and resistance functions will cover everyday testing needs. Insulation resistance testers (often called megohmmeters) are essential for motor windings and cable insulation checks. Socket testers quickly verify wiring and earth presence, while earth loop and RCD testers help confirm protective device performance. Finally, a continuity tester and a thermal camera (for spotting hot connections) can make troubleshooting much faster.

Recommended accessories: leads, probes and carry gear

A good set of insulated test leads with shrouded banana plugs and probe tips, a pair of crocodile clips, and a durable carry case will protect your tools and make fieldwork easier. Lead lengths of around 6 ft give you mobility without tangling, while 3 ft leads are handy for bench work. Don’t forget replacement batteries and a small set of fuses for DMMs — it’s a lot less painful to replace a fuse on the job than to delay a whole project.

Safety tips and best practices

Safety isn’t optional with electrical testing — it’s a habit. Always check that your tester is rated for the system voltage and category you’re testing (CAT II, CAT III, CAT IV). Inspect leads for cuts or exposed wires before use, and never assume a circuit is dead without testing. Use appropriate PPE like insulated gloves and safety glasses, and keep one hand away from live parts when possible to reduce shock risk. Finally, follow a lockout/tagout procedure when isolating circuits for major work.

Budget picks vs pro-grade tools

On a tight budget, non-contact detectors and cheap mains test screwdrivers may be all you need for basic safety checks. But for repeatable diagnostics and site compliance, pro-grade tools pay for themselves through durability, accuracy, and safety features. Pro meters often include True RMS readings, higher CAT ratings, and better warranty and calibration support. Consider the frequency of use: if a tool sees daily service, it’s worth investing a bit more upfront.

Maintenance and calibration

To keep readings accurate and tools safe, perform regular maintenance and calibration. Clean contacts and probe tips, replace worn leads, and store devices in a dry case. For professional use, annual calibration is a common practice — like a yearly physical for your instruments. Calibration certificates are important for commercial work where traceability and compliance matter, so factor calibration costs into your tool budget.

Where to compare and find deals

When you’re ready to buy, comparison sites and specialist electrical wholesalers can help you weigh features and prices. Look for detailed specifications — jaw size for clamp meters (often around 1 to 2 inches), voltage range, sensitivity settings on NCVDs, and VDE or CAT safety ratings. User reviews and technical support availability are also helpful when deciding between similar models.

Practical scenarios: which tool to use when

Here are some quick scenarios: before opening a consumer unit, use a non-contact detector for a first sweep, then a two-pole tester to confirm a dead conductor. If a motor is running hot, use a clamp meter to check current draw and a thermal camera to find hot connections. For factory maintenance, an insulation tester checks motor windings before re-commissioning. These little routines create habits that help you work faster and safer.

Future-proofing your toolkit

As electrical systems evolve with renewables and inverter-driven motors, consider tools that handle AC and DC measurements and can handle higher frequencies. Multimeters and clamp meters that offer data logging and Bluetooth connectivity can save time by recording readings for later analysis. Investing in a flexible toolkit now reduces upgrade needs later — like buying a multi-tool that grows with your projects.

Final checklist before you head to the site

Before you leave for a job, quickly check your toolkit: NCVD, two-pole tester, clamp meter, multimeter, spare leads, fuses, batteries, and a basic insulation tester if the job requires. Add a flashlight, note the rated voltage of the system you’ll test, and confirm you have the right PPE. A prepared toolbox saves time on site and keeps you confident when the work gets busy.

Conclusion

Choosing the right electrical testing tools comes down to understanding the task and matching it with the proper level of precision and safety. From pocket-friendly non-contact voltage detectors to robust Kewtech clamp meters and CK mains testers, there’s a tool for every part of the job. Invest in safety-rated gear, keep tools calibrated, and pair quick-check devices with contact-based testers for reliable, repeatable results. With the right kit and a few best-practice habits, electrical testing can be faster, safer, and a lot less stressful.
