The Complete Guide to Sprinklers & Sprinkler Heads: Choose, Install, and Save on Lawn Watering

Introduction to Sprinklers & Sprinkler Heads

Thinking about upgrading your lawn or garden watering setup? You’re in the right place. Sprinklers and sprinkler heads are the heart of any irrigation system, turning messy watering chores into a quiet, automatic routine. Whether you’re treating a small turf patch or a multi-zone landscape with beds, trees, and containers, picking the right components makes the difference between a lush lawn and wasted water. This guide walks you through types, specs, installation basics, maintenance, and top products so you can make smart choices and keep your greenery thriving.

Why Modern Sprinklers Matter for Your Lawn

Old sprinkler systems can be like an over-enthusiastic faucet: they waste water, give uneven coverage, and create puddles instead of healthy turf. Modern sprinkler heads and controllers bring precision—think measured arcs, tailored flow rates, and zone-based scheduling. That precision not only improves plant health but also cuts your water bill. Imagine replacing a one-size-fits-all approach with a system that waters the lawn at the right time, in the right amount, and only where needed.

Types of Sprinkler Systems: Which One Fits Your Yard?

Sprinkler systems fall into a few broad categories, each suited to different lawn shapes, soil types, and watering goals. Below are the common types and quick tips to pick between them.

Pop-up Spray Heads

Pop-up spray heads are compact and sit flush with the ground until water pressure raises them. They’re ideal for small to medium areas and deliver a fixed spray pattern—often 4, 8, or 12 feet of radius depending on the nozzle. These heads are perfect for flowerbeds, narrow strips, and small lawns where close spacing gives uniform coverage.

Rotors and Gear-Driven Rotors

Rotor sprinklers spin to cover larger distances—typically from about 18 to 50 feet of radius. They’re great for big lawns and open areas. Gear-driven rotors move smoothly and are quieter; impact rotors offer robustness for rougher water conditions. If you need fewer heads per zone and want long throw, rotors are the efficient choice.

Oscillating and Traveling Sprinklers

Oscillating sprinklers produce a rectangular pattern and are excellent for watering longer strips of turf, while traveling sprinklers move across the lawn on tracks for temporary coverage. These are often used as portable or seasonal solutions when a permanent underground system isn’t warranted.

Drip Irrigation & Micro-Sprinklers

Drip systems and micro-sprayers deliver water slowly at the root zone—a terrific option for flower beds, shrubs, and vegetable gardens. They use much less water than sprays or rotors and reduce evaporation and runoff. Consider drip lines for beds and trees and micro-sprinklers for small planting islands.

Key Specs to Compare Before Buying Sprinkler Heads

When comparing heads, don’t get distracted by looks—focus on flow rates, pressure requirements, radius, and nozzle options. These factors determine how well a head will perform on your property.

Flow Rate and Pressure (PSI and GPM)

Flow rate is measured in gallons per minute (gpm) and pressure in pounds per square inch (psi). Most spray heads operate well between 20–30 psi and 0.5–3 gpm depending on the nozzle. Rotors often need 30–50 psi but use higher gpm. Matching head requirements to your zone’s water supply is crucial. Too little pressure gives poor coverage; too much can cause misting and waste.

Coverage Radius and Pattern

Radius is measured in feet and tells you how far a head throws water. Spray heads cover short radii—typically 4–12 feet—while rotors reach 18–50 feet or more. Look for adjustable nozzles and customizable arc settings so you can fine-tune overlap and avoid watering sidewalks or driveways.

Choosing the Right Sprinkler Head for Different Lawn Zones

Think of your yard as a set of zones: lawn, beds, trees, and hardscapes. Each needs a different approach. Use spray heads for lawns under 20 feet wide, rotors for large open lawns, and drip or micro-sprays for beds and shrubs. For shady areas, reduce run time; for sunny, exposed turf, increase it. Matching the head to the plant and soil type will yield the best results.

Installation Basics: Planning, Trenches, and Layout

Good installation starts with planning. Sketch your yard, mark existing water sources, and identify slopes, drainage, and sun exposure. Divide the yard into zones so each valve only supplies heads with similar pressure and flow needs. Proper layout ensures even coverage and avoids hydraulic imbalances that cause poor performance.

Layout Planning Tips

Use head-to-head coverage: place each head so the spray reaches the next head. This overlap prevents dry spots. Space spray heads every 6–12 feet depending on the nozzle and rotor spacing of 20–40 feet. Consider burying pipes at least 6–8 inches deep in areas with foot traffic to avoid damage and freezing.

Valve, Controller and Zoning

Valves control each zone and should be placed in a valve box for easy access. Controllers (timers) let you schedule zones by run time; modern controllers allow multiple start times per day. If possible, group plants with similar water needs on the same zone—this is the easiest way to avoid over- or under-watering.

Maintenance and Troubleshooting: Keep Your System Healthy

Routine maintenance is short work compared to emergency repairs. Seasonal checks, head cleaning, and occasional adjustments keep systems efficient and extend their life. Think of it like giving your irrigation a tune-up instead of waiting for a breakdown.

Common Issues and Quick Fixes

Uneven coverage often means clogged nozzles, low pressure, or misaligned heads. Replace worn nozzles, clear debris, and check for leaks. If you see puddles or runoff, reduce run time or break cycles into shorter periods to allow absorption. Replace cracked pop-up stems and worn seals to stop leaks at the source.

Winterizing Your System

In climates that dip toward freezing, blow out the irrigation lines with compressed air to remove water that can freeze and crack pipes. Use an air compressor set to the recommended psi for your system—typically under 50 psi for most residential lines—and cycle zone by zone. Remove and store above-ground components like hoses and portable timers.

Water-Saving Strategies & Smart Controllers

Saving water doesn’t mean your lawn has to suffer. Smart controllers, soil moisture sensors, and smart scheduling can lower water use while maintaining healthy turf. Think of them as the brain that prevents your system from watering when nature already has it covered.

Smart Controllers and Sensors

Weather-based controllers adjust schedules using local forecasts, while soil moisture sensors stop zones when the ground is already wet. These tools can cut water use drastically—often by 20–40%—by preventing unnecessary run times triggered by rain or cool weather. They’re a smart upgrade if you want hands-off efficiency.

Best Times and Techniques to Water

Water early in the morning—before sunrise—so evaporation is minimal and foliage dries quickly, reducing disease risk. Use cycle-and-soak: multiple short cycles separated by 20–30 minutes let water soak instead of running off. That technique is especially useful on slopes and compacted soils.

Top Brands and Products to Consider

Several reliable brands dominate the irrigation market; they offer a range of heads, rotors, controllers, and valves that fit most needs. Here are some popular names and why homeowners choose them.

Rain Bird

Rain Bird is known for durable rotors and versatile nozzles. Models like the Rain Bird 5000 series are popular for rotors and pop-up spray heads, offering adjustable arc, multiple nozzle choices, and easy maintenance. Good for large lawns and professional-style systems.

Hunter

Hunter products are feature-rich, with the PGP and I-20 rotors widely used for reliable coverage and long service life. Hunter controllers often include smart features and modular expansion options that suit growing systems.

Orbit and Gardena

Orbit and Gardena provide user-friendly options for DIYers, from oscillating sprinklers and travel units to pop-up spray kits. These brands often balance affordability with decent performance, so they’re great if you’re putting in a simple system yourself.

Hozelock and Other Regional Brands

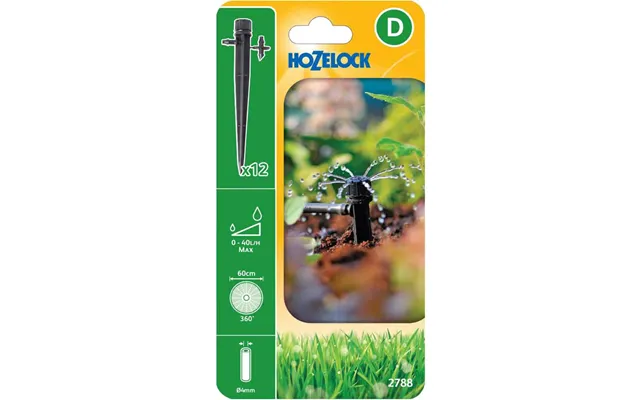

For smaller gardens, Hozelock and similar brands offer compact sprinklers and drip kits tailored to beds and containers. They’re ideal for gardeners who need flexible setups without full underground piping.

Budgeting & Buying Tips (Compare Before You Commit)

Costs vary widely depending on system complexity. A basic DIY setup with a few spray heads and a timer can be modest, while a full multi-zone system with rotors, smart controller, and drip lines will be a larger investment. Get quotes for parts and installation, compare flow and pressure requirements, and read reviews to find the best fit for your budget and yard size.

Installation: DIY or Hire a Pro?

If you enjoy hands-on projects, a straightforward system is doable as a weekend job—especially with pop-up sprays and basic controllers. For larger zones, complex hydraulics, or tricky properties with multiple slopes, hiring a pro can save time and avoid costly mistakes. Pros can properly size pumps, set up zones, and integrate smart controllers for long-term savings.

Conclusion

Choosing the right sprinklers and heads is about matching your yard’s needs to the system’s strengths—radius, flow, and control. From pop-up sprays for small lawns to rotors for wide open spaces and drip for beds, there’s a solution for nearly every landscape. Plan your zones, match pressure and gpm, consider smart controllers, and keep up with simple maintenance to enjoy a healthy lawn and lower water bills. With the right setup, your irrigation system becomes a reliable ally that waters efficiently and keeps your garden looking its best all season long.
