How many GPM do I need for typical lawn sprinklers?

Many lawn zones run between 15–40 GPM depending on the number and type of heads. Add up each head’s flow (often 1–3 GPM for sprays and 2–5 GPM for rotors), then choose a pump that can deliver that flow at about 40–60 PSI at your sprinkler heads. Always confirm with your nozzle charts and include a safety margin of around 10–20%.

Can I use one pump for both sprinklers and drip irrigation?

Yes, but you’ll need proper control and regulation. Use the pump sized for your highest-demand zone (usually sprinklers), then add a pressure regulator and filter to the drip branch to keep pressure around 20–30 PSI and protect emitters. Zone valves or a manifold let you run drip separately from high-pressure circuits so everything gets the right flow.

What’s the difference between PSI and head in feet?

PSI is pressure; head in feet is a way to express the same energy in height terms. You can convert PSI to feet by multiplying by 2.31. For example, 50 PSI is roughly 116 feet of head. Pump performance charts often use head in feet, so convert your target PSI to feet, add elevation and friction, and you’ve got your total dynamic head.

How do I quiet a noisy pump installation?

Mount the pump on a solid base with rubber isolation pads, keep the suction line straight and adequately sized, and avoid elbows right at the inlet. Add a short length of flexible hose on the discharge to reduce vibration transfer. A ventilated enclosure or pump cover also helps muffle sound while protecting from weather. Cavitation noise? Check for suction restrictions or air leaks.

Do I need a pressure tank with a booster pump?

A small tank is highly recommended, even with smart controls. It reduces rapid cycling, stabilizes pressure, and gives you a buffer for small draws like quick hand washes. For basic boosters, pair a pressure tank with a pressure switch (for example, 40/60 PSI). For variable speed boosters, a smaller tank still improves comfort and extends component life.

Unlock Incredible Savings on Pumps in the UK!

Sprinkler, Booster & Irrigation System Pumps	Price
Stans Tubeless Sealant Injector	£14.00
Mc450 Oxy Pump For Gt Nft Systems	£17.99
Draper Expert Epdm Pump Sprayer	£29.95
Draper Expert Epdm Pump Sprayer	£29.95

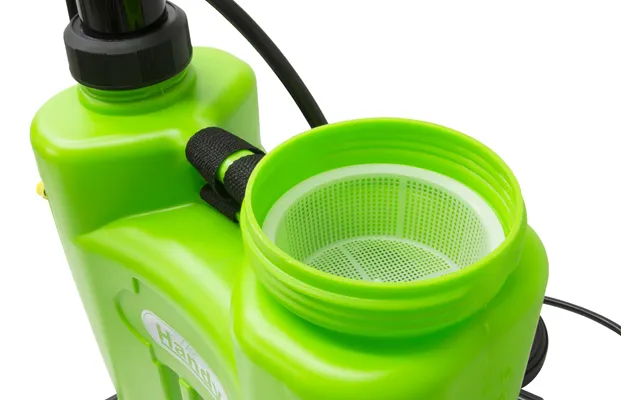

16ltr Knapsack Sprayer	£30.36

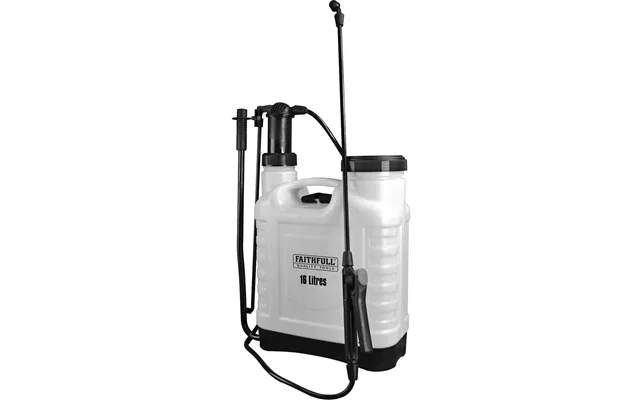

Faithfull Pressure Sprayer Knapsack	£45.95
Vevor Air-operated Double Diaphragm Pump - 1 2 In Inlet & Outlet	£74.90

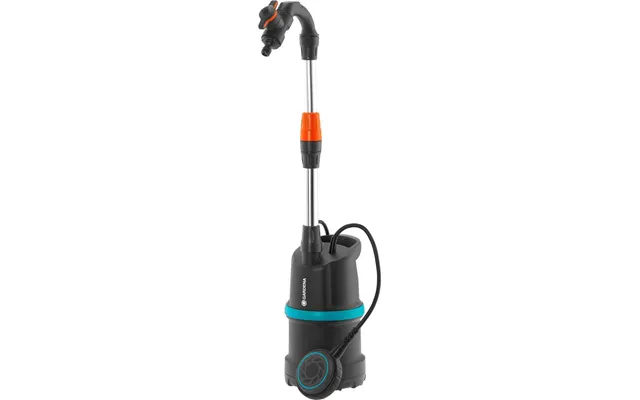

Gardena 4000 1 Water Butt Or Tank Submersible Water Pump	£87.59
Gardena 2000 2 P4a 18v Cordless Rainwater Submersible Water Butt Tank Pump	£149.95
Kit Pump Connection-25m Forf2630	£2,643.09

Best Sprinkler, Booster & Irrigation System Pumps: How to Choose, Size, and Save on the Right Setup

Why the Right Pump Matters for Your Lawn and Garden

If your sprinklers sputter, your hose trickles, or your drip lines underperform, you’re not alone. The pump behind your system is the heart of the whole operation. Choose well, and you’ll get even coverage, steady pressure, and healthier plants without wasting water or energy. Choose poorly, and you’ll battle dry patches, hose bursts, and skyrocketing bills. The good news? With a little guidance, picking the right sprinkler, booster, or irrigation pump is far easier than it looks.

Sprinkler Pumps: What They Are and When to Use Them

Sprinkler pumps are typically surface-mounted centrifugal pumps designed to move a lot of water at moderate pressure. They’re great for drawing from a storage tank, rainwater barrel, pond, or shallow source and pushing water to lawn sprinklers or garden zones. If you need to run several sprinkler heads at once, or you’re feeding a large lawn circuit, a dedicated sprinkler pump is often the most efficient and cost-effective way to get the job done.

How Sprinkler Pumps Work

Think of a sprinkler pump like a water merry-go-round. The impeller spins, flinging water outward and forward through your pipes. Because they’re centrifugal, they excel at delivering steady flow across multiple outlets. Many are self-priming, meaning they can clear air from the suction line after initial setup. You’ll usually mount them near your water source, with a short, straight suction line to help the pump pull water smoothly without cavitation or air leaks.

Key Specs to Compare (GPM, PSI, Head)

When browsing sprinkler pumps, focus on gallons per minute (GPM), pressure in pounds per square inch (PSI), and total head in feet. GPM tells you how much water the pump can move, PSI indicates the pressure available for your sprinklers, and head combines vertical lift plus friction loss. For many lawns, 40–60 PSI at the sprinkler heads and 20–60 GPM across a zone is a good ballpark, but your needs depend on the number and type of heads you run.

Best Use Cases and Setup Tips

Use a sprinkler pump when your municipal supply is weak, you’re drawing from a tank or pond, or you’re running several pop-up heads. Keep suction lines short and wide—1 in or 1.25 in pipe often helps—and add a foot valve and strainer at the intake. A check valve near the pump helps hold prime. Mount on a solid base, protect from weather, and consider a pump cover to reduce noise and shield from rain and debris.

Booster Pumps: Fix Low Water Pressure the Smart Way

Booster pumps increase pressure in existing lines, making showers stronger and sprinklers more reliable without overhauling your plumbing. If your taps dribble or your sprinklers won’t pop up, a booster might be your hero. Place it after your water meter or downstream of a storage tank. Many units include a pressure switch, flow sensor, or even variable speed control to keep pressure steady as demand changes throughout the day.

Single-Stage vs Multi-Stage Boosters

Single-stage boosters are simple, rugged, and perfect for modest homes or small irrigation circuits. Multi-stage boosters stack impellers to deliver higher pressures with quieter, smoother operation—ideal when you want consistent 50–70 PSI across multiple fixtures or mixed zones. If your system sees wide swings in demand, a multi-stage unit often keeps everything stable, from the kitchen sink to the farthest sprinkler head in the yard.

Features That Make a Difference (Pressure Switch, VFD)

Look for a built-in pressure switch to automate start/stop, a pressure gauge for quick diagnostics, and dry-run protection to prevent damage if water runs out. Variable frequency drive (VFD) boosters adjust speed to match demand, saving energy and preventing pressure spikes. Add a small pressure tank to smooth cycling and reduce wear. Quiet operation, corrosion-resistant housings, and a clear priming port are quality-of-life features you’ll appreciate daily.

Irrigation System Pumps for Drip and Micro-Spray

Drip irrigation and micro-sprays thrive on steady, gentle pressure rather than brute force. While some sprinkler pumps can be dialed down for drip, many gardeners prefer a dedicated irrigation pump paired with filters and regulators. The result? Targeted watering, fewer weeds, and happier plants—all while using less water than traditional sprinklers. If you’re nurturing beds, borders, vegetables, or containers, this setup shines.

Diaphragm vs Centrifugal for Drip

Diaphragm pumps excel at lower flows with precise pressure, making them a good match for delicate emitters. Centrifugal pumps can also serve drip systems if you add a pressure regulator to keep output within the typical 20–30 PSI range many emitters prefer. For mixed systems—say, drip beds plus a small spray zone—choose a pump with enough GPM for the spray and use regulators on drip lines to prevent over-pressurizing.

Filtration, Regulators, and Backflow Protection

Drip emitters clog easily, so add a fine filter on the discharge side. A pressure regulator protects emitters from spikes, and a backflow preventer safeguards your potable supply by stopping irrigation water from reversing direction. If you draw from rain barrels or a pond, install a suction strainer and consider a secondary filter. These low-cost add-ons save headaches, extend component life, and keep water quality high.

Sizing Your Pump: A No-Stress Guide

Sizing sounds technical, but it boils down to matching your required flow (GPM) and pressure (PSI) with a pump that can deliver those numbers at your system’s total head in feet. List your zones, tally the sprinkler or emitter demands, estimate elevation changes, and account for friction in pipes and fittings. With those figures, you can pick a pump that hits your target without overworking or wasting power.

Step 1: Calculate Total Flow in GPM

Add up the GPM for all devices running simultaneously in a zone. A typical pop-up spray head might be 1–3 GPM, while a rotor could be 2–5 GPM depending on nozzle size. For drip, add the GPH of emitters and divide by 60 to get GPM. If you plan to run two lawn zones at once, combine their totals. Keep future upgrades in mind so you don’t end up underpowered next season.

Step 2: Determine Total Dynamic Head in feet

Total dynamic head (TDH) combines static lift (vertical height difference), friction losses, and the pressure you want at the outlets. Convert your desired PSI to feet by multiplying by 2.31; for example, 50 PSI equals about 116 feet of head. Add elevation changes and an estimate for pipe friction (often 10–30 feet depending on length and diameter). The sum is your TDH—your pump must meet that at your target GPM.

Step 3: Match Pump Curve and Safety Margin

Every pump has a curve showing how much flow it delivers at various heads. Find your GPM and TDH point, then select a model that meets or slightly exceeds it. Build in a cushion of roughly 10–20% for real-world losses and seasonal changes. Oversizing drastically can cause short cycling and wasted energy, while undersizing leaves heads underperforming. Aim for the sweet spot where the pump runs efficiently and quietly.

Installation Basics: From Pipework to Power

A clean, thoughtful installation is half the battle. Use straight, appropriately sized suction lines—avoid sharp elbows right at the inlet. On discharge, step down to your zone piping as needed. Mount the pump on a firm, level base with vibration pads. Keep electrical connections safe and dry, and route wiring neatly. Label valves and circuits so future tweaks or troubleshooting won’t feel like a guessing game.

Suction Plumbing and Foot Valves

Suction side issues cause most pump headaches. Use 1 in or larger suction pipe if your flow is high, keep runs short, and ensure airtight connections. A foot valve at the water source prevents the line from draining, making priming easy. Add a screen or basket to stop debris from entering the pump. If you’re pulling from a pond, position the intake a few feet below the surface but well above sediment.

Priming and Check Valves

Unless your pump is truly self-priming, fill the housing and suction line with water before first start. A check valve near the pump discharge helps hold prime and prevent backflow. If your system branches into multiple zones, install isolation valves so you can service one area without shutting everything down. A pressure gauge right after the pump is invaluable for quick checks and fine-tuning regulators.

Electrical and Safety Considerations

Follow manufacturer specs for voltage and amperage, and use a properly rated breaker. Outdoor outlets should be weather-protected and on a GFCI circuit. Keep cords off the ground and away from water. If in doubt, hire a qualified electrician—saving a few dollars isn’t worth the risk. Finally, mount the pump where it’s sheltered from splash and rain, and consider a ventilated enclosure to reduce noise and extend lifespan.

Smart Controls and Energy Efficiency

A smartly controlled system waters better and costs less to run. Timers, sensors, and variable speed pumps tailor performance to real-time conditions and demand. With the right setup, you’ll deliver exactly the pressure and flow your landscape needs—no more, no less. The result is greener grass, vibrant beds, and lower utility bills, all with less babysitting and guesswork.

Timers, Wi‑Fi Controllers, and Leak Detection

Use programmable timers to water at optimal times—early morning reduces evaporation and wind drift. Wi‑Fi controllers let you adjust schedules on the fly and pause watering during rainy spells. Add a flow sensor or leak detector to catch broken lines or stuck valves before they flood a bed. For drip, a simple on/off timer combined with a pressure regulator keeps things precise and consistent.

Variable Speed Boosters and Energy Savings

Variable speed (VFD) booster pumps ramp up or down to maintain set pressure, saving energy when demand is low and preventing pressure spikes that stress pipes and fixtures. They run quieter, too. While the upfront cost is higher, the payback comes from lower electricity usage, longer equipment life, and a smoother user experience. If you have mixed uses—showers, taps, sprinklers—a VFD booster is an elegant solution.

Maintenance, Troubleshooting, and Winter Prep

Like any hard-working appliance, pumps last longer with a little care. A quick seasonal checkup can prevent most failures. Keep intakes clear, pipes tight, and controls calibrated. If something goes wrong, a pressure gauge, a clear priming port, and a few simple tests will usually point you to the culprit fast—often a clogged filter, air leak, or stuck valve rather than the pump itself.

Routine Checks and Common Fixes

Inspect filters and strainers every few weeks in peak season. If pressure drops, look for air bubbles in the priming port—air leaks on the suction side are common. Tighten fittings, replace worn O‑rings, and check the foot valve. If the pump short cycles, add or check a pressure tank. Noisy operation? Look for cavitation caused by restriction on the suction side or debris in the impeller housing.

Winterizing Outdoor Pumps and Lines

Freezes can crack housings and split pipes. Before hard frost, drain and blow out irrigation lines with compressed air, open low-point drains, and remove end caps. Drain the pump housing and store removable equipment indoors if possible. For permanent installs, use an insulated cover and heat cable if needed. A few minutes of prep in late fall prevents costly spring surprises.

Accessories and Add‑Ons Worth Considering

The right accessories turn a good pump into a great system. Pressure tanks reduce cycling, filters protect emitters, and backflow preventers keep water safe. Quick-connects, manifolds, and hose splitters make reconfiguring zones quick and clean. With thoughtful add‑ons, you’ll spend less time fiddling and more time enjoying a lush, evenly watered landscape.

Pressure Tanks and Surge Protection

A small pressure tank—say, 2–6 gallons—creates a buffer that smooths pressure and reduces on/off cycling, which is gentler on your pump motor. Pair it with a pressure switch tuned to your needs (for example, 40/60 PSI). Surge protection on the electrical feed is a smart, inexpensive safeguard against voltage spikes that can fry sensitive pump electronics or smart controllers.

Hoses, Manifolds, and Quick‑Connects

Use heavy-duty hoses rated for the pressure your pump produces. A manifold with ball valves lets you split flow to garden zones, wash stations, or sprinklers without a tangle of adapters. Quick-connect couplers make seasonal setups easy: snap in a drip zone in spring, swap to a sprayer in summer, and disconnect everything quickly for winterization. It’s like having a toolbox built into your hose bib.

Finding Great Deals and Comparing Offers in the UK

Prices and features vary widely, so comparing offers pays off. Look beyond headline discounts to confirm the specs actually match your needs—don’t pay for 90 GPM if your zones only ever need 25 GPM. Read listings carefully, check included accessories, and verify warranty terms. Comparison platforms make it easier to put pumps side-by-side so you can sort by GPM, PSI, horsepower, noise level, and smart features in one view.

What to Look For in Listings and Specs

Confirm horsepower (HP), max head in feet, and the flow at your target head—not just at zero head. Watch motor ratings (120V or 240V), housing materials (cast iron, stainless, thermoplastic), and duty cycle. For sprinkler use, look for self-priming and corrosion resistance. For boosters, look for pressure range, included tank, and VFD options. For drip, look for fine filtration and stable low-pressure control.

Warranty, Support, and Spare Parts

A few extra dollars for strong warranty coverage is often money well spent. Check whether seals, impellers, and pressure switches are easy to source. Clear manuals, responsive support, and widely available spare parts make ownership smoother and cheaper long-term. If you see a model with abundant reviews and common service kits, that’s a strong sign you’re choosing a reliable, maintainable pump.

Popular Use Cases: Match the Pump to the Job

Every home and garden is different, so start with your priority. Want a lush lawn with pop-up heads? A mid-range sprinkler pump delivering around 40–60 PSI at 20–40 GPM per zone might be perfect. Battling weak indoor taps and outdoor spigots? A compact booster with a small tank can transform daily life. Planting raised beds and borders? A low-pressure irrigation pump plus filter and regulator will water efficiently, even during dry spells.

Rainwater and Storage Tank Setups

If you collect rainwater or store harvested water, a self-priming sprinkler or irrigation pump connected to your tank is a strong, sustainable option. Position the pump close to the tank outlet with a short suction line. Add a float switch or low-water cutoff to protect the pump, and fit a sediment filter. For garden use, many folks aim for 30–50 PSI at the hose or drip manifold to keep everything tidy and controlled.

Pond and Natural Source Considerations

Drawing from ponds requires extra care. Use an intake screen, place the intake well below the surface, and keep it away from muck and weeds. Check local regulations regarding backflow protection and drainage. Because water quality can vary, plan for more frequent filter maintenance. Oversize the suction line if runs are long, and use a foot valve to prevent the line from draining between cycles.

Noise, Placement, and Everyday Convenience

Let’s be honest—nobody loves a droning pump near the patio. Choose models with quiet operation claims, mount them on rubber isolation pads, and consider a ventilated enclosure to muffle sound. Place the pump where it’s easy to service—filters you can reach, valves you can label, gauges you can see at a glance. A few smart placement decisions make weekly use and yearly maintenance far easier.

Weather Protection and Longevity

Pumps live longer when they’re kept high and dry. Elevate them off the ground, shield from rain, and avoid puddling. UV-resistant covers prevent sun damage to plastics and wiring. If you’re near the coast, stainless or coated housings resist corrosion better than bare metal. Inspect mounting bolts and hose clamps seasonally; a five-minute check can add years to your system’s life.

Water Quality and Component Health

Hard water and sediment wear parts faster. A simple inline filter on the suction or discharge can protect impellers and emitters. In very hard water areas, occasional descaling helps keep performance crisp. If you notice strange odors or discoloration, flush lines and clean strainers. Your pump is only as healthy as the water it moves—keep it clean and it will reward you with smooth, steady pressure.

Cost, Value, and When to Upgrade

It’s tempting to choose the cheapest pump on the shelf, but value often lies in the middle: solid build, proven reliability, and just the right capacity. If your current setup constantly short cycles, struggles to hit pressure, or runs hot, it may be undersized—or simply at end-of-life. Upgrading to a better-matched model can cut energy use, reduce noise, and protect sprinklers, hoses, and fixtures from pressure swings.

Total Ownership vs Sticker Price

Consider electricity use, maintenance, and lifespan alongside the purchase price. A slightly pricier pump with efficient operation and easy-to-find parts can cost less over five years than a bargain model that burns more power and needs frequent repairs. Add in convenience—smart controls, quick access filters, clear gauges—and you’ll enjoy your system more while spending less time tinkering.

Timing Purchases with Seasonal Offers

Deals often pop up around the shoulder seasons—late winter and early fall—when many homeowners plan upgrades. Keep an eye on comparison listings for price drops, bundle deals with tanks or filters, and clearance on last year’s models. As long as the specs fit your needs, a previous-season pump can be a steal that delivers years of reliable service at a fraction of the cost.

Conclusion: Your Perfect Pump, Made Simple

Choosing a sprinkler, booster, or irrigation pump doesn’t have to be complicated. Decide what you’re trying to power, tally the GPM and PSI you need, and match a pump that hits those numbers at your total head. Add sensible accessories—filters, regulators, a check valve—and install with care. Whether you’re greening up a lawn, pampering vegetable beds, or fixing low water pressure indoors, the right pump turns frustration into flow, reliability, and lasting value.

Sprinkler, Booster & Irrigation System Pumps

Sprinkler, Booster & Irrigation System Pumps

Sealey Wpb062s Stainless Steel Booster Water Pump 240v

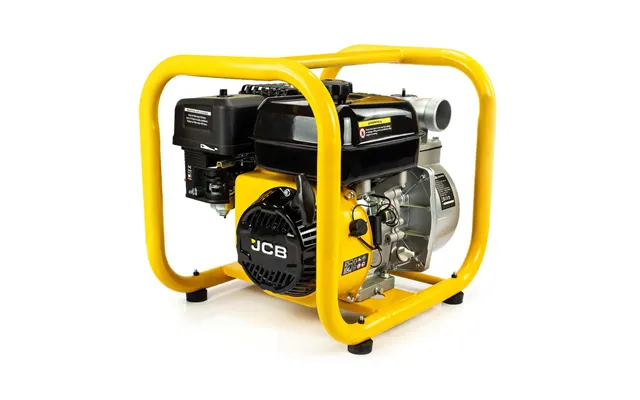

Jcb 50mm 2’’ Petrol Water Pump

Gardena 4000 1 Water Butt Or Tank Submersible Water Pump

Faithfull Pressure Sprayer Knapsack

Salamander Pumps Salamander Ct50xtra Showerboost 1.5 Bar Twin Shower Pump

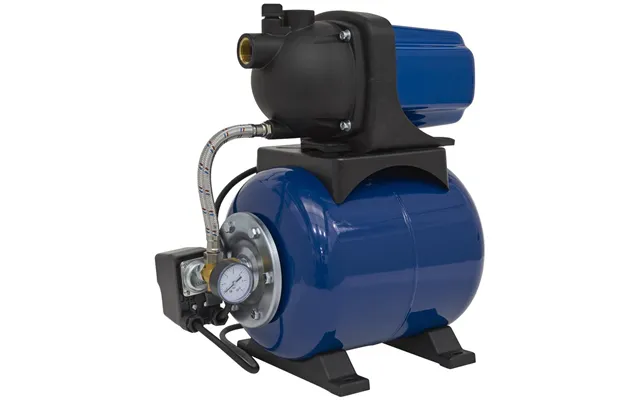

Sealey Wpb050 Booster Water Pump

Draper Expert Epdm Pump Sprayer

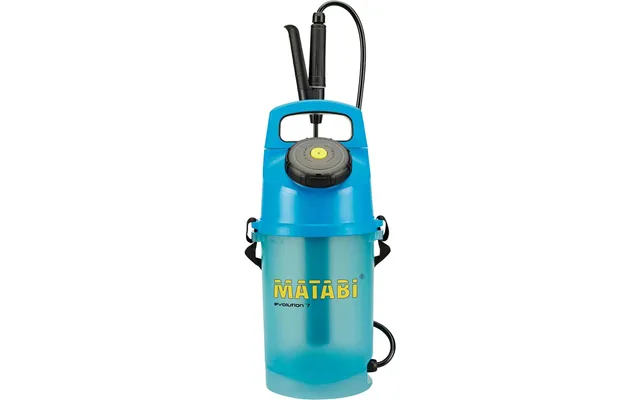

Matabi Evolution 7 Water Pressure Sprayer

Solo 202 Handheld Pressure Sprayer 2l

Einhell Ge-pp 18 Rb Li 18v Cordless Rain Barrel Pump 3000 L H

Ronseal Precision Pump Fence Sprayer

Gardena 2000 2 P4a 18v Cordless Rainwater Submersible Water Butt Tank Pump

Gardena 2000 2 P4a 18v Cordless Rainwater Submersible Water Butt Tank Pump

Vevor Air-operated Double Diaphragm Pump - 1 2 In Inlet & Outlet

Vevor Industrial Concrete Sprayer - 3.5 Gallon Stainless Steel Sprayer

Vevor Industrial Concrete Sprayer With Wheeled Cart - 3.5 Gallon Stainless Steel Sprayer

Kit Pump Connection-25m Forf2630

Mc450 Oxy Pump For Gt Nft Systems

Stans Tubeless Sealant Injector

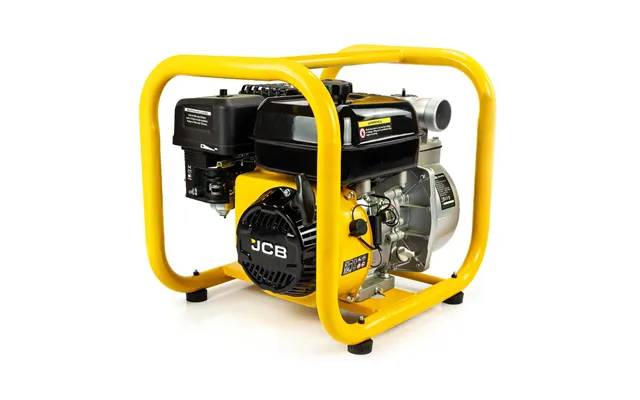

Jcb 50mm 2’’ Petrol Water Pump
