Circuit prototyping is where ideas meet reality. It’s the process of taking a concept—say, a smart sensor or a simple LED controller—and building a working version you can test, tweak, and improve. Whether you’re a hobbyist, a student, or a professional engineer, prototyping lets you spot design flaws early, experiment safely, and validate your design before investing in a full production run. The best part? You don’t need a lab to get started—just smart choices in tools, boards, and components.
Solderless prototyping (using breadboards and jumper wires) is fast, forgiving, and perfect for early-stage experiments. You can move parts around in seconds and iterate like crazy. Soldered prototyping (perfboard, stripboard, or custom protoboards) brings durability and better electrical performance once your design stabilizes. In short: experiment on a breadboard, then lock it down on stripboard or a custom PCB when you’re happy. That’s the rhythm most makers follow.
At the heart of circuit prototyping are the staples: breadboards, jumper wires, perfboard or stripboard, headers, microcontroller boards, power supplies, and test gear. You’ll also want soldering tools, connectors, and small parts like resistors and capacitors. Price-savvy buyers often compare deals across UK comparison platforms to get lower prices on kits, meters, and bulk consumables. A little research can shave a surprising amount off your bill.
Solderless breadboards are the gateway to quick builds. Look for boards with solid spring contacts and a standard 0.1 in pitch, which matches most DIP ICs and header pins. A mid-sized breadboard with around 400–830 tie points is ideal for most learning projects. Pair it with pre-cut jumper wires (commonly 6 in to 8 in) and a few flexible male-to-female leads for modules. For power distribution, rails along the edges are a huge convenience—but double-check the labeling; sometimes rails aren’t internally connected end-to-end. For wire, 22 AWG solid core is the sweet spot on most breadboards.
When you’re done tinkering on a breadboard, you’ll likely move to perfboard (individual holes) or stripboard (copper strips connecting holes in rows). Both typically use a 0.1 in grid and hole diameters around 0.04 in. Perfboard gives ultimate freedom; stripboard helps with clean power buses and tidy layouts. Score and snap what you need, or cut it carefully. A tip: add IC sockets for DIP chips so you can replace parts without touching a soldering iron again. And always mark signal paths with a permanent pen to keep future you out of trouble.

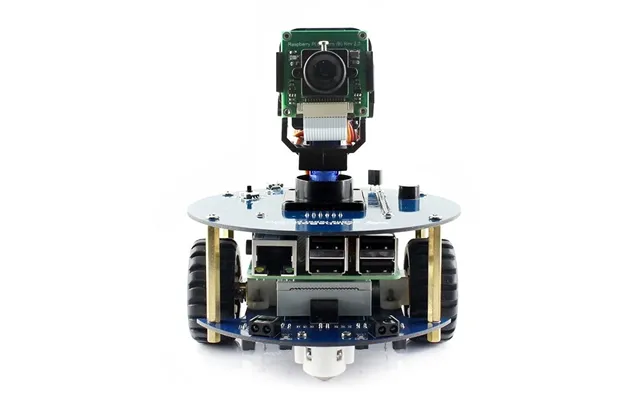

Chances are your prototype will feature a microcontroller platform. Popular choices include Arduino Uno-compatible boards, ESP32 dev kits for Wi‑Fi and Bluetooth, and small form-factor boards that break out pins on 0.1 in headers. Look for genuine or well-reviewed compatible boards with stable regulators, clear pin labeling, and good USB connectors. Companion modules—like OLED displays, I2C sensors, and relay boards—often plug straight into 0.1 in headers or connect via Dupont leads. That standard spacing makes rapid integration a breeze.

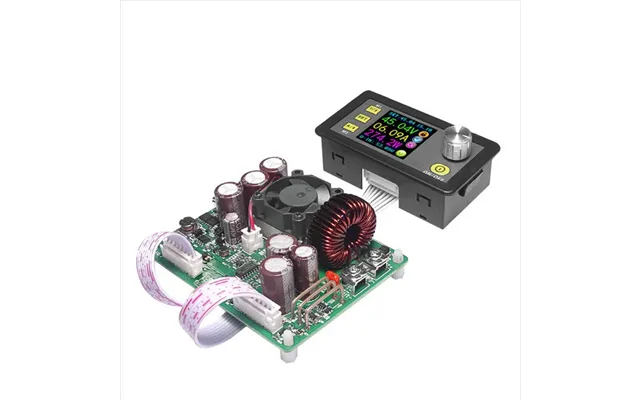

Power is where many prototypes sink or swim. A compact bench supply lets you dial in voltage and current limits so you can catch shorts before smoke happens. For portable builds, a 9V battery clip or a pack of AA cells with a DC-DC buck converter can be perfect. Many breadboard-specific power modules drop onto the rails and provide regulated 5V and 3.3V from a barrel jack or USB input. Keep wiring short, double-check polarity, and consider separate grounds for noisy sections like motors or LEDs if you run into glitchy behavior.
You don’t need a lab-grade setup to prototype effectively—but a few essentials pay for themselves. A trustworthy multimeter, a logic analyzer for digital signals, and a basic oscilloscope for analog work can transform debugging from guesswork into detective work. Think of measurement gear as your project’s lie detector: it tells you what’s really happening versus what you wish were happening.
A digital multimeter (DMM) is non-negotiable. Get one with reliable continuity beep, auto-ranging, and decent accuracy. You’ll use it to check supply rails, verify resistor values, test diodes, and hunt for broken traces. Pro tip: use silicone leads with needle tips for tight breadboard spaces, and keep a spare 9V battery handy. If you plan to work with higher currents, look for a model with robust fuses and clear current rating labels on the input jacks to avoid “pop and regret.”
When voltages dance and timing matters, you need visualization. A compact oscilloscope helps you spot ripple, ringing, and analog weirdness on power rails or amplifier stages. Logic analyzers excel with digital buses (I2C, SPI, UART) and can decode traffic so you can verify your protocol setup in seconds. USB logic analyzers are inexpensive, portable, and surprisingly capable for microcontroller projects. If you’re mixing analog sensors and digital control, having both tools—even budget versions—will save hours.
Once your breadboard proves the concept, you’ll solder it for durability. A quality soldering iron, the right consumables, and a few safety habits make soldering smooth instead of stressful. You don’t need to spend a fortune, but reliable temperature control and good tips are game changers.
Choose a temperature-controlled iron in the 15–60 W range depending on your typical joints. For through-hole prototyping, a fine conical or small chisel tip offers precision and heat transfer. Aim for a tip temperature around 600–700°F with leaded 60/40 or 63/37 solder for easy flow. For general work, 0.031 in diameter solder hits the sweet spot between control and speed. Keep tips tinned, wipe with a damp sponge or brass wool, and re-tin before cooling to extend tip life.
Flux is your invisible helper; a tiny dab can rescue a joint that just won’t wet. Solder wick and a spring-loaded pump are your go-to tools for rework. A tip cleaner, a stand with a solid base, and a set of “helping hands” or a PCB holder make delicate tasks feel far less fiddly. Keep isopropyl alcohol and a soft brush on standby to clean flux residue—your boards will look and behave better. And yes, eye protection is non-negotiable; solder can spit.
Your prototype isn’t just about signals; it’s about connections and protection. Using the right headers and housings keeps everything modular and serviceable. And once your circuit behaves, a simple enclosure takes it from fragile to field-ready in minutes.

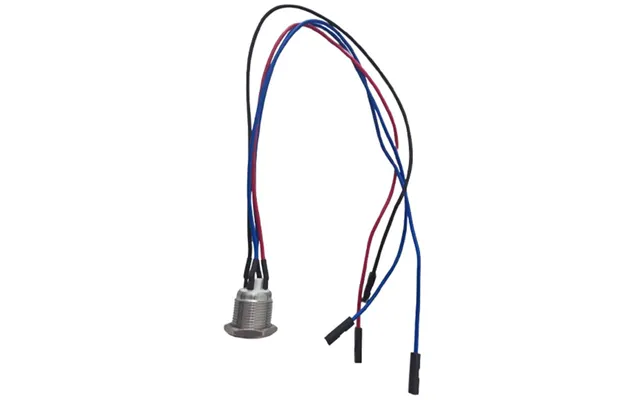

Standard 0.1 in pin headers are the backbone of modular builds. Stock both straight and right-angle variants, plus breakaway strips you can trim. Pair them with Dupont-style crimp housings for neat, pluggable harnesses, and use keyed housings to avoid reversed connections. For higher-current or semi-permanent connections, screw terminal blocks add reliable grip and strain relief. Label everything—it’s amazing how quickly unlabeled wires turn into a mystery novel.
Even a simple plastic enclosure can protect your work from knocks, dust, and accidental shorts. Use metal standoffs to mount boards cleanly; common sizes like 1/4 in and 3/8 in are ideal for spacing above a base plate. If you’re using a perfboard that doesn’t have mounting holes, leave corner space to drill cleanly. Consider grommets where cables pass through holes to prevent abrasion, and add a stick-on label with power specs and pinouts for future you.
Prototypes don’t have to be fragile. With a few smart habits, you’ll dodge the classic pitfalls—overheating, noise, and spooky intermittent faults. Treat safety and reliability as features, not afterthoughts, and your projects will feel pro from day one.
Use the right wire for the job. For breadboards and signal lines, 22 AWG solid core is perfect. For higher current—say, driving LEDs or motors—step up to thicker wire like 20 AWG or add parallel runs to reduce voltage drop. Keep power traces short and beefy. If components feel hot to the touch, measure current and power dissipation, and consider heatsinks or airflow. A quick sanity check: if you wouldn’t sandwich that regulator between your fingers at 140°F, it needs help.
Static-sensitive parts like MOSFETs and microcontrollers appreciate gentleness. An anti-static wrist strap, anti-static mat, and proper handling of ICs by the edges can prevent invisible damage that surfaces later. Keep components in anti-static bags and avoid shuffling them across carpets. It’s an easy habit that saves headaches, especially when debugging “it worked yesterday” mysteries.
Not all kits are created equal. Some pile on flashy modules you’ll never use; others nail the essentials. The trick is to align your purchase with what you actually plan to build in the next couple of months. Here’s how to zero in on the right bundle.
A solid starter kit should include a mid-size breadboard (around 400 tie points or more), 6 in jumper wires, a handful of LEDs and resistors, a button or two, and a microcontroller board with pre-soldered 0.1 in headers. A small assortment of sensors (temperature, light) and a buzzer lets you explore input/output basics. Add a simple USB logic probe or a very basic logic analyzer if your budget allows—it demystifies digital signals and shortens the learning curve dramatically.
If you’re past blinking LEDs, invest in capability boosters: a dependable adjustable bench supply, a USB logic analyzer, and a compact oscilloscope. Grab assorted perfboard and stripboard, a range of pin headers, Dupont crimp tools, and enclosures. Consider a hot-air rework station if you plan to experiment with SMD parts. Buy solder in bulk (0.031 in diameter is versatile) and keep multiple tip shapes on hand so you can switch from fine IC pins to chunky connectors without fighting your tools.
Prices on prototyping gear can vary widely depending on brand, bundle size, and timing. Comparison platforms in the UK, such as ZoneOffer, make it easy to line up deals on breadboards, meters, soldering stations, and complete kits without bouncing between dozens of sites manually. Look beyond the headline price—factor in shipping, warranty, and what’s actually in the box.
Seasonal sales, student promotions, and clearance bundles can deliver excellent value. Multipacks of headers, jumpers, heat-shrink assortments, and resistors cost far less per piece. If you prototype often, buying consumables in bulk saves both money and mid-project frustration. Track price history where possible, and don’t be shy about snagging two of something you use constantly—like 22 AWG wire kits—when the price is right.
Ignore marketing sizzle and focus on the spec sheet. For power modules, current rating and ripple matter more than fancy casing. For irons, temperature stability beats flashy displays. For breadboards, internal spring quality is everything—cheap boards can cause ghost faults. Read reviews, watch teardown videos if available, and prioritize build quality where reliability counts: power, soldering, and measurement tools.
Every prototype throws a tantrum at some point. The difference between an hour-long fix and a week of hair-pulling is a structured approach. Isolate, measure, and change one thing at a time. Here are common headaches—and how to send them packing.
Symptom: LEDs flicker, microcontrollers reset randomly. Check supply rails with a DMM, then look at startup current. Add a bulk capacitor near the microcontroller, keep power jumps short, and confirm your breadboard rails are really connected from end to end. If a 9V battery sags under load, switch to AA cells or a bench supply. Set current limit so you catch shorts without collateral damage.
Analog sensors acting jittery? Separate analog and digital grounds where possible and keep high-current paths away from sensitive lines. Twist signal pairs for long runs and add small decoupling capacitors right at IC power pins. Use the oscilloscope to hunt down ripple and ringing—you can’t fix what you can’t see. Shielding or even a grounded foil wrap around a sensor line can tame stubborn interference.
If a circuit “works when I poke it,” you might be fighting weak contacts or loose wires. Use 22 AWG solid core, insert wires straight, and avoid repeatedly flexing the same holes. Try a different breadboard or move the circuit to fresh rows. For parts that wiggle, add a tiny dab of removable putty to stabilize them. Once a design stabilizes, migrate to stripboard to lock down connections.
Moving from a one-off prototype to a short run doesn’t have to be intimidating. The trick is to capture what worked, fix what didn’t, and document everything so your next build is repeatable and maintainable. You’ll thank yourself later.
When you’re ready, translate your stripboard layout into a PCB design with proper trace widths, ground planes, and mounting holes. Stick to 0.1 in headers where modularity helps, and include test pads on key nets. Reserve space for fuses, TVS diodes, or reverse-polarity protection if your device will see the real world. One prototype on perfboard can teach you ten lessons you’ll bake into a rock-solid PCB.
Create a quick test checklist: power-up steps, expected current draw, key signal voltages, and pass/fail criteria. Version your firmware and keep a parts list with replacement sources. Label connectors, include a wiring diagram, and note calibration steps. Good documentation turns a clever one-off into a reliable product that future you—or a teammate—can reproduce without guesswork.
Circuit prototyping is equal parts creativity and craft. With the right mix of breadboards, stripboard, microcontroller boards, solid measurement tools, and dependable soldering gear, you can move from idea to working hardware fast—and do it without overspending. Focus on essentials, compare prices smartly, and choose quality where it matters most: power, solder joints, and measurements. Build iteratively, document as you go, and treat safety and reliability as features from day one. Do that, and your prototypes won’t just work—they’ll be a joy to build, test, and evolve.
